Description

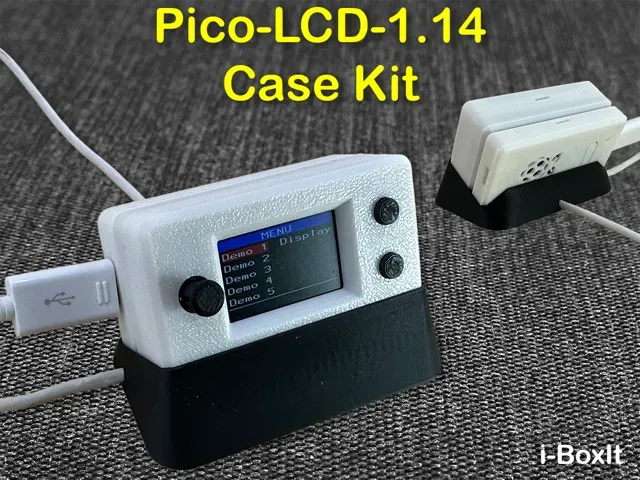

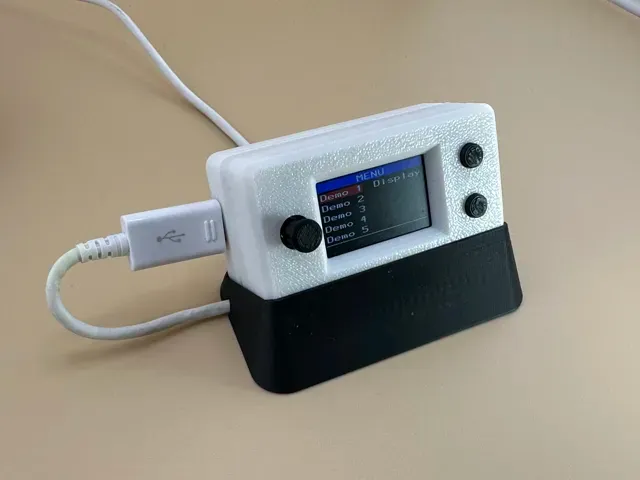

Waveshare Pico-LCD-1.14 Case for Raspberry Pi Pico

This is my custom-designed enclosure for the Waveshare Pico-LCD-1.14 , made to fit perfectly with the Raspberry Pi Pico. It's compact, functional, and completely snap-fit—no screws, no glue, no fuss.

🔧 Features:

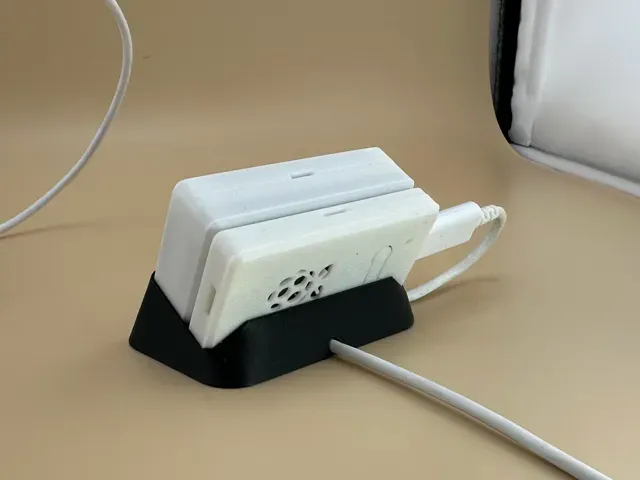

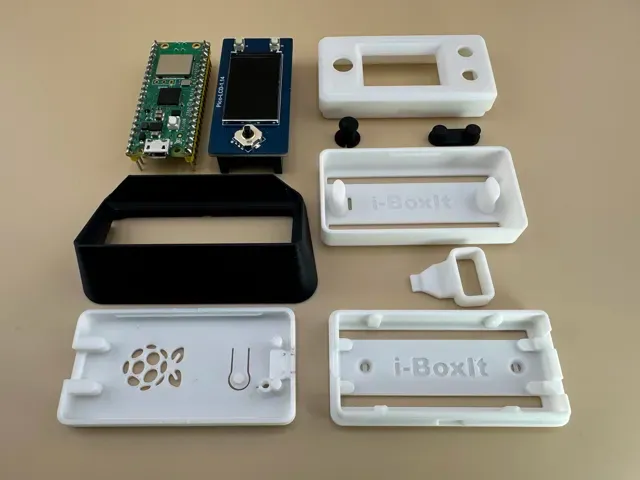

- Snap-fit assembly – easy to build, no tools required - Integrated stand – tilt it for better viewing angles - Access to BOOTSEL button – via built-in button actuator - Tube for user LED visibility – directs light to the outside - Cooling grille – helps with airflow and temperature control - Easy-open design – pop it open when needed - Cable mount – secure routing for USB/power cables - Dedicated LCD enclosure – protects and frames the screen - LCD button access – buttons remain usable through the case 💻 Software Support:

- Written with MicroPython - Using LCD driver libraries 🖨️ Print Settings:

- Nozzle: 0.4 mm - Layer height: 0.16 mm (optimal) - Supports: Not required

Guides and print profiles

Print profiles and steps

0.16mm layer, 2 walls, 15% infill
