OnePlus AIRVOOC Mount for Audi A5/A4 (2016-2024)

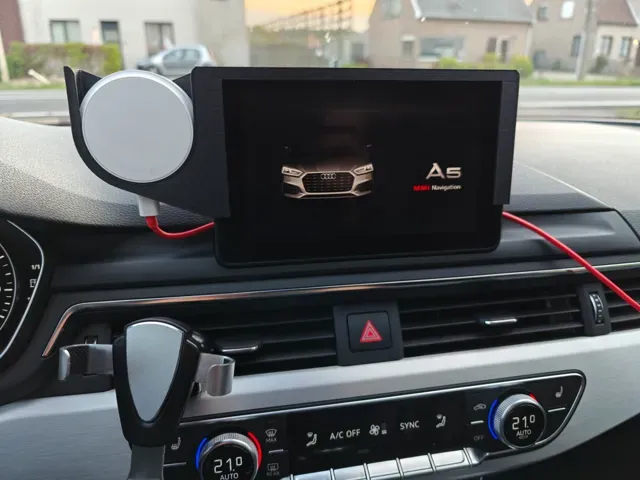

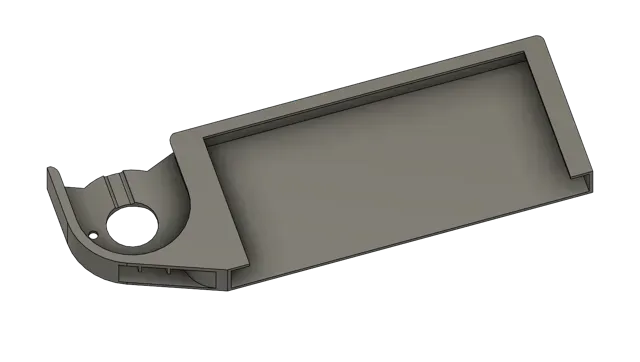

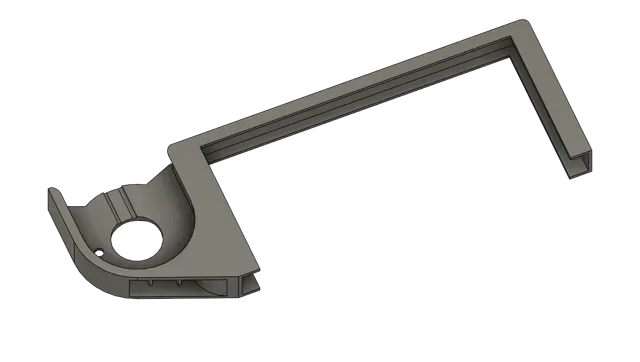

This custom-designed wireless charger mount is perfect for Audi A5 and A4 models from 2016 to 2024. It is compatible with the OnePlus AIRVOOC 50W Magnetic Charger , making it ideal for OnePlus 12 and 13 phones with MagSafe ring covers. The mount fits snugly over the center console screen, providing a secure hold thanks to the AIRVOOC's strong magnet. It features cutouts for the charger's fans and on/off light, and allows the phone to be used as a dashcam. Designed for left-hand drive cars, it can be inverted for right-hand drive vehicles. I used these settings: 0.4mm nozzle, 0.2mm layers, supports and PETG material for better heat resistance and color retention.

Summary:

- Design: A wireless charger mount for Audi A5 and A4 2016 to 2024 models, compatible with the OnePlus AIRVOOC 50W Magnetic Charger. - Compatibility: Designed for left-hand drive cars but can be inverted for right-hand drive cars (note: on/off light visibility will be affected). - Features: Cutouts for the AIRVOOC's fans and on/off light, allows the phone to be used as a dashcam. Compatible Chargers:

- OnePlus AIRVOOC 50W Magnetic Charger: Compatible with OnePlus 12 (R) and 13 (R). - OnePlus SUPERVOOC 80W Car Charger: Recommended for optimal use. - MagSafe and Qi2 Compatible phones: Supports all phones with MagSafe and Qi2 compatibility, including iPhone models. Compatible Audi Models:

- Audi A5 (2016-2024, second generation): The design fits over the center console screen. - Audi A4 (2016-2024, second generation): Similar center console screen design. - Other Models: Any Audi models with similar MMI display systems like the Audi B8 and B9 (e.g. A4, S4, RS4, A5, S5, RS5, ...) Assumptions:

- Phone Compatibility: Designed for OnePlus 12 with a compatible MagSafe ring cover. Assumed to work with other phones that have a MagSafe ring. The phone is held securely by the AIRVOOC's strong magnet, but use is at your own risk. - Audi Compatibility: Compatible with my 2017 Audi A5 , but assumed to be compatible with Audi A5 and A4 second generation (2016-2024), including models F5, B8, and B9 like A4, S4, RS4, A5, S5, RS5, ... Printing Instructions:

- Nozzle Size: 0.4mm - Layer Height: 0.2mm - Material: PLA, but recommended to use PETG for better heat resistance and color retention under direct sunlight. - Orientation: Print upside down, potentially diagonal to fit smaller build plates. - Supports: Yes.
