Adjustable CNC Clamp M6 Bolt Hole for Genmitsu4040

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
3MFSTL
  • 22 Likes
  • 118 Downloads
  • 85 Makes
  • 103 Collected
  • 1 Boosts
  • 5 Comments
  • 0 Views

Author:Tbean2015

Published

Download on MakerWorld

Description

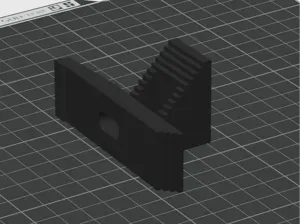

Adjustable clamp designed for Sainsmart/Genmitsu 4040 pro max CNC router. Will work with any CNC that uses M6 threaded clamps. 10mm thickness with textured edge for gripping. Can be adjusted using the slot built into the clamp and tightening the bolt when in the desired position. Recommended to use at least one clamp on each side.

Guides and print profiles

Print profiles and steps

0.2mm layer, 2 walls, 15% infill Prints in one piece, no supports, honeycomb infill 15%.

Tags

cncclampbracketbracem6adjustablemachineholdersainsmart 4040 pro cncsainsmartrouter
