Description

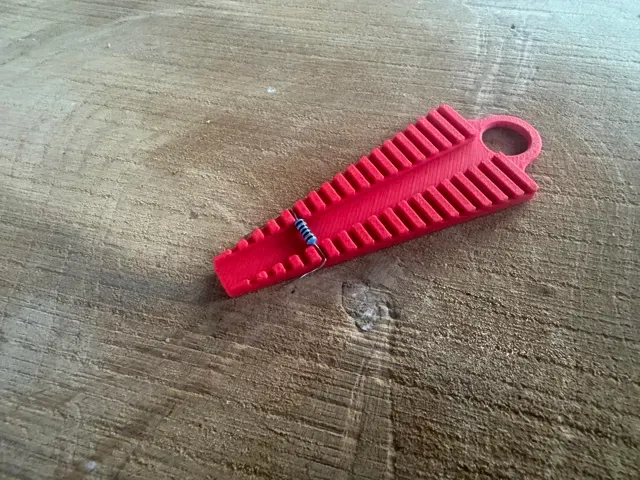

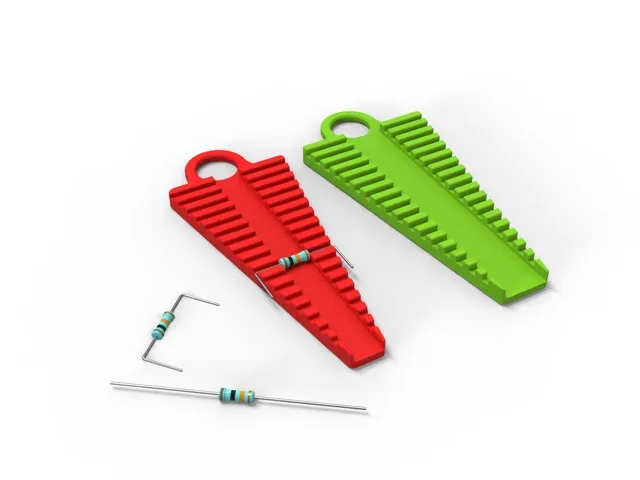

A handy resistor lead bending tool designed for quick and accurate forming of through-hole resistor legs.

🔧 Includes:

- A 6.3 mm spacing slot – ideal for standard 1/4W Arduino resistors - A 10 cm gap – useful for larger power resistors or custom spacing Perfect for electronics hobbyists, Arduino builders, and makers looking for clean, repeatable resistor bends without measuring each time.

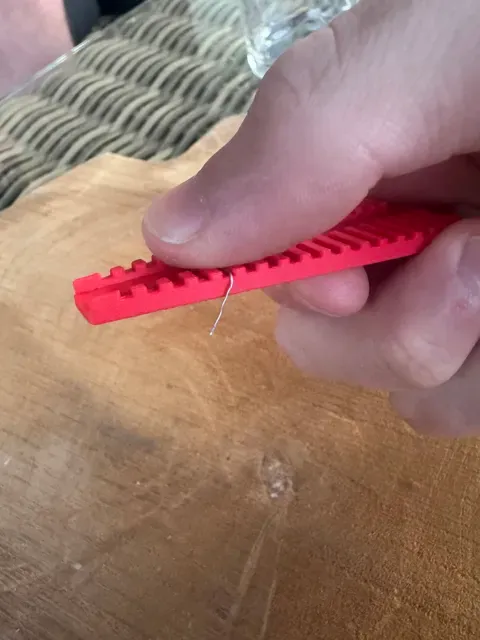

Simply insert the resistor, bend the leads over the edge, and you're done!

Boost Me Love this design? Show it some love with a boost, share it with your fellow makers, or drop a quick review! Every bit of support helps me keep creating and sharing more 3D-printing magic. Let’s keep the creativity rolling!

Guides and print profiles

Print profiles and steps

6.3 cm gap (arduino resistors) 0.2mm layer, 2 walls, 15% infill

10 cm gap 0.2mm layer, 2 walls, 15% infill
