Car Race Track Clamp V2

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
3MF
  • 531 Likes
  • 1 596 Downloads
  • 1 553 Makes
  • 2 274 Collected
  • 48 Boosts
  • 152 Comments
  • 0 Views

Author:EngWorks

Published

Download on MakerWorld

Description

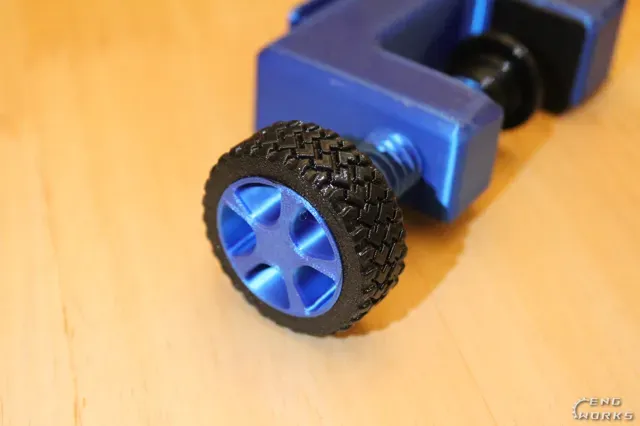

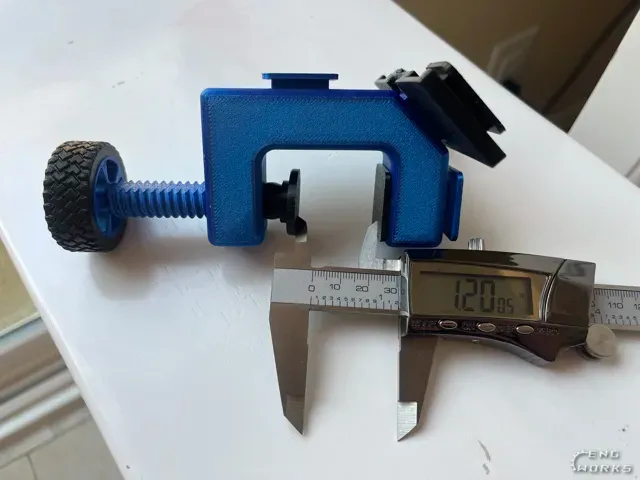

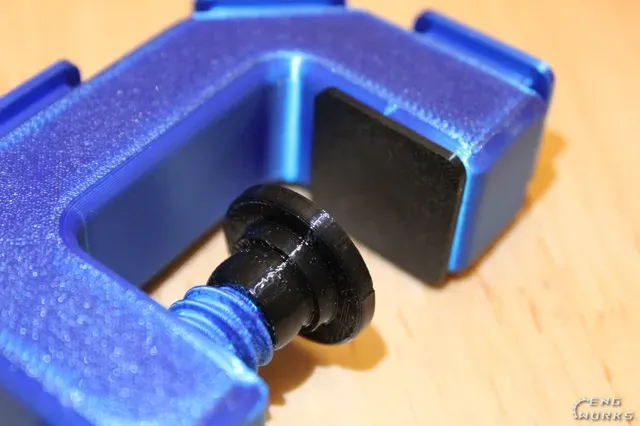

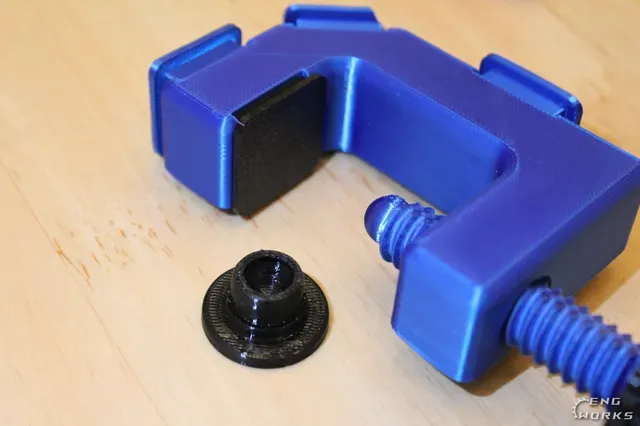

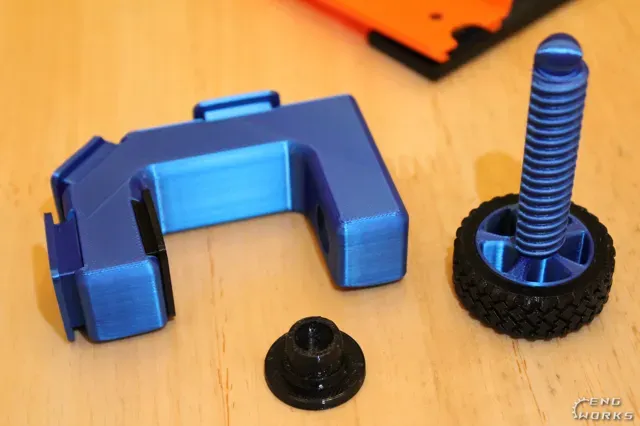

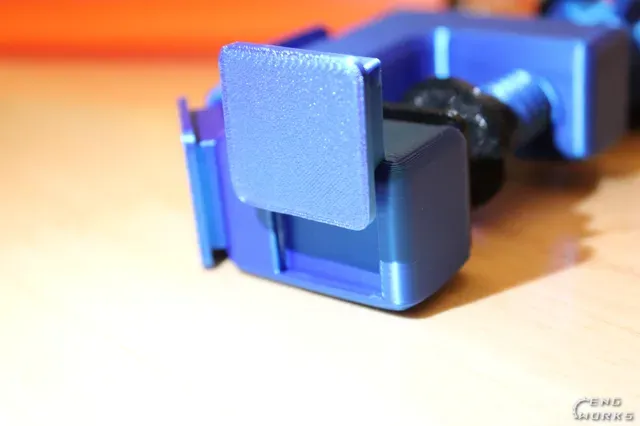

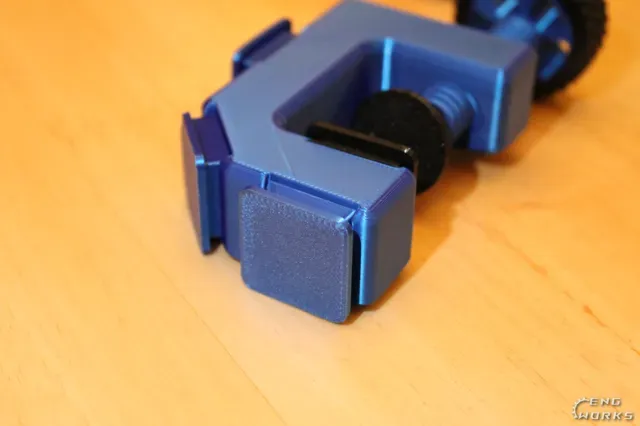

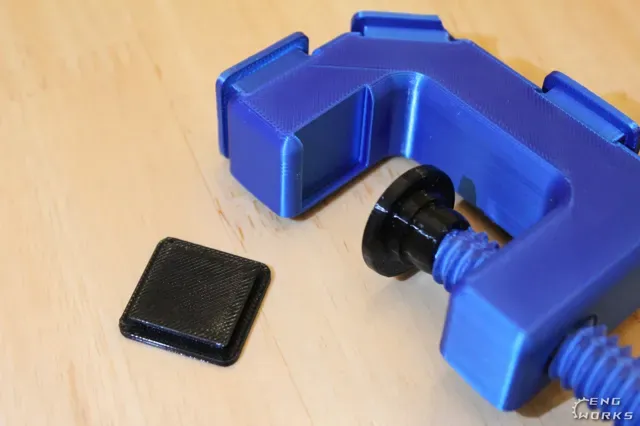

This is version 2 of my previous track clamp design. It is slightly more compact, so it may not extend to the width of very thick surfaces (30mm or 1.2 inches). I thought it would be cool to make the clamp wheel out of TPU and designed like a tire. I thought this was a unique way of integrating in more car designs into the clamp. Also, the screw cap and dovetail are TPU which gives a better grip when clamping. Another little hidden feature is that the clamp is slightly angled together to reduce the outward bowing of the screw when tightening it down.

Check out some of my other car track designs:

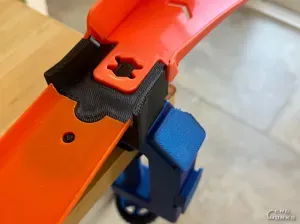

Speed Snap to E-track adapters (TPU)

Speed Snap to E-track adapters (PLA)

Guides and print profiles

Print profiles and steps

PLA Only - Single Plate Combines the wheel and the tire into one piece and prints all parts on one plate.

PLA and TPU - 2 plates

PLA - Separate plates All components separated onto separate plates to allow for easy color customization.

Longer Clamp/Screw (55mm max) - Separate Plates This is a version with a 25mm (1 inch) longer clamp and screw, with an overall clamping length of 55mm. It has separate plates for all pieces, as well as a single plate with all parts.

Smaller diameter screw Smaller diameter by 0.2mm if the original screw is too tight.
