X1/P1 Front Power Switch Extender - V2 with lock

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
STL
  • 4 244 Likes
  • 6 710 Downloads
  • 5 326 Makes
  • 9 735 Collected
  • 1 077 Boosts
  • 1 605 Comments
  • 0 Views

Author:jakadels

Published

Download on MakerWorld

Description

This is X1/P1 version, other models also available:

Tired of reaching around your printer just to turn it ON or OFF?

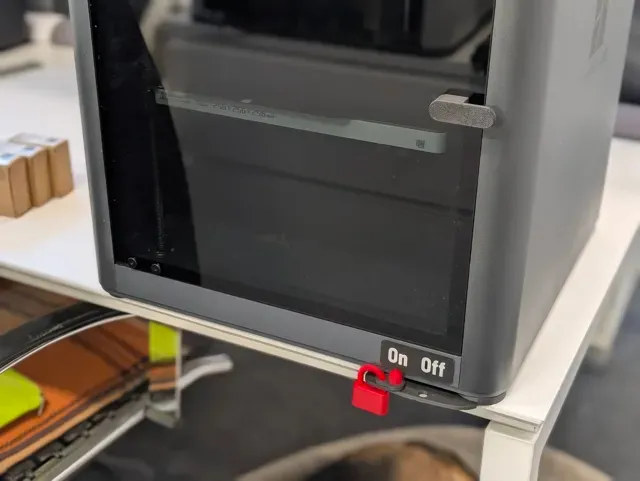

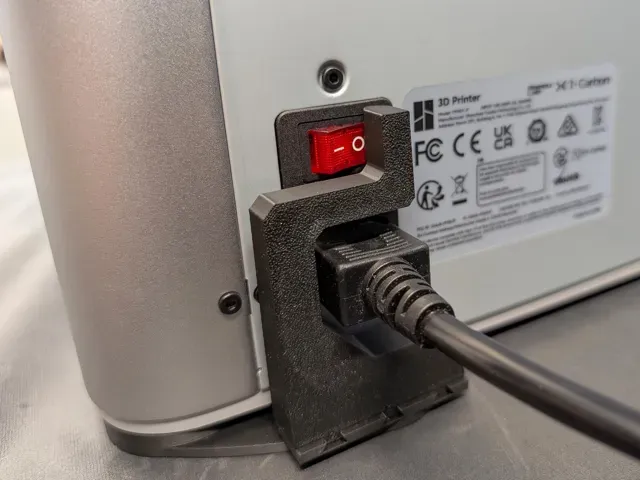

This simple but effective mod brings the power switch to the front of your X1 or P1 series printer.

No more awkward stretching, no wasted space, just slide it under your printer and use!

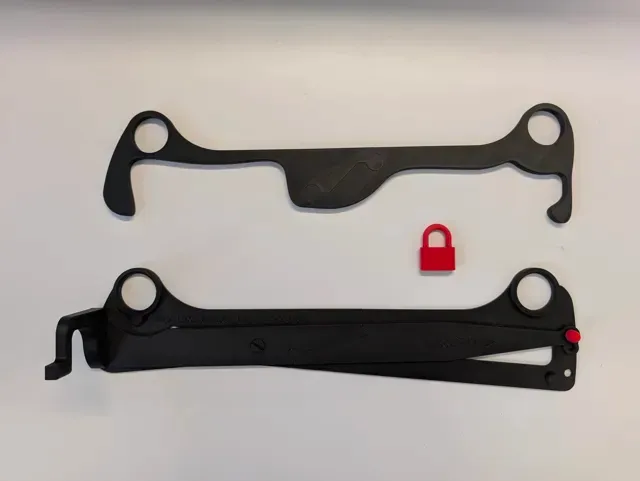

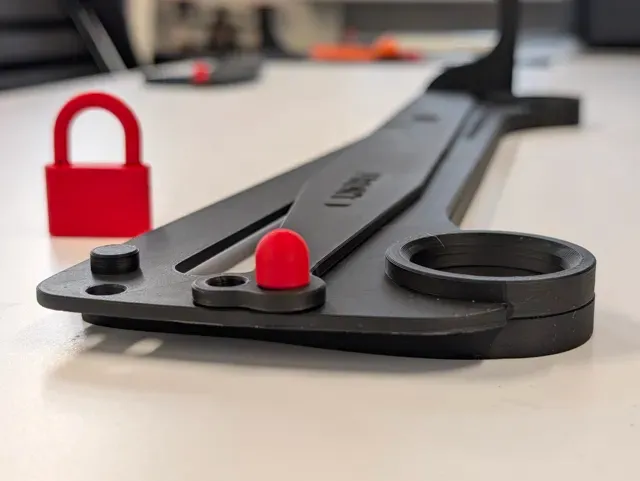

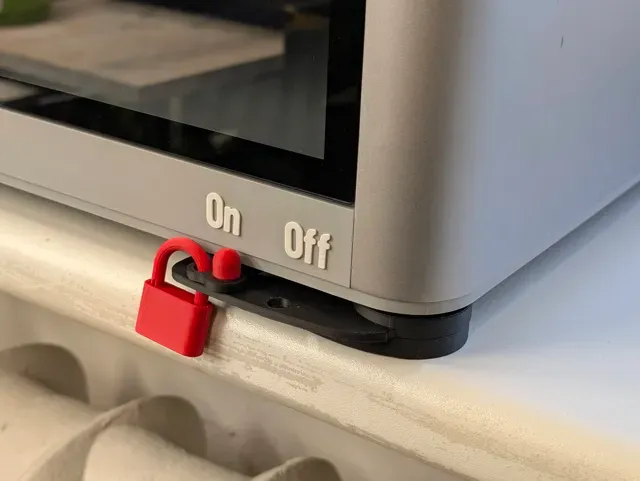

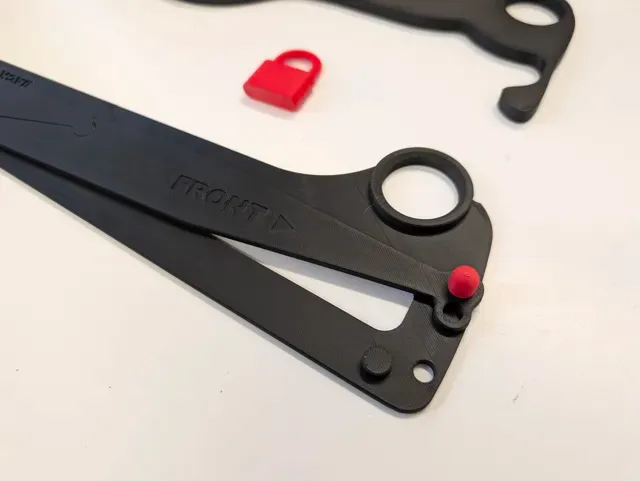

This is upgraded V2 version with added lock and riser, front bump also have bigger and stronger thread.

Any Material – PLA, PETG, ABS… works with whatever filament you have, because there is no big forces on it. (set standard 0.2mm profile and change 5 walls and 5 top/bottom shells and 25% triangle infill)

No Extra Parts or tools needed – no screws or any other hardware needed (in some cases you need superglue)

Easy Installation – just lift the right side of your printer slightly and slide it under

Space-Saving – no extra clearance needed at the sides or back

Hot-Swap Ready – can be installed even while the power cord is plugged in and printer is on.

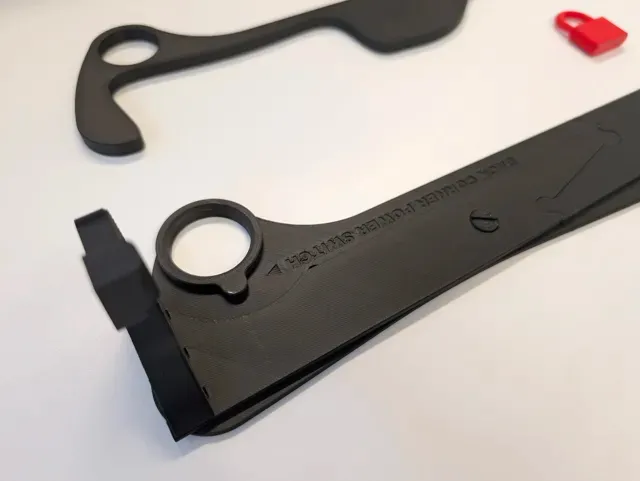

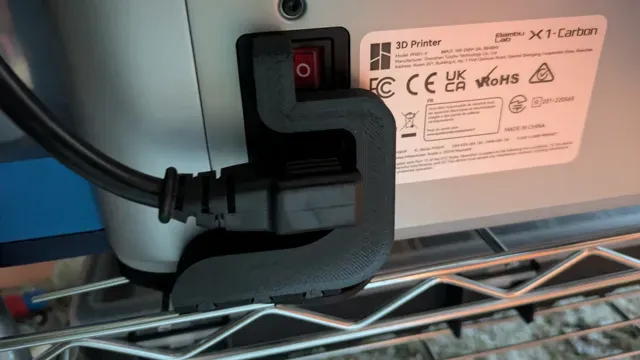

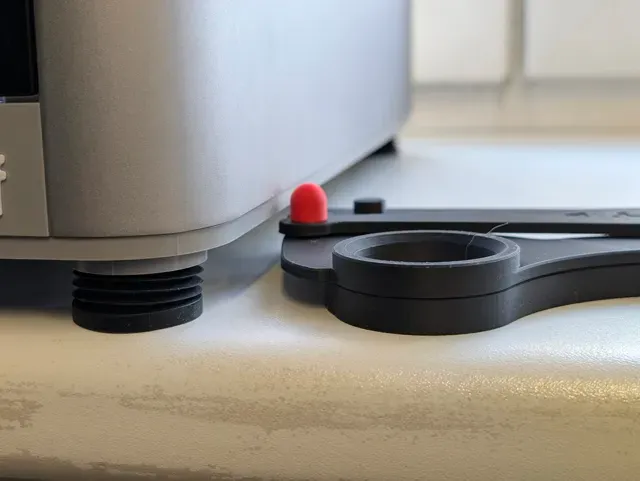

Included Riser for Bambu Anti Vibration feet. (if your feet is lower you can just change vertical size for riser). 2 different switcher parts, choose the Left one if you have a 90° AC cord.

With this extender, you’ll always have fast and convenient access to your power switch — without changing your setup or disassembling  your printer. Additionally, if you want, you can print button from other color, and print ON/OFF letters.

Here is assembly video (sorry from V1 version without lock)

Guides and print profiles

Print profiles and steps

0.2mm, 4 walls, 5 top/bottom shells, 25% triangle infill Use standard 0.2mm settings, just change to 4 walls,  5 top/bottom shells and 25% triangle infill. 1st plate for single color complete set. 2nd plate for On Off letters or other color front Button bump.

3rd plate for Anti vibration feet riser (change vertical size if your printer is lower than 17mm)

4th plate - left side switcher part for 90° power cords

0.6mm Nozzle, 0.3mm Layer, 3 Walls, 15% Infill 0.6mm Nozzle Diameter

0.3mm Layer Height

3 Walls

15% Grid Infill

WILL print in the extrusion calibration region, but it printed just fine.

Lower main base for the weight of AMS on printer When you have the AMS placed on the printer the weight will reduce the clearence between table and printer so the profile is to large. Had to reduce the height off the main bottom so the printer isn't resting om the main plate and therefore the vibration feet doesn't work as they should. Complete assembly in this model from the maker.

problems being able to screw the two front peace's together I had problems not being able to screw these two front peace's together after trying to print it several times so I created a single peace combining the two you can choose to still have it double colour or as single colour they are both on separate plates :)

My print profile is set ready to print :)

A RATING OF MY PRINT PROFILE WOULD BE MUCH APPRECIATED :)

0.2mm layer, 2 walls, 15% infill 4 Farben, Oberflächendruck angepasst
