Milwaukee M18 Battery adapter with connector

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
3MFSTL
  • 166 Likes
  • 722 Downloads
  • 484 Makes
  • 577 Collected
  • 1 Boosts
  • 32 Comments
  • 0 Views

Author:tecany3d

Published

Download on MakerWorld

Description

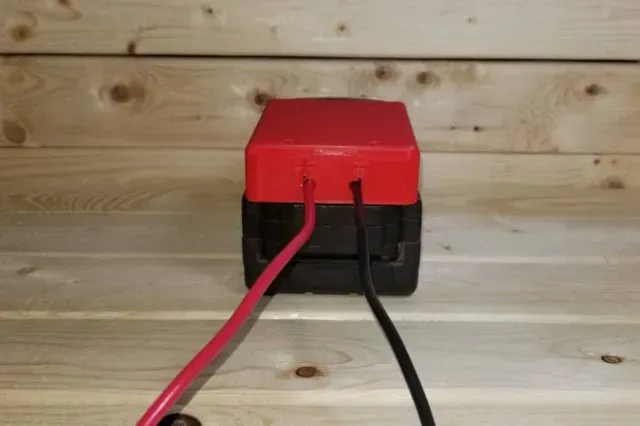

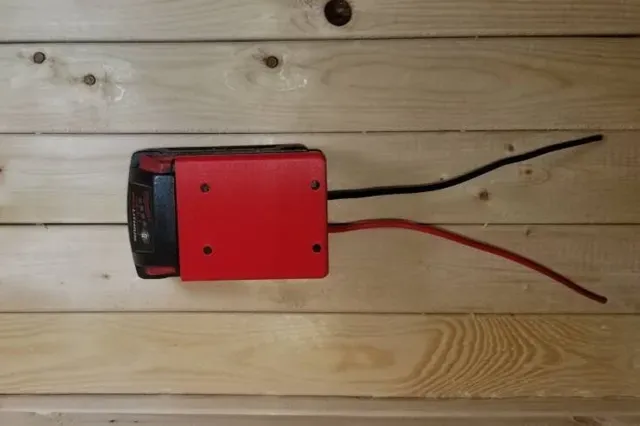

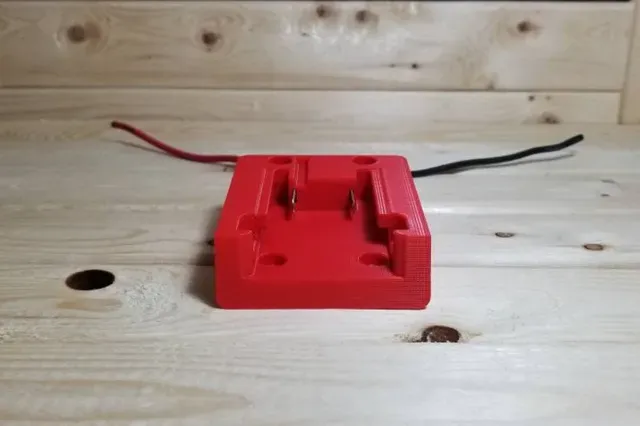

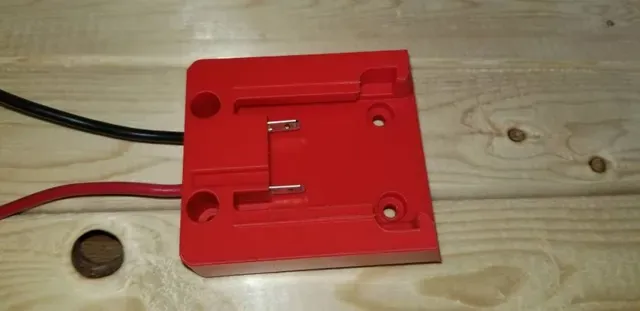

This 3d printed Milwaukee m18 is a battery adapter that you can connect to anything you want. Most of the one I've made were for to be use in a powerwheel kid cars.

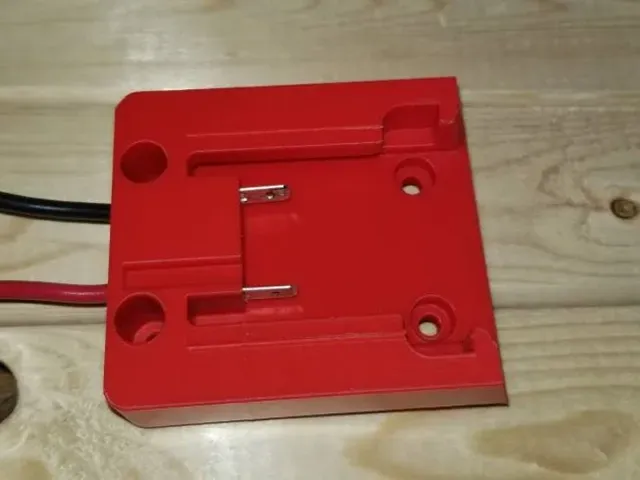

The hole are made to be used with 12 AWG (76822.R8.03 and 76822.R8.01) and the connector 1599052-1-SI-ND CONN QC TAB 10-12AWG 0.250 CRIMP from digikey

3D printing settings

I've used these with : 4 Wall 20% infill Support for the connector holes and the clip. Printed it with the + and - to be on the bed.

Guides and print profiles

Print profiles and steps

0.2mm layer, 4 walls, 20% infill 4 Wall 20% infill Support for the connector holes and the clip. Printed it with the + and - to be on the bed.

Tags

milwaukeem1818vbatteryadapter
