Dewalt Miter Saw Locking Mechanism

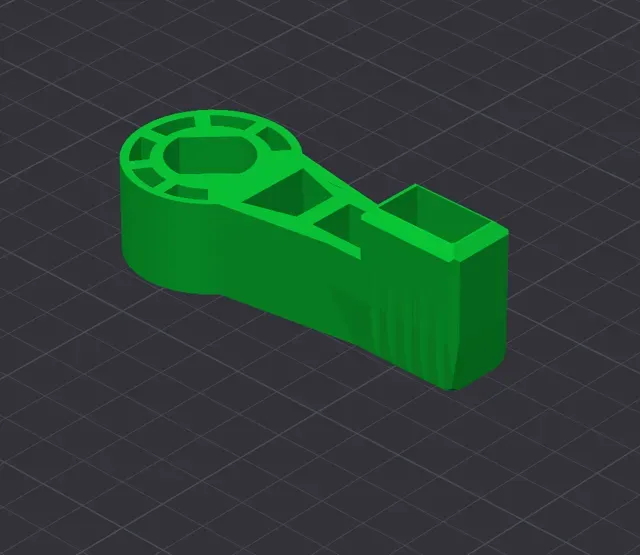

Dewalt Miter Saw Locking Mechanism — Image 2 of 2
3D model · MakerWorld

Dewalt Miter Saw Locking Mechanism

Model details

Platform
MakerWorld
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
3MFSTL
  • 19 Likes
  • 27 Downloads
  • 15 Makes
  • 62 Collected
  • 0 Boosts
  • 0 Comments
  • 0 Views

Author:ArneC

Published

Download on MakerWorld

Description

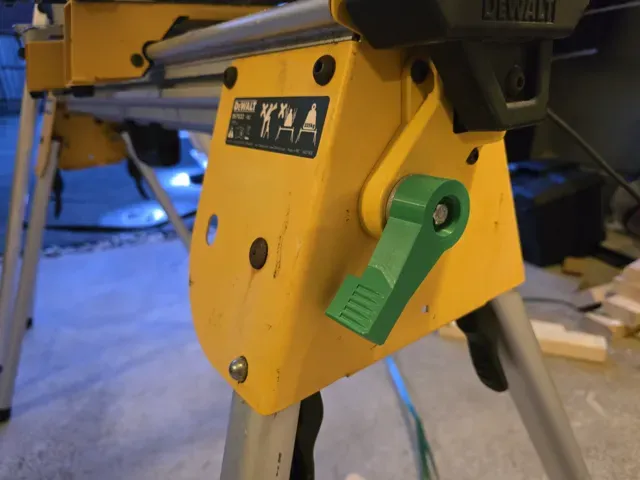

Replacement part for the locking mechanism for the legs for Dewalt Miter Saw. I have made these for the model DE7033, but from the looks on Dewalt's pages it looks like it will fit multiple other models.

I printed in Bambu Lab PETG, and with 100% infill. The infill is because it's supposed to grab onto a very small part. Without infill I think it could break it. This is made to replicate the injected molded part.

It needs a little bit of support, especially if printed with PETG.

Guides and print profiles

Print profiles and steps

0.2mm layer, 6 walls, 100% infill 0.2mm layer height

6 walls

100% infill

Print with support
