Cleaning brush holder Ender 3 S1

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
STL
  • 36 Likes
  • 49 Downloads
  • 3 Makes
  • 46 Collected
  • 0 Boosts
  • 5 Comments
  • 0 Views

Author:3DPartTech

Published

Download on MakerWorld

Description

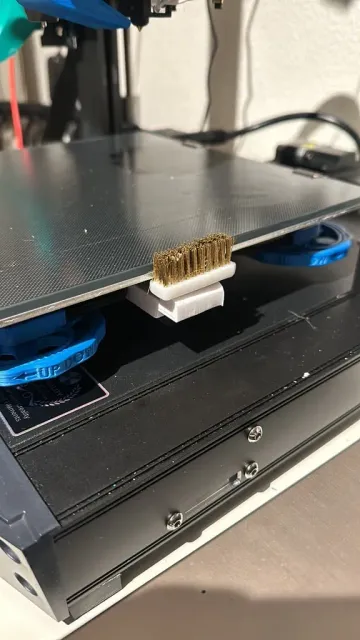

This is a bracket to hold a brush on the Ender 3 S1. You will need an M4x15 bolt and a M4 nut. 2x small screws for holding the brush.

Below my start G-code: G90 G92 E0 ; Reset Extruder M140 S60 ; bed heating start M104 S210 ; nozzle heating start G28 ; Home all axes BED_MESH_CALIBRATE G1 Z2.0 F3000 G1 X2.1 Y20 Z0.3 F5000.0 G1 X2.1 Y200.0 Z0.3 F1500.0 E15 G1 X2.4 Y200.0 Z0.3 F5000.0 G1 X2.4 Y20 Z0.3 F1500.0 E30 G1 Z2.0 F3000 G1 X5 Y20 Z4 F5000.0 G1 X5 Y0 Z3 F5000.0 G1 X240 Y75 Z3 ; move nozzle outside bed and next to brush G1 X240 Y90 Z3 ; move to brush and wipe clean G1 X240 Y110 Z3 F5000.0 G1 X240 Y90 Z3 F5000.0 G1 X240 Y110 Z3 F5000.0 G1 X240 Y90 Z3 F5000.0 G1 X240 Y110 Z3 F5000.0 G1 X240 Y90 Z3 F5000.0 G1 X240 Y110 Z3 F5000.0 G1 X240 Y110 Z5 F5000.0 ; move upwards

Guides and print profiles

Print profiles and steps

0.2mm layer, 2 walls, 15% infill

Tags

crealityender 3 s1cleaning brushcleaning
