120 & 140mm Fan Duct to 100, 125 & 150mm pipe/hose

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
STL
  • 222 Likes
  • 711 Downloads
  • 492 Makes
  • 934 Collected
  • 12 Boosts
  • 33 Comments
  • 0 Views

Author:Vaursechs

Published

Download on MakerWorld

Description

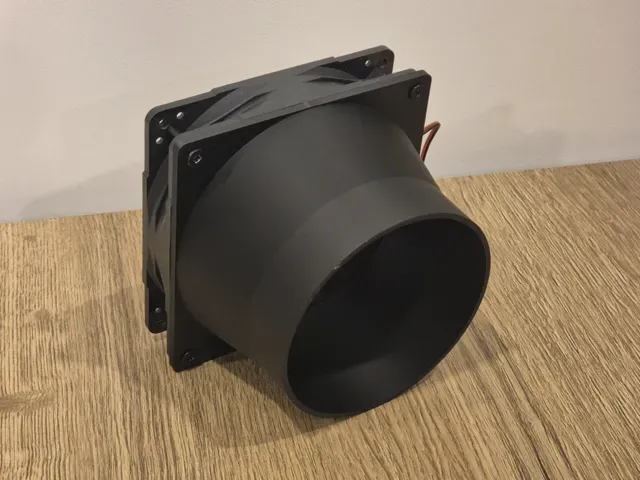

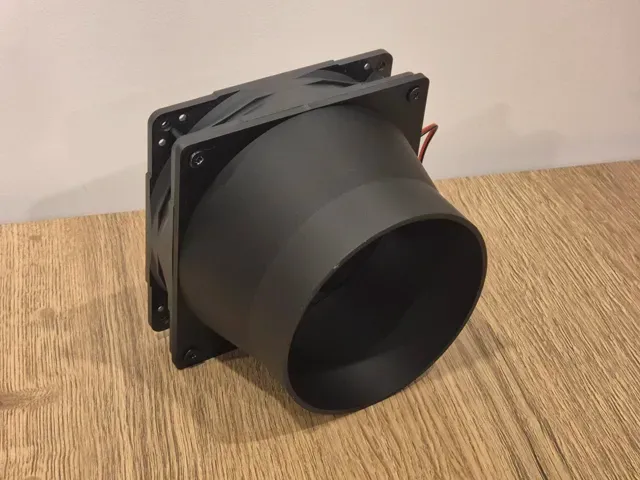

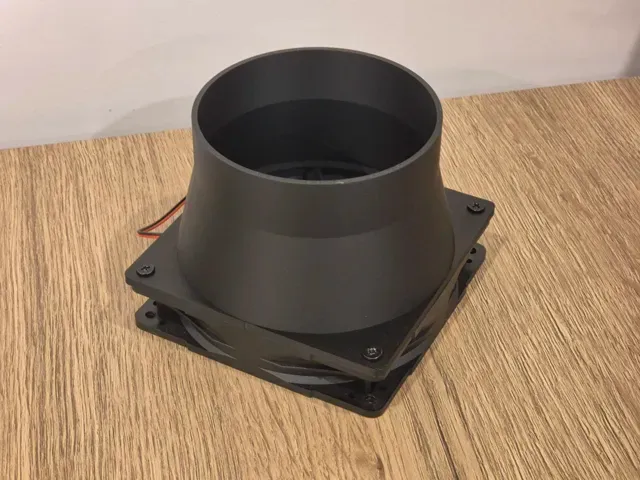

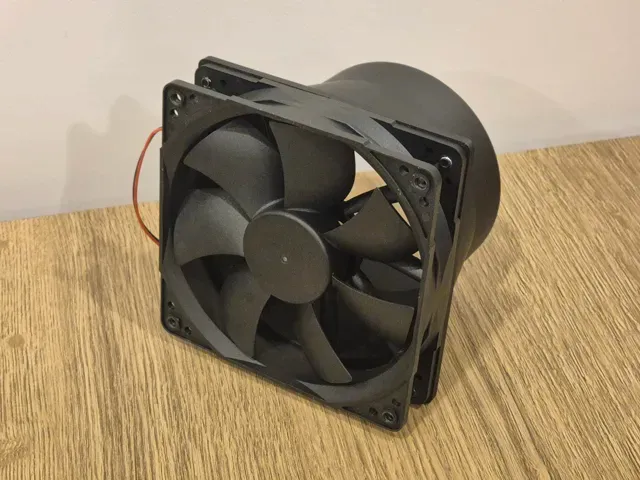

Various fan ducts for 120mm and 140mm fans:

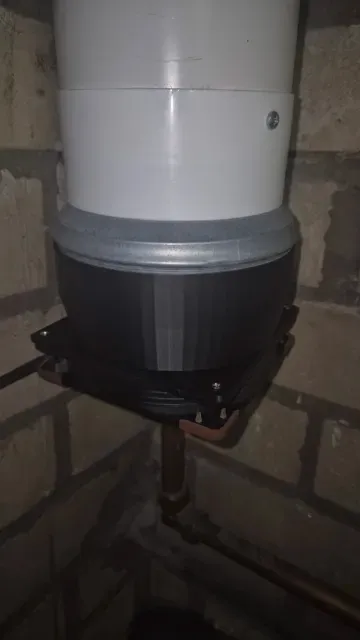

- 120mm fan to 100mm duct - 140mm fan to 100mm duct - 140mm fan to 125mm duct - 140mm fan to 150mm duct Duct size is OUTER Diameter (except for the 150mm version, this one has 150mm inner diameter for aluminium pipe with rubber seal to fit!)

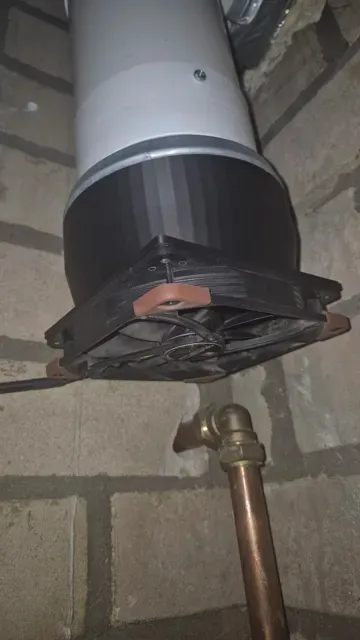

If you want to use a fan between two hoses, just print this adapter twice and use it on both sides of the fan!

Fan Dimension used from Noctua fans.

Mounting holes might need to be drilled out a little bit further.

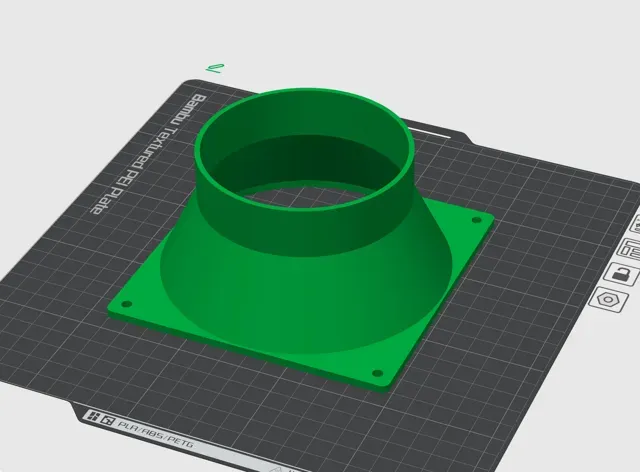

No supports needed!

See my other models for different size fan adapters.

Boost Me If you like my design, I would very much appreciate your support by giving a boost! Thanks! (each Boost is worth a few grams of new filament)

Guides and print profiles

Print profiles and steps

120mm Fan to 100mm Duct - 0.2mm layer, 4 walls, 15% infill

140mm Fan to 100mm Duct - 0.2mm layer, 4 walls, 15% infill

140mm Fan to 150mm Duct - 0.2mm layer, 4 walls, 15% infill

140mm Fan to 125mm Duct - 0.2mm layer, 4 walls, 15% infill
