Catherpillar 930M Front Loader
Catherpillar 930M Front Loader — Image 2 of 8

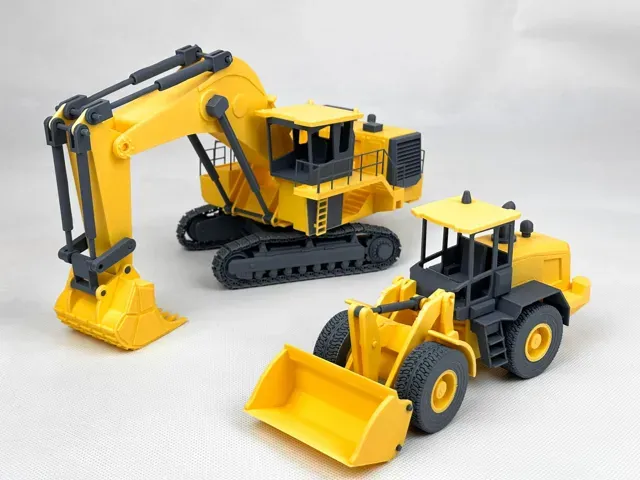

Catherpillar 930M Front Loader — Image 3 of 8

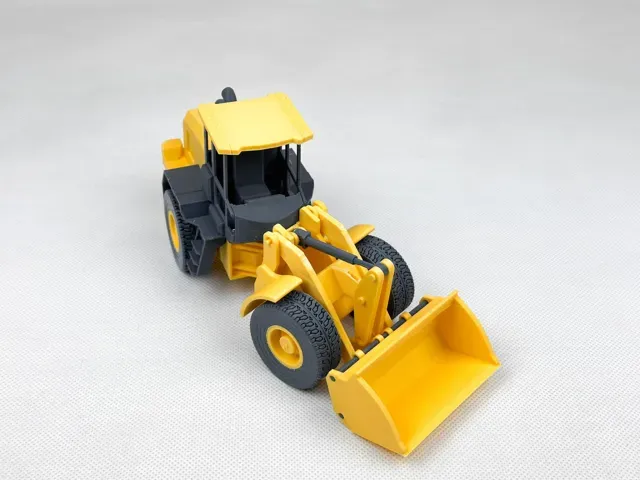

Catherpillar 930M Front Loader — Image 4 of 8
Catherpillar 930M Front Loader — Image 5 of 8

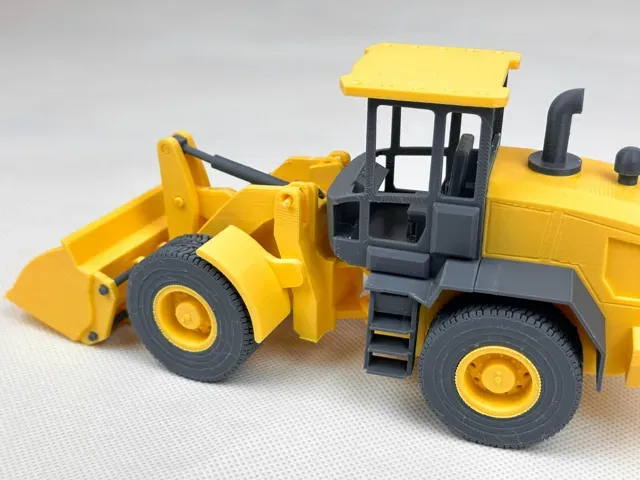

Catherpillar 930M Front Loader — Image 6 of 8

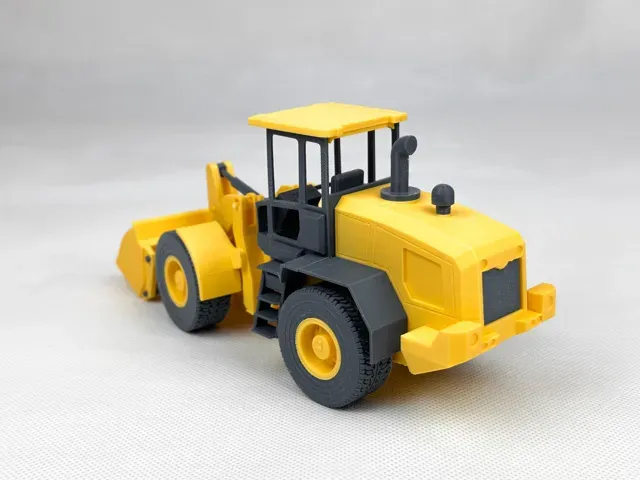

Catherpillar 930M Front Loader — Image 7 of 8

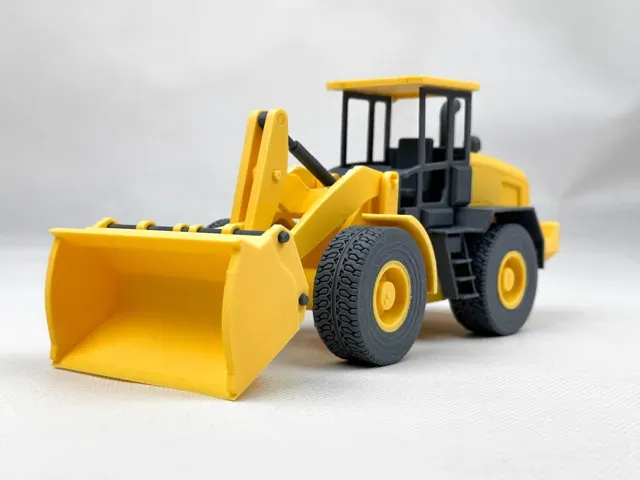

Catherpillar 930M Front Loader — Image 8 of 8
3D model · MakerWorld

Catherpillar 930M Front Loader

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
3MFSTL
  • 3 138 Likes
  • 6 238 Downloads
  • 2 095 Makes
  • 6 533 Collected
  • 158 Boosts
  • 199 Comments
  • 0 Views

Author:mikolaj.mazik

Published

Download on MakerWorld

Description

I'm a student. If you like my work, please consider leaving a small donation, it will help me create more and more interesting models!

https://ko-fi.com/mikolajmazik

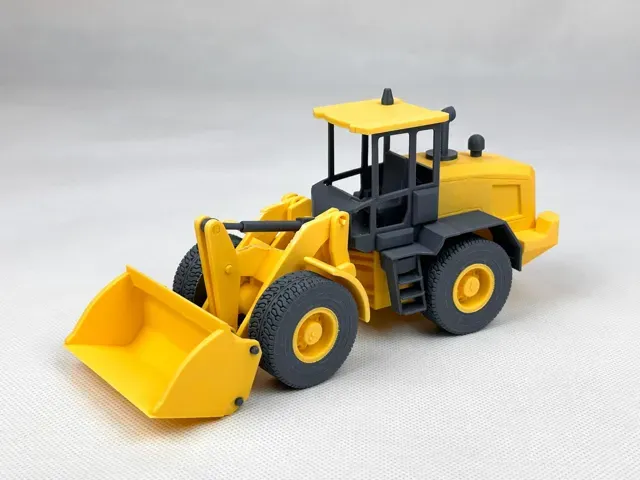

This time I decided to make a wheel loader model. Modeling took me about two days, another two days to print individual parts.Arm works identically to the real loader, the wheels rotate.

Guides and print profiles

Print profiles and steps

X1C A1 P1P P1S

A1 MINI

Modified for Simplified Printing and Assembly! Simplified Printing and Assembly!

I made several modifications to the original designer's model, including consolidating some parts, making the pivot pins have heads and caps, and making various parts fit better. I also shortened the cab so that the body can pivot more realistically. I also added a few exploded assembly images to help with building it.This is a really good model that just needed a few edits to make it great!

0.2mm layer, 2 walls, 15% infill 3 color , and for 4 plates

print using default profile from desinger and make few adjustment for several part don't need support.

*note

make my own tire rod because existing part is to short and need extra layer for the part that glued into the wheel

Hydraulic need to be printed stand up so the hole shape can be perfect.
