Brush Holder with Removable Tray

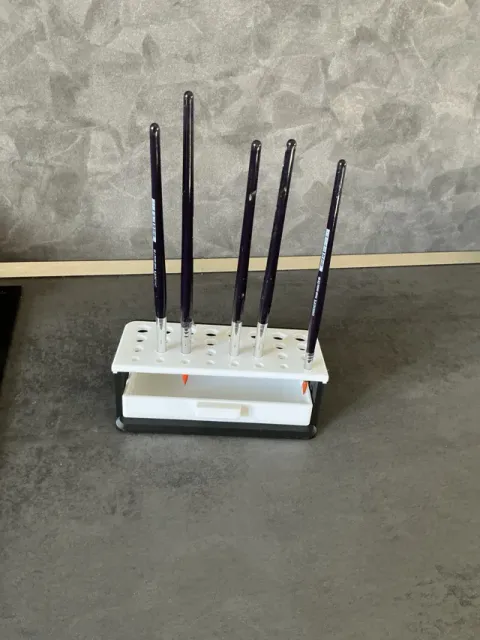

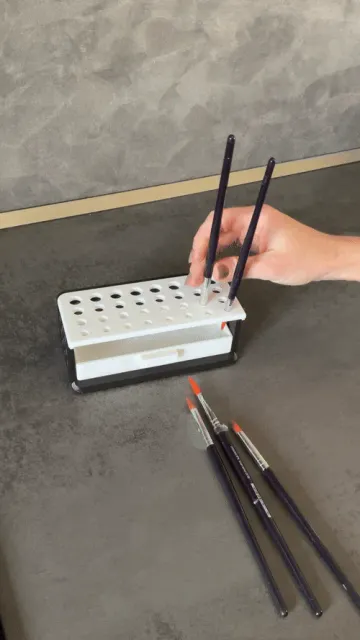

A practical and elegant paint brush holder designed for easy drying after washing or soaking . The brushes are placed at a slight angle , allowing water to drip down into a removable lower tray , which can be easily pulled out and emptied.

Boost Me Your support helps me create more free and practical designs for makers like you. Thank you!

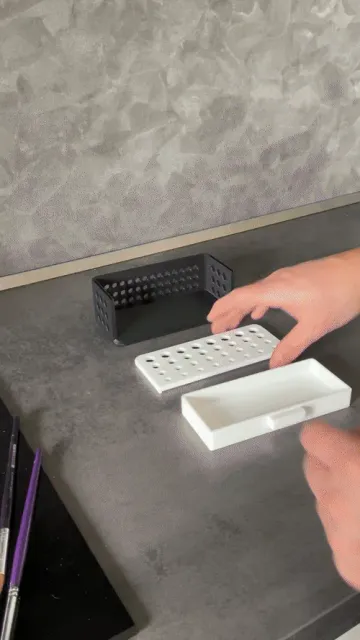

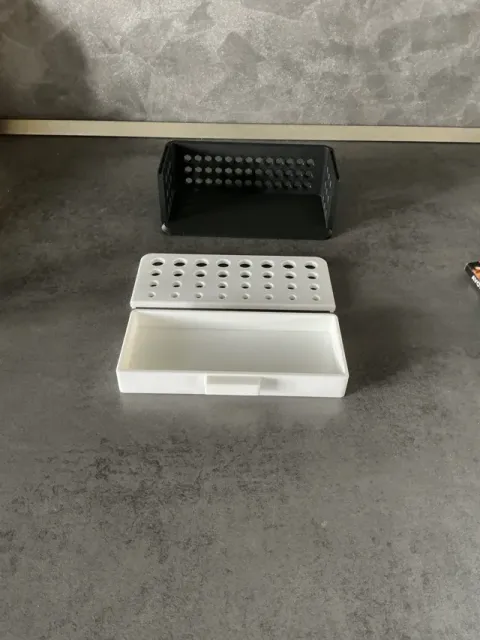

The model is optimized for simple 3D printing — it can be printed without AMS and requires only minimal supports . The bottom part slides into the top section using a locking mechanism that keeps everything firmly in place without glue .

The top plate features multiple hole sizes for different brush diameters:

- 8 × 12 mm - 8 × 10 mm - 8 × 8 mm - 8 × 6 mm Each hole has a slight cone shape so that the brush sits securely and does not fall through . The top plate is replaceable , making it easy to adjust the design for other brush sizes or shapes if needed.

📏 Dimensions

- Length: 146 mm - Width: 98 mm - Height: 61 mm 🧠 Print Recommendations

- Material: PLA - Infill: 15–20 % - Supports: minimal (only where necessary) - Layer height: 0.2 mm - Best printed with the bottom part facing down and the top plate facing up 🧰 Customization

If you’d like the top plate adjusted for different brush sizes , feel free to leave a comment with your preferred diameters — I’ll be happy to make a custom version.

🪶 Summary

✅ Drains water efficiently after washing ✅ Removable water tray for easy cleaning ✅ No glue required — parts slide together ✅ Prints easily with minimal supports ✅ Customizable top plate for your brush collection
