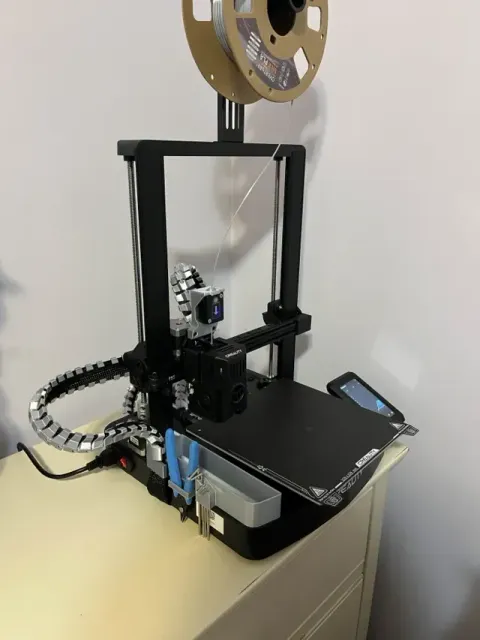

Ender 3 V3 SE/KE Filament Sensor Mount w/Spine — Image 2 of 4

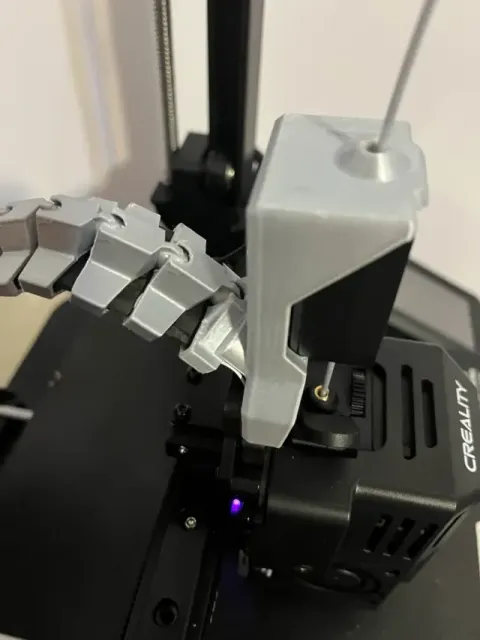

Ender 3 V3 SE/KE Filament Sensor Mount w/Spine — Image 3 of 4

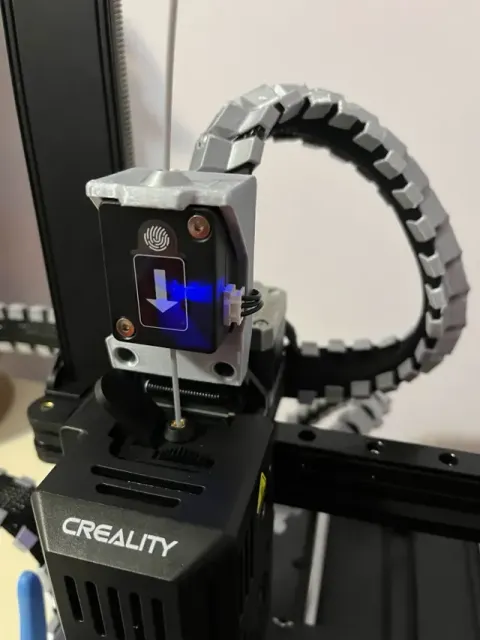

Ender 3 V3 SE/KE Filament Sensor Mount w/Spine — Image 4 of 4
3D model · MakerWorld

Ender 3 V3 SE/KE Filament Sensor Mount w/Spine

Model details

Platform
MakerWorld
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
STL
  • 34 Likes
  • 138 Downloads
  • 6 Makes
  • 57 Collected
  • 0 Boosts
  • 2 Comments
  • 0 Views

Author:Dan Hecker

Published

Download on MakerWorld

Description

Installation:

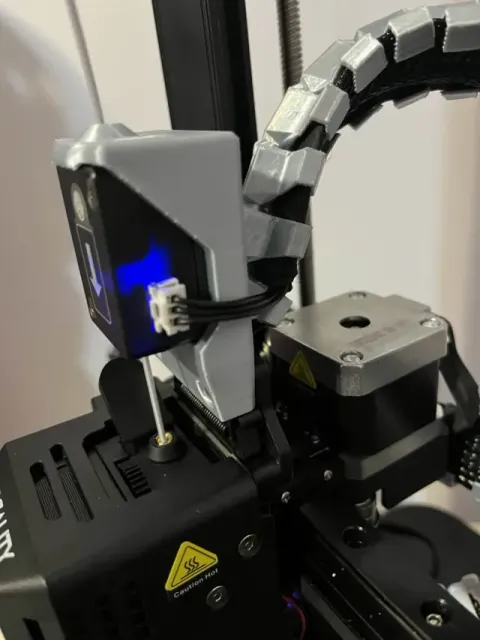

- Detach the filament sensor from its original location. - Fit the sensor into the mount by tilting the sensor so that it snaps into the top tab of the mount and press to fit the tube from the plate. - Screw the plate onto the back of the mount using the original screw. - Screw the mount with the sensor using the two original screws to the print head. For better convenience and aesthetics, it is recommended to reposition the filament sensor cable through the print head's cable assembly, but this requires some disassembly of the printer and is not necessary.

Guides and print profiles

Print profiles and steps

0.2mm layer, 6 walls, 25% infill

Tags

ender3spineupgradeender3ender3v3enderv3seenderv3kespinechain
