GEN2 270 Decor Drawers - All

H2 SERIES ONLY - 1W TO 3W

The 270 collection is the deepest GEN2 size and it needs a 320mm bed. H2S and H2D only, widths 1W through 3W. Nothing here fits a 256mm printer. If you are on an A1, P1, P2S or X1, use the 240 or 185 collections instead.

EVERY 270 DECOR DRAWER IN ONE MODEL

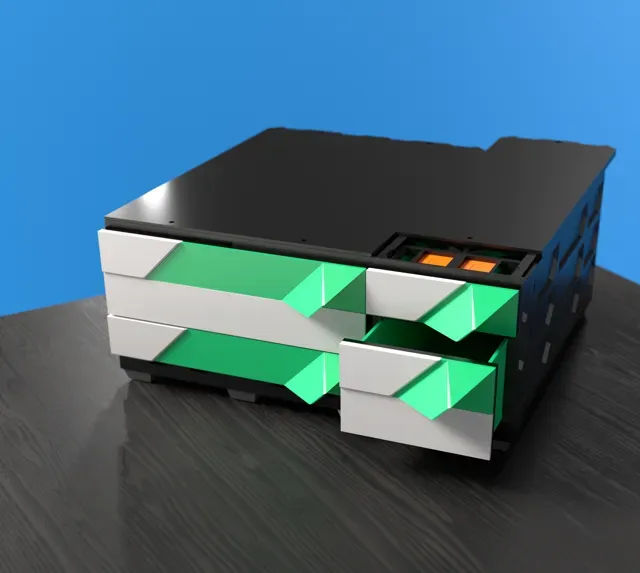

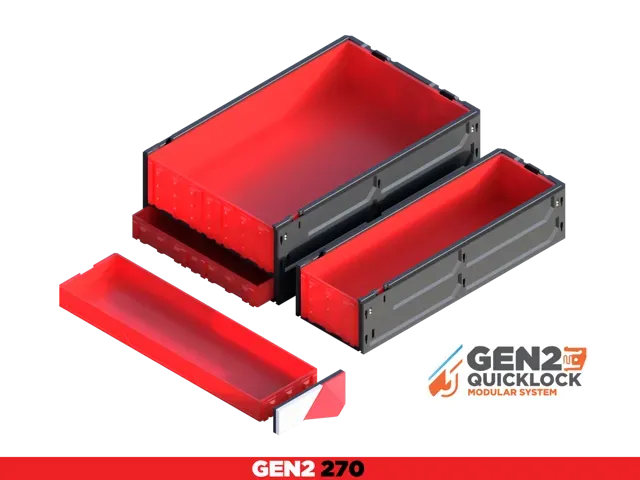

All 18 Decor drawer variants for the 270 (Extra Deep) collection of the GEN2 QuickLock Modular System: four widths across five heights, all current v2602 geometry. Print only what you need, snap it together, and rearrange or expand anytime.

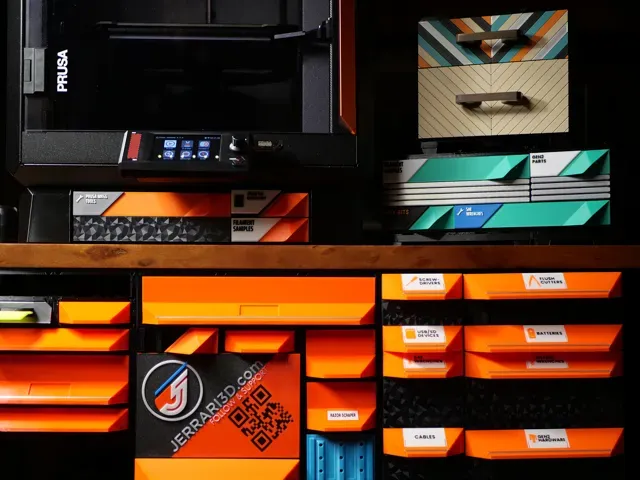

Decor drawers accept swappable faceplates and handles, so you can restyle a whole wall of storage without reprinting a single drawer body.

WHAT IS IN THIS MODEL

- 1W - 05H, 1H, 15H, 2H, 3H - 2W - 05H, 1H, 15H, 2H, 3H - 3W - 05H, 1H, 15H, 2H - 4W - 05H, 1H, 15H, 2H (included for larger than Bambu beds) Plus the shared GEN2 hardware: QuickLocks, drawer stoppers and magnet inserts.

PLAN YOUR BUILD WITH THE FREE GEN2 PLANNER

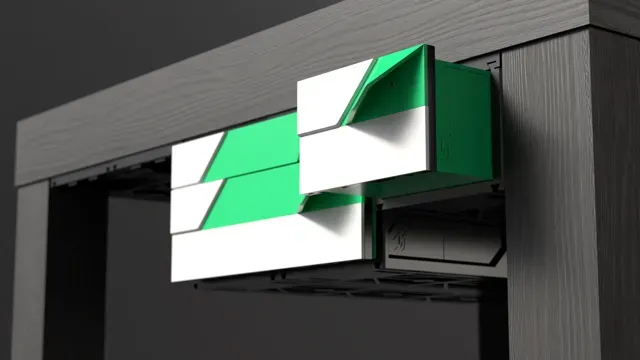

Pick a mount style (wall, table top, or under-table), lay out your cases and drawers, and get a complete parts list with download links. It runs in your browser, no sign-up, and it filters by printer size so you only see what you can actually print.

Plan it free: https://gen2planner.jerrari3d.com/?utm_source=makerworld

WORKS WITH GEN2 270 CASES

Drawers need a case to live in. The full 18 size set of 270 cases lives here: https://makerworld.com/en/models/3092111-gen2-270-cases-all

PREFER A SOLID FRONT?

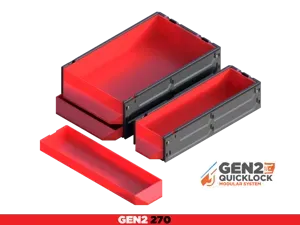

Classic drawers print in one piece with the handle built in, no faceplates and no assembly: https://makerworld.com/en/models/1938234

FACEPLATES

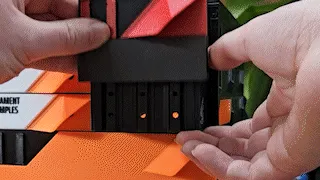

Decor drawers are built around swappable faceplates. Faceplates are a separate download and are not included in this model. Grab them from my other models here on MakerWorld, or see the full range at https://www.jerrari3d.com/gen2-modular-system/decor-faceplates

HARDWARE

- Filament - Bambu PLA Basic (easy, prints great for most parts) or Bambu PETG for stronger, heavier duty storage - Screwdriver - Magnets (optional) - 10x2mm or 6x2mm - M3 nuts and screws - stainless steel or steel RECOMMENDED PRINT SETTINGS

- Filament - PLA (PETG or ABS for heavier duty storage) - Supports - none needed - Nozzle - 0.4mm - Layer height - 0.2 to 0.35mm - Infill - 10 to 20% PREPARATION

Clean your print surface well to prevent warping. Warping can make it difficult, and sometimes impossible, for the rails to slide together. A build plate adhesive or glue stick helps, and keeping the printer away from windows or breezy areas (or in an enclosure) makes a difference. In your slicer you can also add Helper-Disks / Brim-Ears at the corners for more bed adhesion.

INSTRUCTIONS

Step-by-step build guides, including wall-mount and under-table setups: https://www.jerrari3d.com/gen2-modular-system/instructions

SEE THE SYSTEM IN ACTION

Full walkthrough of the GEN2 QuickLock Modular Storage System: https://www.youtube.com/watch?v=2UPSWt1l6U8

LIKE THE GEN2 SYSTEM?

Follow me here on MakerWorld to catch new releases, and find the full catalog and guides at jerrari3d.com . It means a lot and helps fund future designs.

Please note: the Non-Commercial license refers specifically to selling prints. You are absolutely welcome to use my designs in commercial environments, I actually encourage you to use them anywhere you see fit.
