AR-15 Style tool holder for Dillon XL650 Reloader 650 XL750 750

Model details

Platform
MakerWorld
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
STL
  • 19 Likes
  • 65 Downloads
  • 20 Makes
  • 85 Collected
  • 0 Boosts
  • 2 Comments
  • 0 Views

Author:AzJake Creations

Published

Download on MakerWorld

Description

Summary

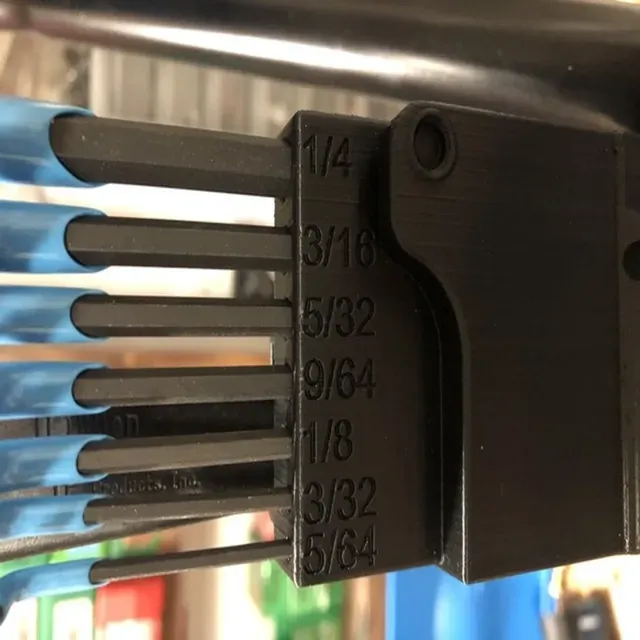

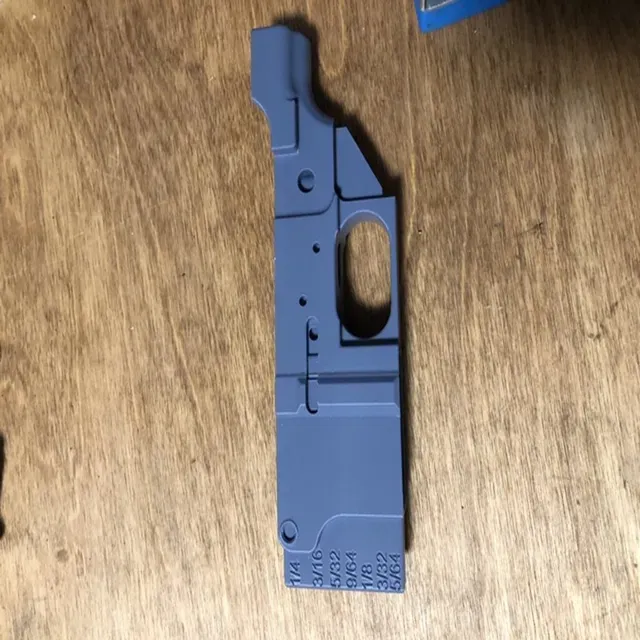

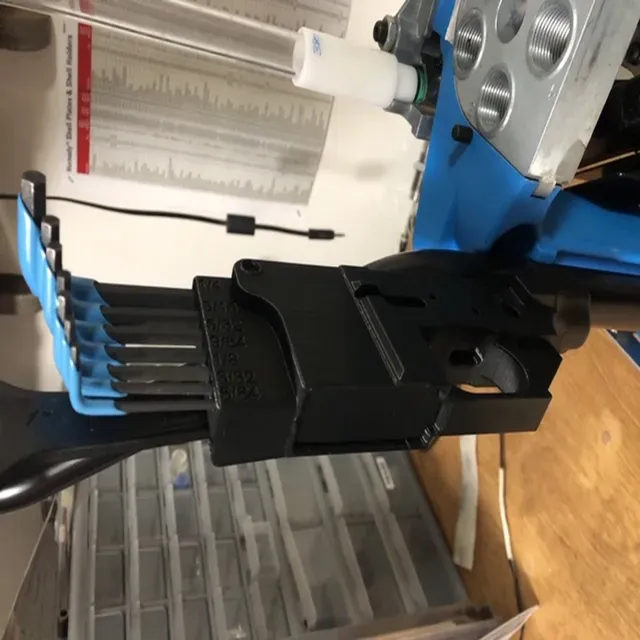

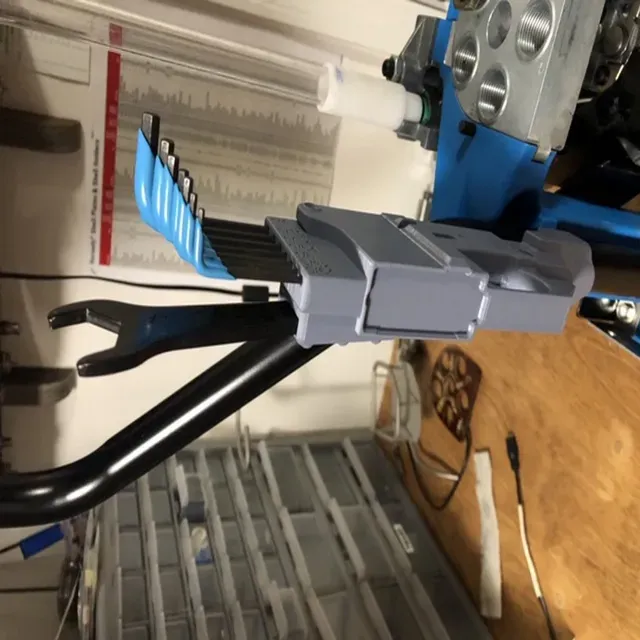

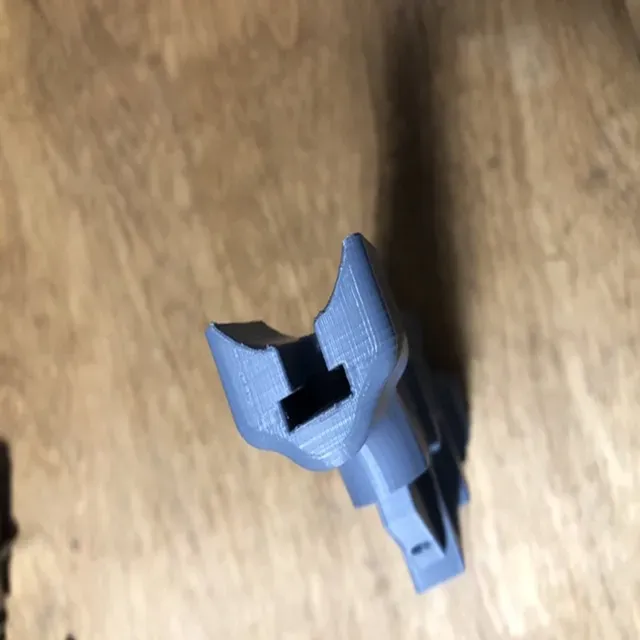

This tool holder replaces the spacer on the casefeeder tube and is slotted to reuse the exiting bolt. It fits on the upper bolt. It holds all the standard tools included in the Dillon XL650 Bench tool set. It is built to positively index the allen wrenches and prevent them from spinning. Ptint with the curved opening for the casefeed tube down. Full details can and the Fusion 360 files can be found at: https://azjake.com/ar15-tool-holder

Print Settings

Printer Brand:

Creality

Printer: Ender 3 Pro

Rafts:

No

Supports: Yes

Resolution:

.16MM

Infill: 20%

Filament:

HatchBox PLA Black and Gray

Guides and print profiles

Print profiles and steps

0.2mm layer, 2 walls, 15% infill 0.20mm Layer height

15% Infill (Gyroid) Treesupport

Tags

ar15dillondillon650dillonxl650reloading
