Dewalt Grinder Dust Port

Model details

Platform
MakerWorld
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
STL
  • 111 Likes
  • 125 Downloads
  • 86 Makes
  • 288 Collected
  • 1 Boosts
  • 14 Comments
  • 0 Views

Author:Webblade

Published

Download on MakerWorld

Description

Edit Note: Having tested this model a bit more and after hearing from another user this model is too weak in its current form. Please print both parts in TPU for a much stronger unit. I will upload a print profile soon!

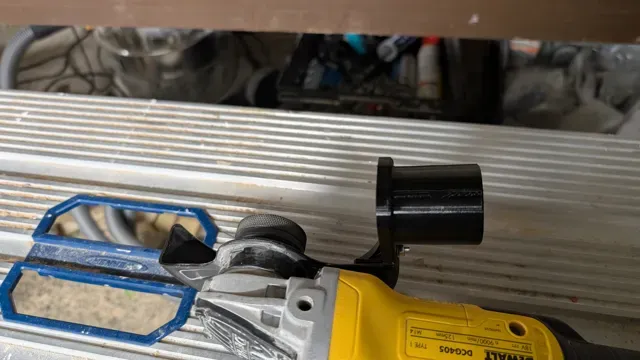

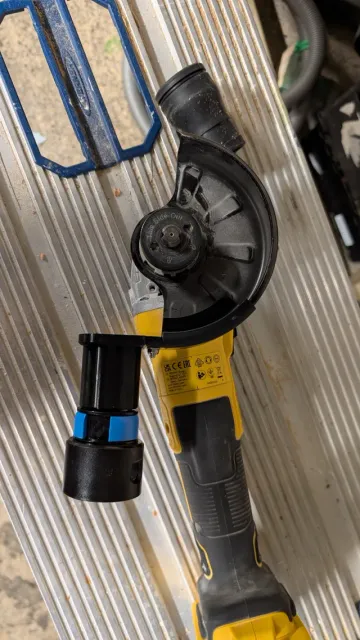

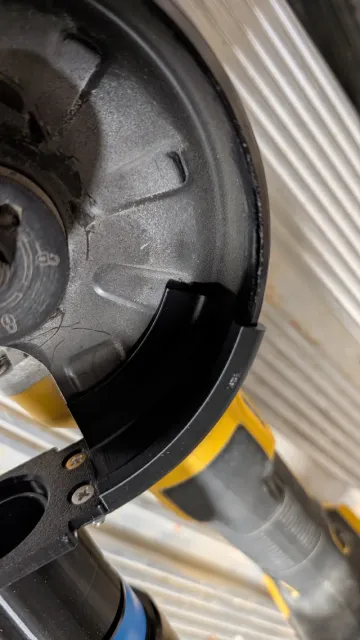

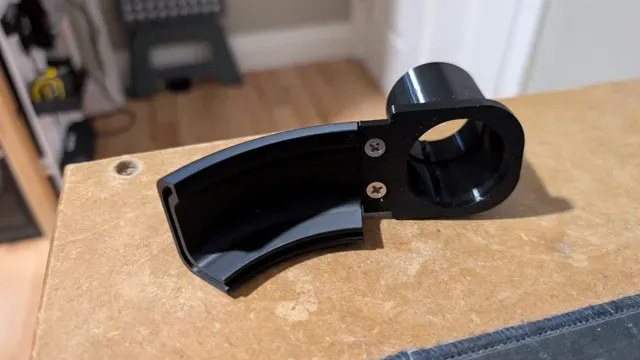

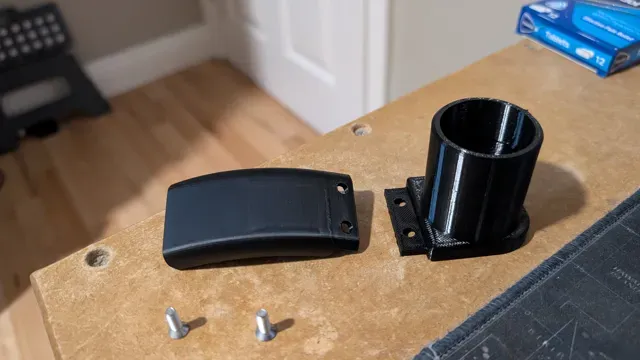

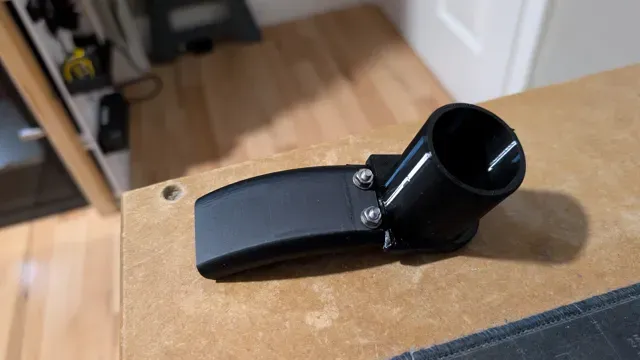

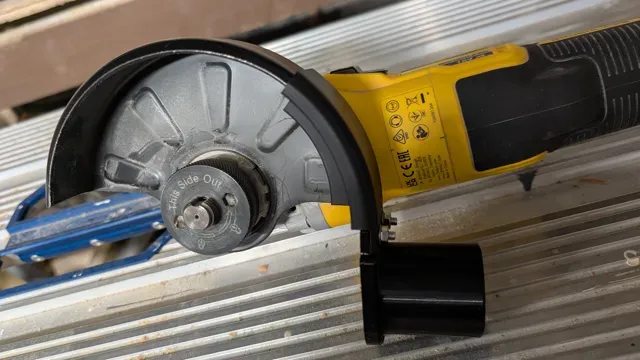

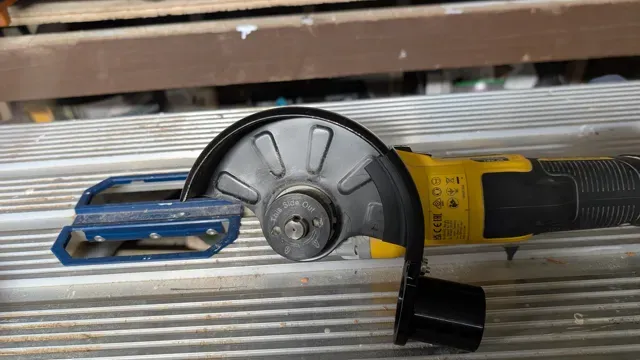

This dust port for the Dewalt DCG405N can slide onto the grinder guard as needed. It fits nice and snug on the guard with no chance of accidental movement. It is printed in two parts for easier printing and the option of using two different materials and assembled with two bolts. I made the body that slides onto the guard from PLA and the inlet piece from TPU. The inlet allows a cen-tec quick connector to be used. If you need a different sized inlet just message me.

Guides and print profiles

Print profiles and steps

0.2mm layer, 4 walls, 15% infill Printed with TPU

No supports needed!

Use a Brim on the narrow part.
