FPV Motor Mount Adapter 12x12 to 16x16

This 3D printed adapter allows you to mount 12x12 mm FPV motors on frames designed for 16x16 mm motor patterns. Ideal for small custom FPV builds, it provides a secure and flexible solution thanks to its TPU construction.

Assembly instructions:

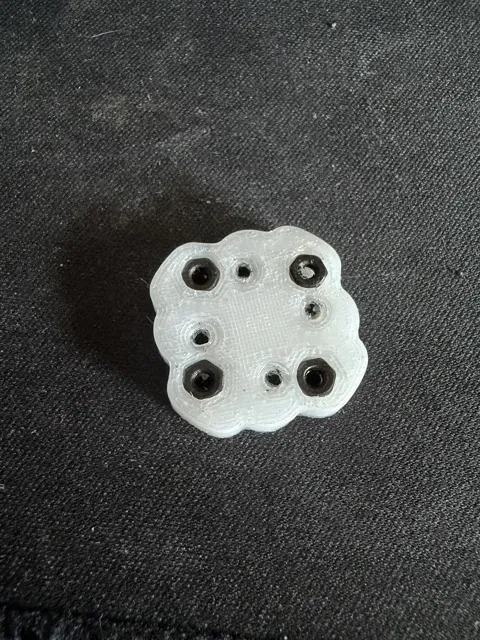

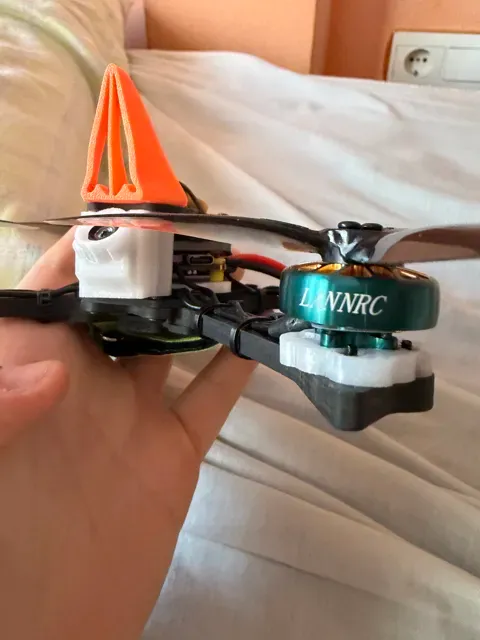

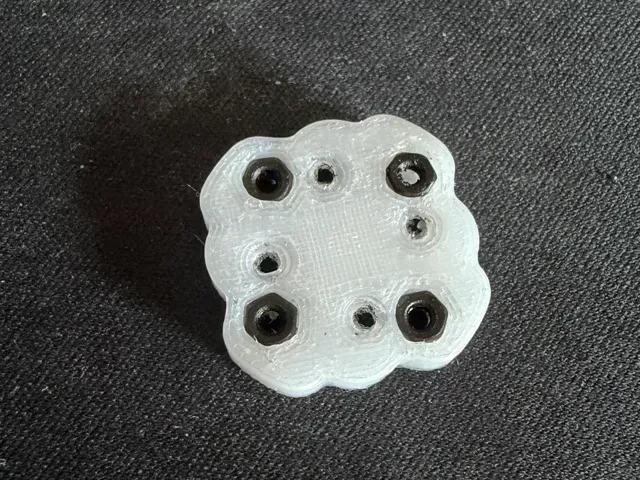

- First, mount the motor onto the TPU adapter using a sandwich-style setup: motor → TPU part → screw . - Insert a nut into each nut-shaped recess on the adapter. - Place the assembled motor and adapter onto the frame and screw it in from the bottom of the frame into the nuts. - A small amount of thread-locker is recommended to prevent loosening. Print settings used:

- Material: TPU - Infill: 100% - Supports: Yes - Layer height: 0.2 mm
