Not a Key-Bak mount for Stealth Press

About Not a Key-Bak® mount for Stealth Press

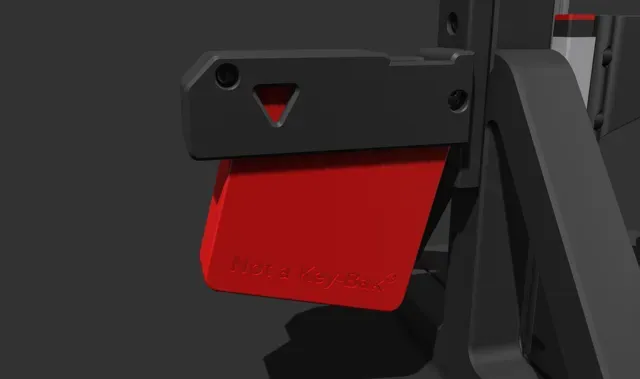

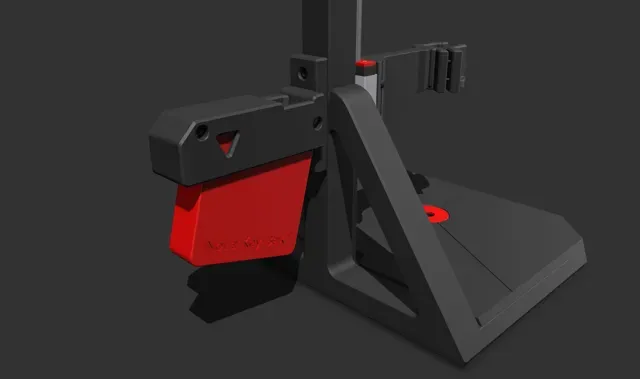

Made to be a less expensive alternative for Stealth Press, with the added benefit of not shooting your soldering iron across the room, this is, definitely, not a Key-Bak®, but it sure works like one.

Stealth Press is a highly precise, mostly printed DIY heat set insert tool for generic, TS100/101, and Pinecil soldering irons.

Download Stealth Press printend parts, see BOM and sourcing guide here.

BOM & Sourcing Guide

Mechanical parts QTY

M3x8 SHCS — Bolts || Source: [Link] 2

M3 — Threaded Inserts — M3x5x4 (M3 x OD:5 x L:4) || Source: [Link] 2

Not a Key-Bak® || Source: [Link 1 - select 500g version] or [Link 2] 1

Printed Parts

Printed parts 2

PRINT GUIDELINES

Here are print guidelines for you to follow in order to have decent success with printing parts:

3D PRINTING PROCESS FDM (fused deposition modeling)

INFILL TYPE Grid, Gyroid, Honeycomb, Triangle or Cubic

MATERIAL  ASA, ASA-CF, ABS, ABS+, ABS-CF

INFILL PERCENTAGE  40% - 60%

LAYER HEIGHT Recommended: 0.2mm

WALL COUNT  Recommended: 4

SOLID TOP/BOTTOM LAYERS Recommended: 5

EXTRUSION WIDTH Forced 0.4mm

Side notes to the print guidelines:

You can succeed with Support cubic infill type (slicer support may vary) and as little as 25% infill for all parts if are aiming for faster print speeds and less filament usage.

PLA, PLA+, and PETG are also considerable filament choices.

A wall count of 4 is an absolute must to ensure the structural integrity of the parts. There is no need to go over the top with this. 4 walls are OK for this particular build.

HOW TO SUPPORT THE PROJECT

- If you like this project press like and download model files. - If you find this useful and want to see more from Iconic FAB first - consider following . - If you really like this and find it very useful support project   with amount of your choice. CHANGELOG

Date Change

24.02.2024 Initial version
