Y axis tensioner - Ender 3 Pro

Model details

Platform
MakerWorld
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
3MFSTL
  • 25 Likes
  • 109 Downloads
  • 33 Makes
  • 58 Collected
  • 1 Boosts
  • 7 Comments
  • 0 Views

Author:Tekti3D

Published

Download on MakerWorld

Description

Summary

Y axis tensioner

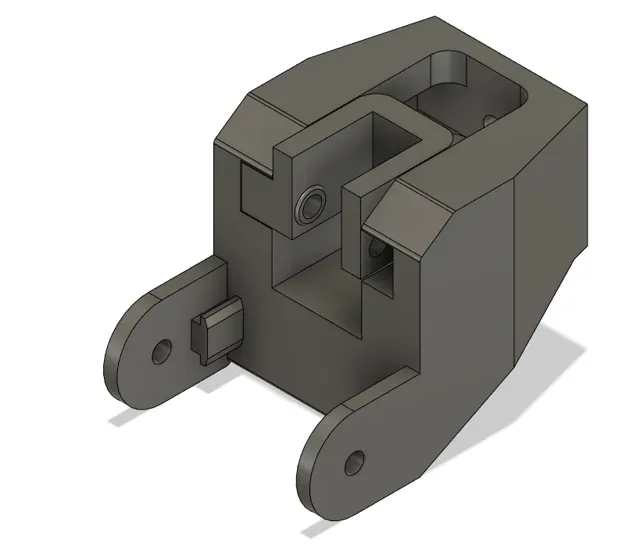

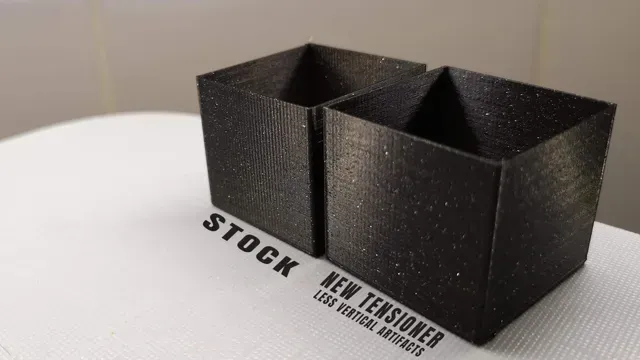

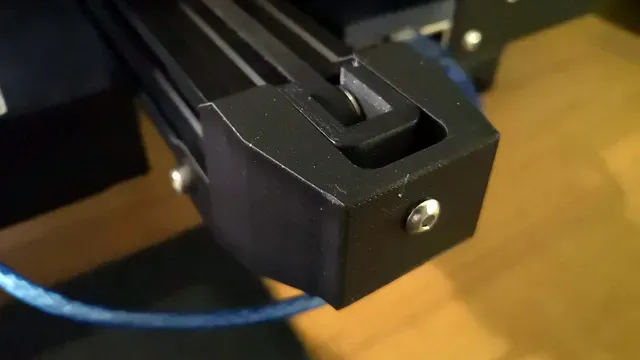

Y axis tensioner for Ender 3 pro. You can use this design to properly tension your belt for Y axis. The middle part, can be changed for different pulleys/bearings and also adjusted in left/right direction if the belt is binding one of the sides. The right allignment of the belt can decrease vertical artifacts on the print.

Mounting/Printing tips

- Full_Body.stl print vertical, without supports - Inside.stl - print flat Inside_+/-1mm can be used to better adjust positiong of the belt, so there is no binding. You can use this model to prepare your own version.

Additional parts:

- M4 20mm screws - 2x Version 2

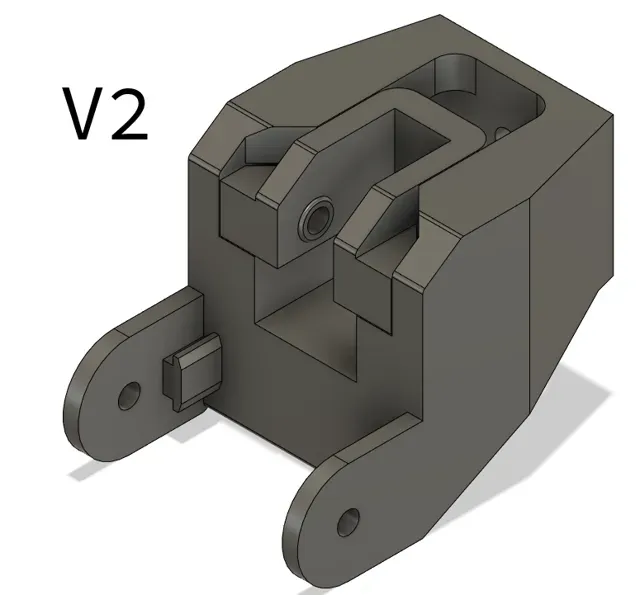

In this version you can easily swap different "Inside" element (each can have different pulley, bearing, offset) without full disassembly. Just slide it off :)

Print Settings

Printer Brand:

Creality

Printer: Ender 3 Pro

Rafts:

No

Supports: No

Resolution:

0.2

Infill: 20-25%

Filament:

Fiberlogy PLA Onyx

Guides and print profiles

Print profiles and steps

0.2mm layer, 3 walls, 20% infill
