Type 2 EV plug wall holder with tilted receptical

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
3MFSTL
  • 64 Likes
  • 360 Downloads
  • 238 Makes
  • 192 Collected
  • 4 Boosts
  • 26 Comments
  • 0 Views

Author:Marcus Tuck

Published

Download on MakerWorld

Description

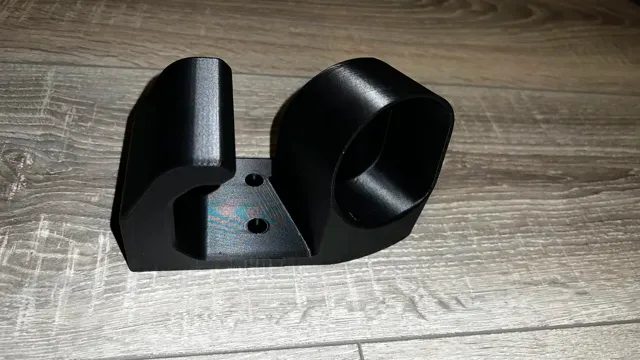

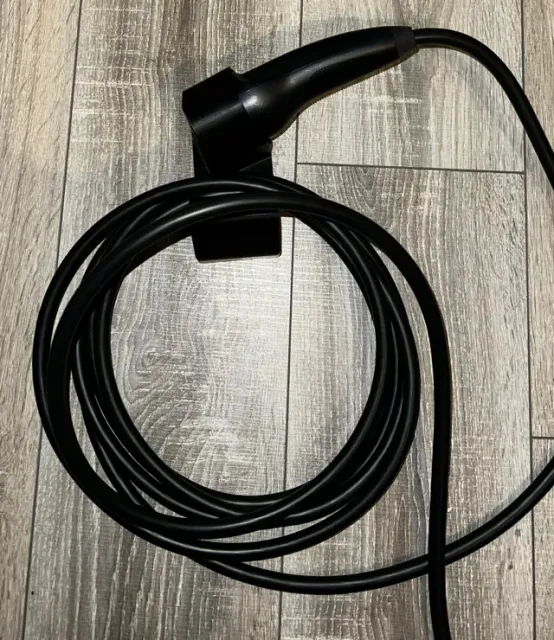

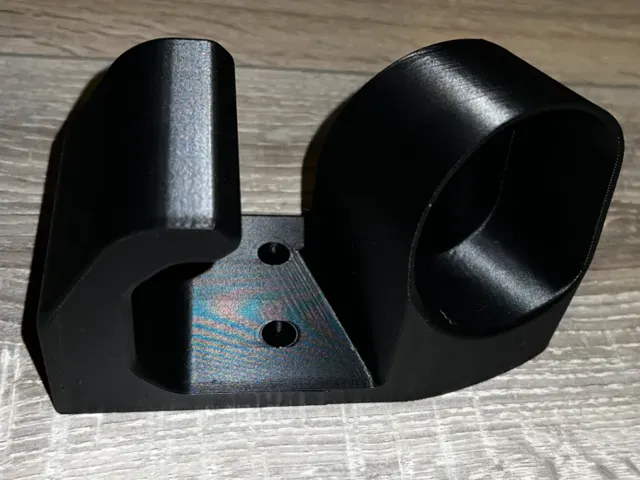

A simple wall mounted holder for my Tesla Type 2 (It's a European standard) charging plug and cable. Its designed around the standard type 2 plug but have made it slightly larger than the Tesla plug so it should work for other chargers that use this type of EV plug.

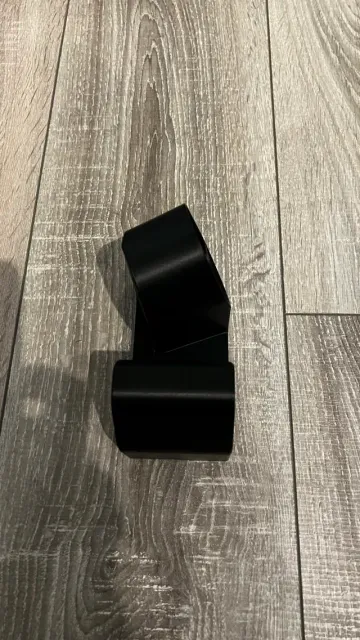

This version has the plug holder nearly parallel to the wall and tilted up so that the plug is held into the holder by gravity as it is a looser fit.

My previous versions:-

Parallel to the wall with level socket, see:  https://makerworld.com/en/models/881681-ev-cable-and-type-2-plug-wall-holder-version-2#profileId-835957

Perpendicular to wall, see: https://makerworld.com/en/models/660899#profileId-588114

Guides and print profiles

Print profiles and steps

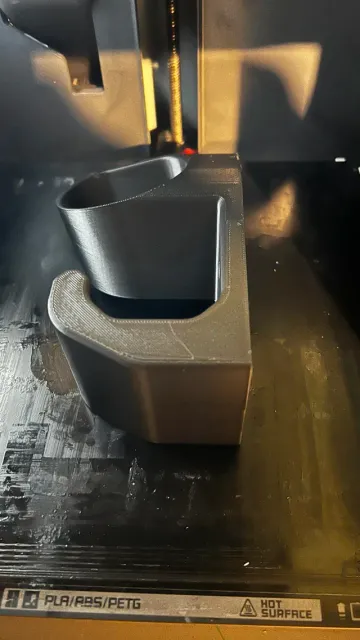

0.2mm layer, 4 walls, 15% infill I have modified the speeds and temperatures to acheive more consistant and higher quality prints in PETG HF.

Tags

teslatesla accessoriestesla accesoriestesla accessoryevev accessoriesev accessoryev charger cable holderev charger accessoryev charger holdertype 2
