AR-15 Magazine Loader / Load Assist Device

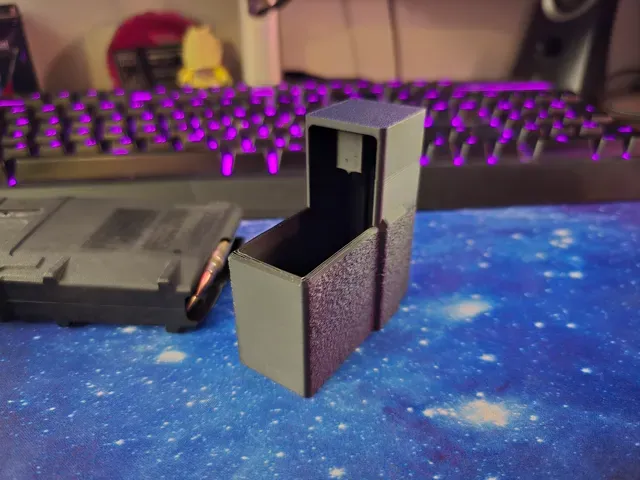

This AR-15 magazine loader was engineered with strength, durability, and smooth operation as the primary design goals. It is purpose-built to withstand repeated use while maintaining consistent performance across multiple magazine types.

This model has been tested and confirmed to fit :

- Steel AR-15 magazines - Magpul PMAG Gen M2 - Magpul PMAG Gen M3 - Hexmag HX-AR Series 1 magazines The loader uses 9 solid perimeter walls , creating a dense, impact-resistant structure designed to handle the forces involved in loading AR magazines without flexing or cracking.

The load post , which experiences the highest stress during use, features filleted transitions where it meets the base to reduce stress concentration. A height range modifier is intentionally used during printing:

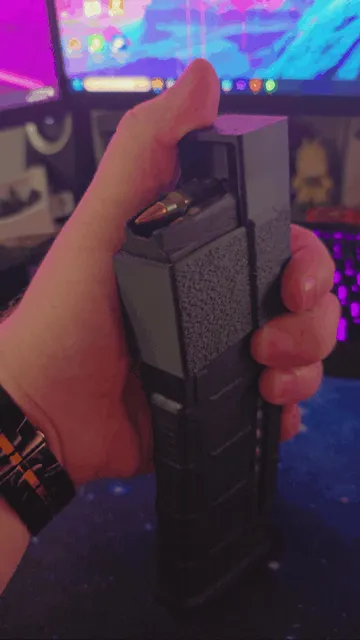

- Larger layer heights through the post for increased strength - Smaller layer heights in the upper geometry for smoother overhangs and better surface finish For improved ergonomics, the side faces incorporate a fuzzy skin texture , providing extra grip without increasing bulk—especially helpful during longer loading sessions.

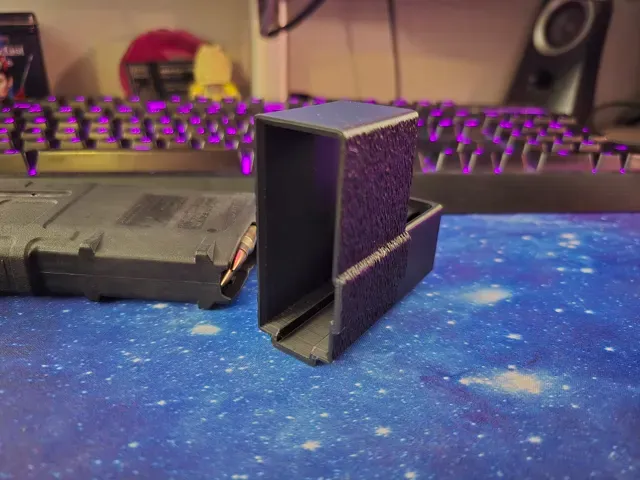

The magazine insertion area is chamfered , similar to a flared magazine well, guiding the magazine smoothly into position and reducing snagging across different mag styles and materials.

Features

- Designed for AR-15 magazines - Tested with steel mags, Magpul PMAG Gen M2 & Gen M3, and Hexmag HX-AR Series 1 - 9 walls for maximum durability - Filleted load post base to prevent cracking - Height range modifier for strength where it matters most - Chamfered magazine entry for smooth alignment - Fuzzy skin side texture for improved grip Printing Notes

- Height range modifier strongly recommended - Prints well in PLA, PETG, or tougher filaments - Oriented for reliable flat printing Designed for real-world use, this loader focuses on structural integrity, print reliability, and compatibility across common AR-15 magazine types—without unnecessary complexity.
