CFMOTO 450MT anti-shaking plate for windshield

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
3MFSTL
  • 84 Likes
  • 266 Downloads
  • 151 Makes
  • 177 Collected
  • 2 Boosts
  • 25 Comments
  • 0 Views

Author:lemehovskiy

Published

Download on MakerWorld

Description

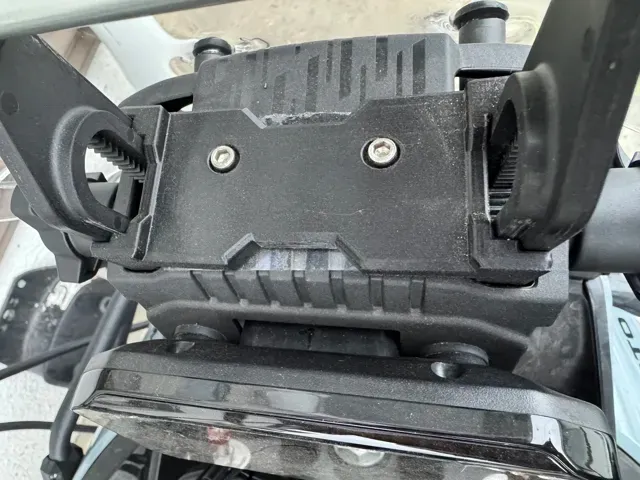

The CFMOTO 450MT is known for its adjustable-height windshield, but when a taller windshield is installed and set to the highest position, it tends to shake a lot or even lower itself on rough roads. This plate adds stability to the windshield while keeping it adjustable. The downside is that the adjustment requires two hands, making it a bit harder to adjust.

Guides and print profiles

Print profiles and steps

0.2mm layer, 4 walls, 25% infill - Support is required. - I've tested it with generic PETG. - I don't recommend lower infil because the screws might break it.

Horizontal orientation, extra internal walls Printed with generic PETG. Support is required. Based on feedback from @flashadams, additional internal walls were added, and the model was reoriented to print horizontally, significantly improving strength.

Tags

cf motocfmoto450mtanti shakeibex450
