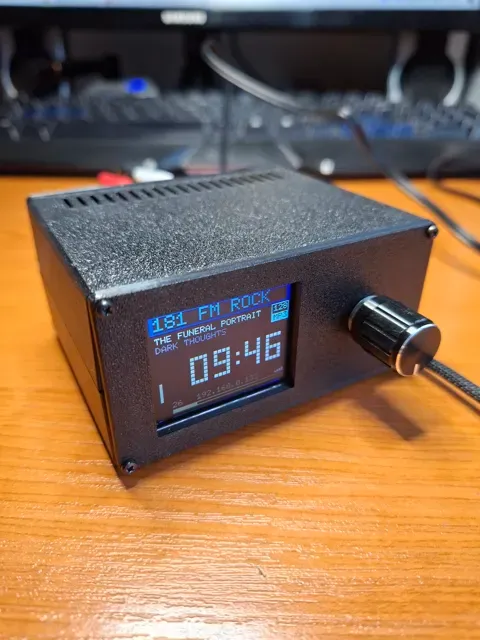

yoRadio Enclosure – ESP32-S3 — Image 3 of 6
yoRadio Enclosure – ESP32-S3 — Image 4 of 6

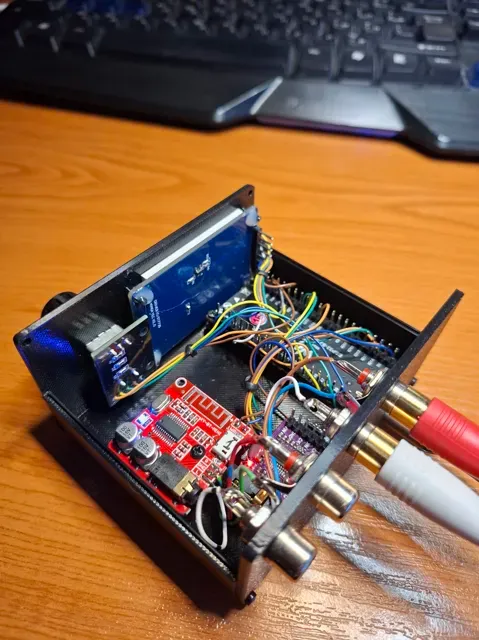

yoRadio Enclosure – ESP32-S3 — Image 5 of 6
yoRadio Enclosure – ESP32-S3 — Image 6 of 6
3D model · MakerWorld

yoRadio Enclosure – ESP32-S3

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
STL
  • 30 Likes
  • 78 Downloads
  • 20 Makes
  • 69 Collected
  • 1 Boosts
  • 5 Comments
  • 0 Views

Author:Slavi

Published

Download on MakerWorld

Description

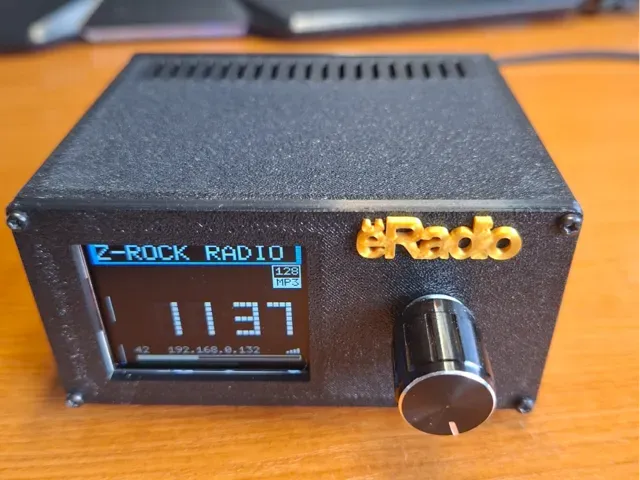

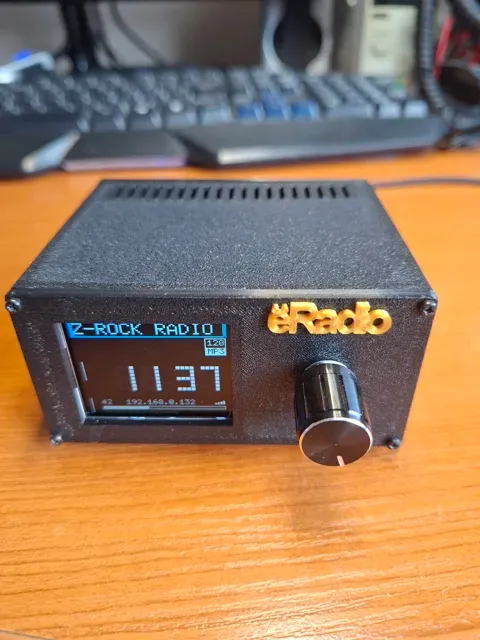

yoRadio Enclosure – ESP32-S3

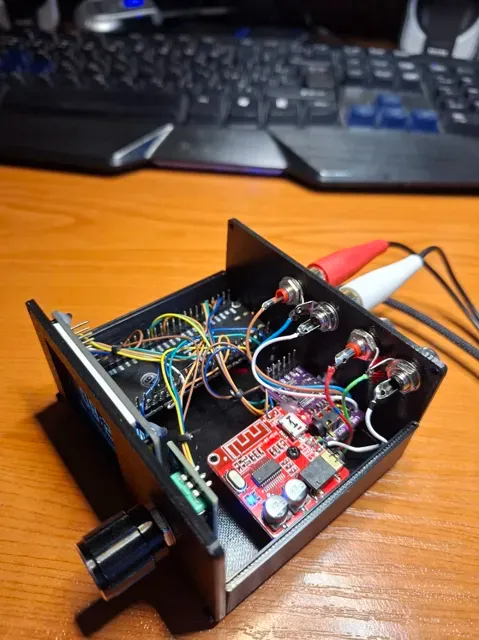

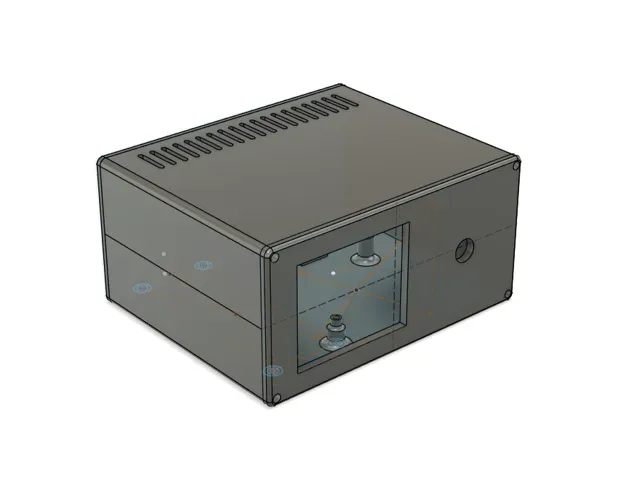

- 4-part enclosure (top, bottom, front panel, rear panel) - Project: yoRadio - Outer size: 90 × 75 × 45 mm - Display: 1.8" ST7735 - Fixed with hot glue - Controller: 1 rotary encoder - Main board: ESP32-S3 - Additional board: Bluetooth module - Assembly: - Front and rear panels connect top and bottom parts - 4 × self-tapping screws Ø2 mm per panel - Printing: - FDM 3D printing - Recommended material: PETG or PLA+ - The logo was printed using a 0.2 mm nozzle for better detail.

Guides and print profiles

Print profiles and steps

0.2mm layer, 2 walls, 15% infill
