Milwaukee M18 Battery & Accessories Organizer

Milwaukee Battery & Accessories Organizer | Holds up to 8 batteries, drill bits, and discs

Attention:

- 28.12.2025 Update! A version has been added that requires no additional hardware for assembly, making the process simpler — only glue is needed. - 23.01.2026 Update! — Slight improvements to dimensions and support print profile. - 25.02.2026 Update!  The top part of the body has been updated, and the depth of the central hole has been increased, which expands the usable space and reduces the risk of print failure when using PETG. - 29.08.2026 Update! I hid the old profiles because not everyone realized that updated versions had been released with the printing issues caused by the specifics of 3D printing fixed. - 29.08.2026 Update!  A version with a snap-on mount for the Milwaukee Packout system has been uploaded.

For assembly, you will need 4 self-tapping screws, 3.5 × 12 mm, 8 M4 heat-set inserts with an outer diameter of 6 mm and a height of about 5 mm, and 8 M4 screws, 20 mm long.  (The holes for the heat-set inserts are only included in the dedicated print profile.)

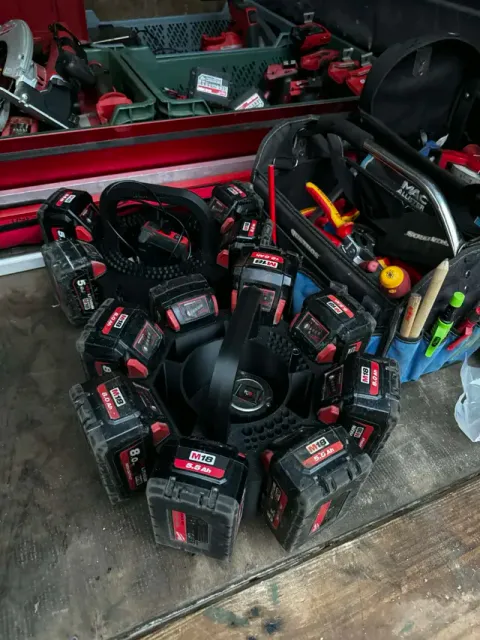

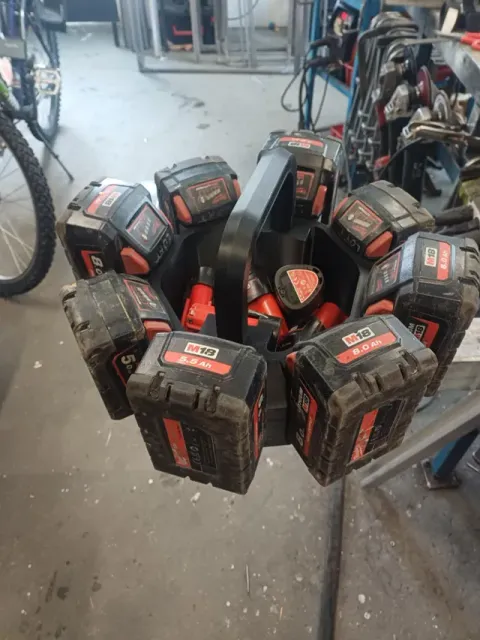

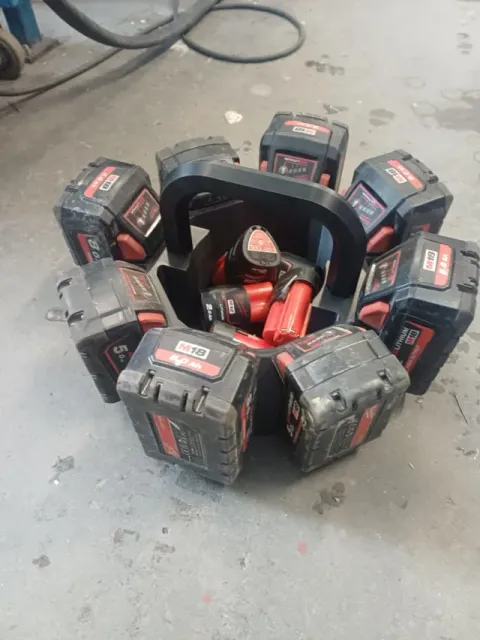

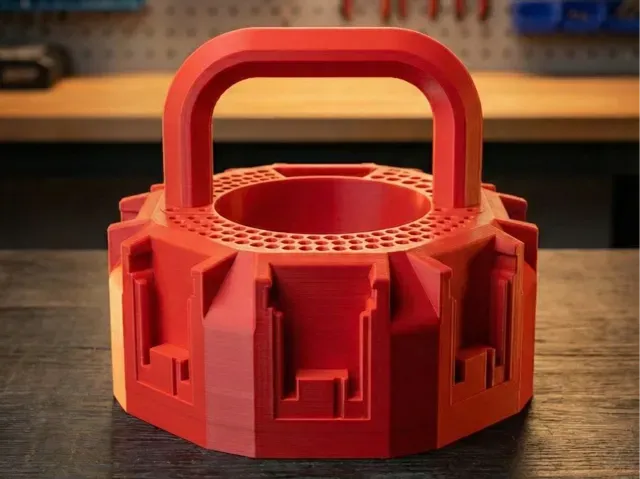

Keep your workshop organized with this sturdy and lightweight organizer designed for Milwaukee batteries and accessories .

Features:

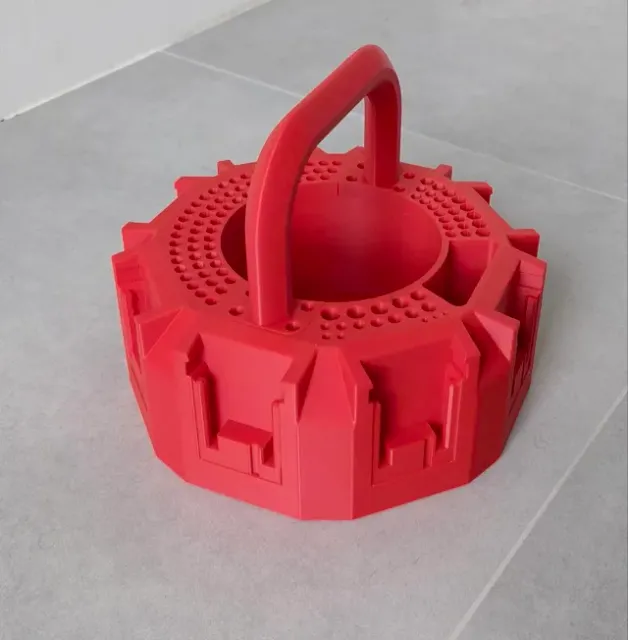

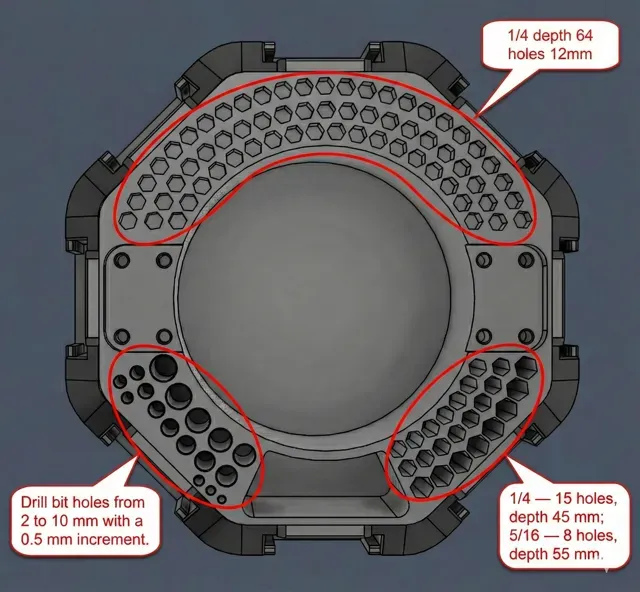

- 8 slots for Milwaukee batteries - Recess for 125 mm discs - Space for drill bits 2–10 mm (0.5 mm increments) - Additional compartments for hex-shank bits - Over 60 holes for short 1/4-inch bits - Sturdy and lightweight design, ideal for workshop organization and safe transport of tools - Multiple body variants included for convenience Assembly & Printing Tips:

- Requires 8 heat-set M4 nuts and 8 bolts (12–16 mm) - Or simply glue the handle to the body for easier assembly - Print the handle with 5–6 perimeters for added strength - The 3MF file includes the updated handle - Use a smooth build plate and consider adding a brim for better adhesion Assembly Instructions for the Packout Box Mount (The holes for the heat-set inserts are only included in the dedicated print profile.)

- Heat-set 8 inserts into the bottom of the organizer body. - Attach the latch using 4 × 3.5×12 mm self-tapping screws.

- Screw in 8 × M4 screws, 20 mm long. - Glue the organizer handle in place. Notes:

- Versions for other battery brands can be made upon request - Feedback and comments are welcome! This organizer is an unofficial accessory and is not affiliated with or endorsed by Milwaukee.

Hilti Battery & Accessory Organizer

Keep your workshop organized with this sturdy and lightweight organizer designed for Hilti batteries and accessories .

🔧 Features

- Holds 8 Hilti batteries - Built-in recess for 125 mm cutting/grinding discs - Dedicated drill bit storage from 2 mm to 10 mm (0.5 mm increments) - Additional compartments for hex-shank drill and driver bits - Over 60 storage holes for standard 1/4-inch screwdriver bits - Strong yet lightweight construction, ideal for workshop organization and transporting your tools - Multiple body variants included to suit your needs 🛠 Assembly & Printing Tips

- Apply a small amount of plastic adhesive to the bottom of the handle mounting holes. - Press the handle firmly into place using even pressure until it is fully seated. - Alternatively, you can simply glue the handle to the body for a quicker assembly. - For maximum strength, print the handle with 5–6 perimeters . - For the best print quality, use a smooth build plate and add a brim if needed to improve bed adhesion. 📝 Notes

- Versions for other battery platforms can be created upon request. - Your feedback, makes, ratings, and comments are always appreciated!

Disclaimer: This organizer is an unofficial accessory. It is not affiliated with, authorized, sponsored, or endorsed by Hilti .

Before leaving a negative review, please check your printer calibration and filament settings. All of my models have been thoroughly tested, and if you follow a few simple printing guidelines, you should achieve excellent results.
