Cabinet Glass Pane Clip (Customizable Dimensions)

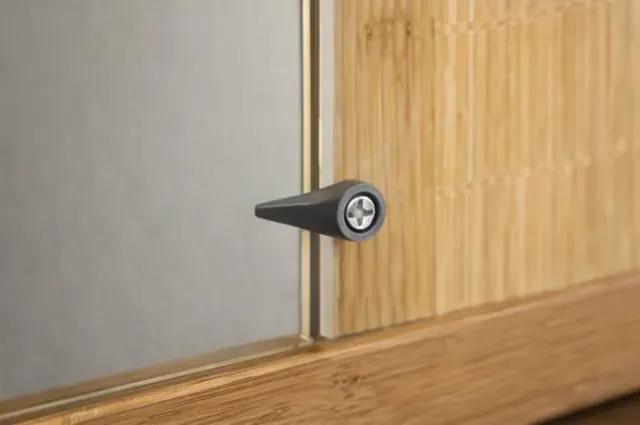

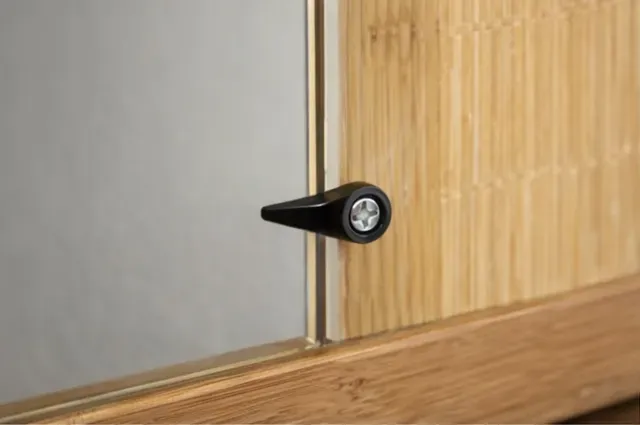

This is a 3D-printed, circular-based glass pane clip designed to secure glass panels inside cabinetry or furniture. The main body features an 11mm wide circular base with a total length (including a conical side tab) of about 25.8mm. It stands 4.2mm tall and has a pre-cut hole of approximately 4.0-4.1mm in diameter to accommodate a standard screw.

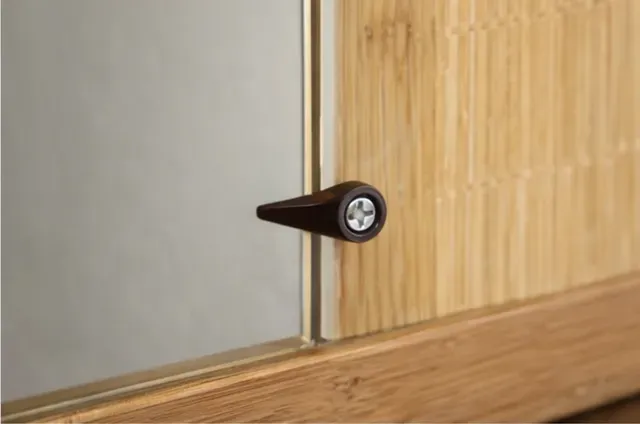

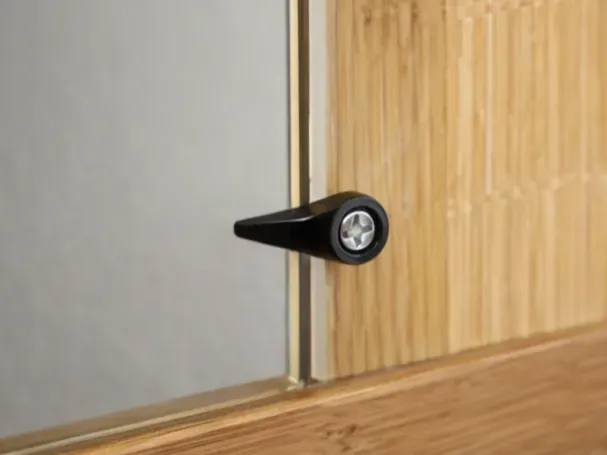

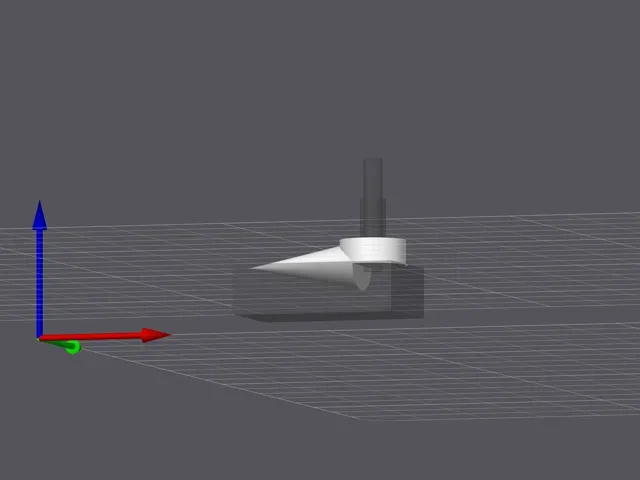

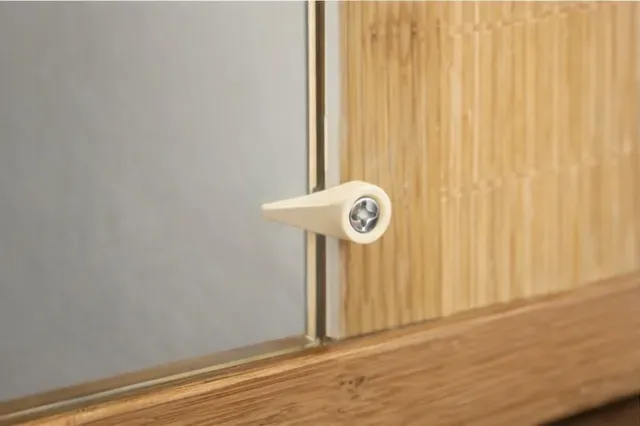

This clip is ideal as a replacement part for securing glass in place, and it’s customizable to fit different cabinet designs. By default, it’s sized for a roughly 4mm diameter screw (commonly known as an M4 screw). However, the included editable design lets you adjust hole size, tab length, and other dimensions in Bambu Studio to suit your needs.

Print Options:

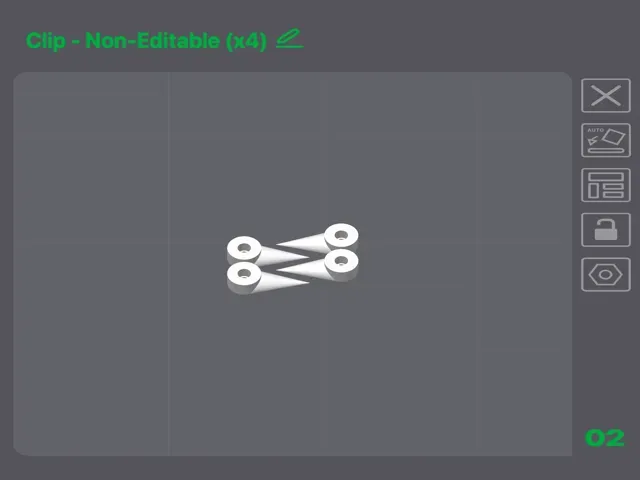

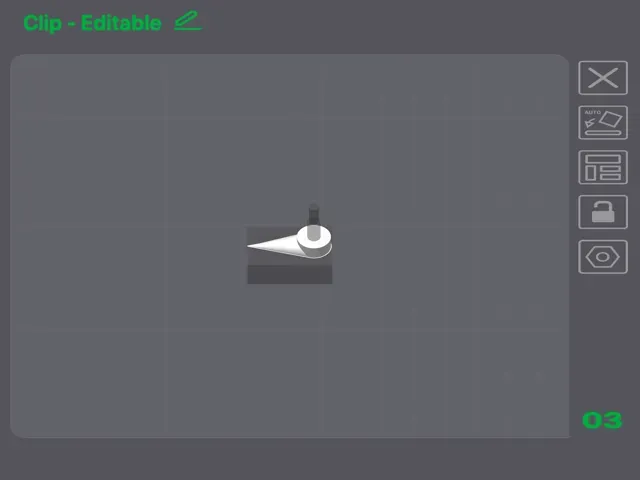

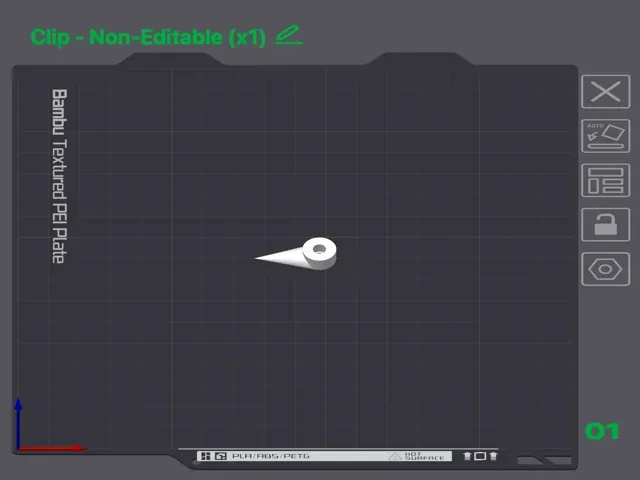

- Plate 1: "Clip - Non-Editable (x1)" – A single, ready-to-print clip if you only need one. - Plate 2: "Clip - Non-Editable (x4)" – A set of four identical clips for larger projects or multiple replacements. - Plate 3: "Clip - Editable" – A fully customizable version with all parameters adjustable in Bambu Studio, allowing you to modify dimensions and settings as needed.
