Commodore 64 Cartridge Case

An all new Commodore 64 cartridge case designed from scratch.

The model started as a Facebook community request to find or design a stubby cart case for custom cart PCBs.

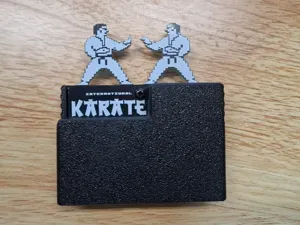

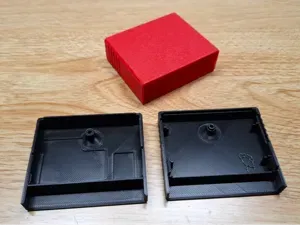

With no suitable options already existing for a short case, I set out to create one which evolved into a range of cases, including this version of a full sized original.

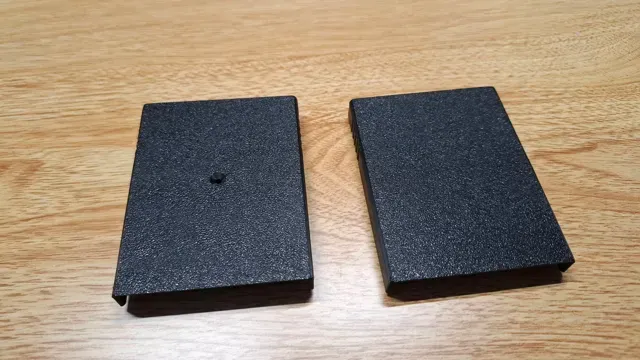

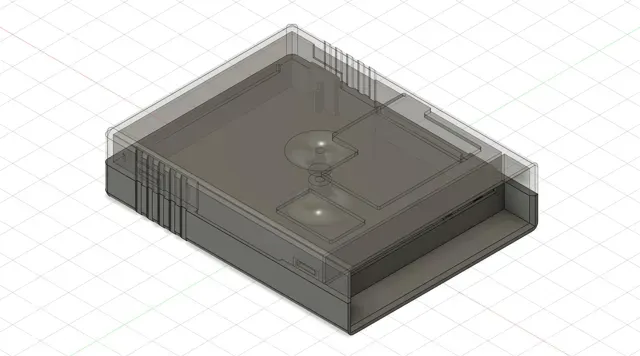

Modelled closely from an original case design, this print features a tight snap lock design with a satisfying connection.

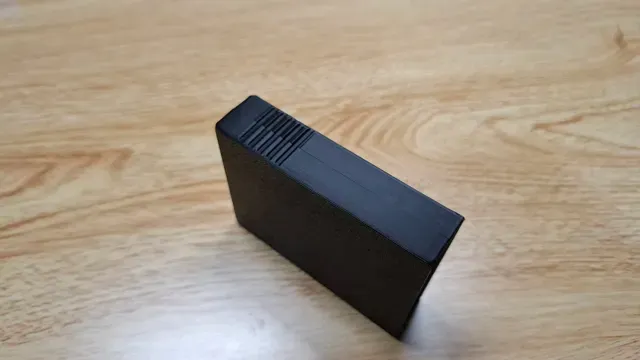

The ribbed sections are only present on the sides to enable a flat printing surface but still enables a place to grip if you have a tight C64 cartridge slot.

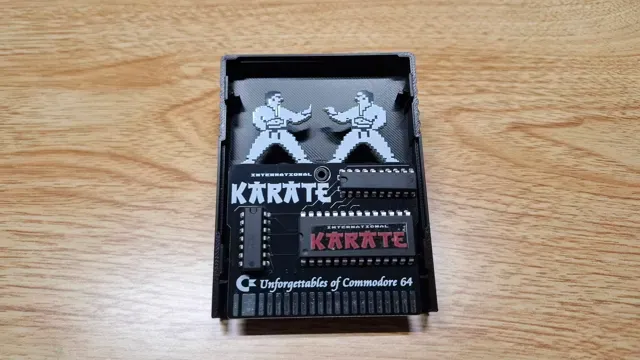

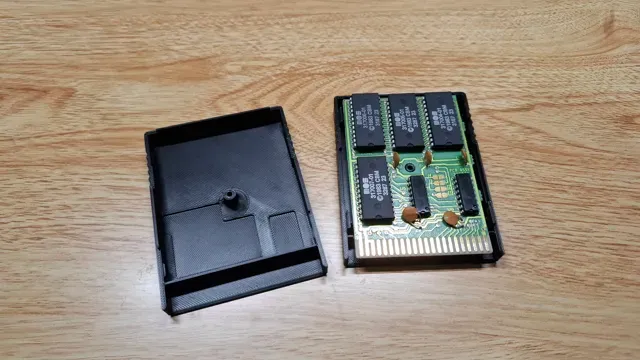

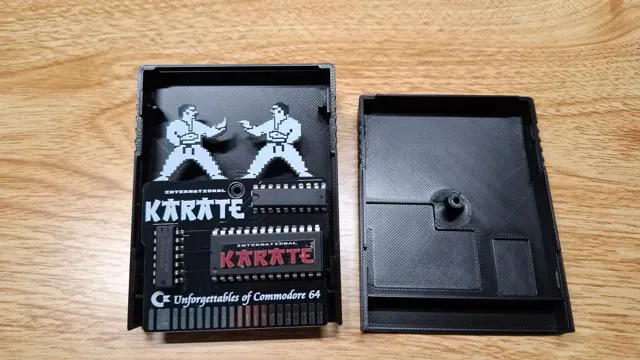

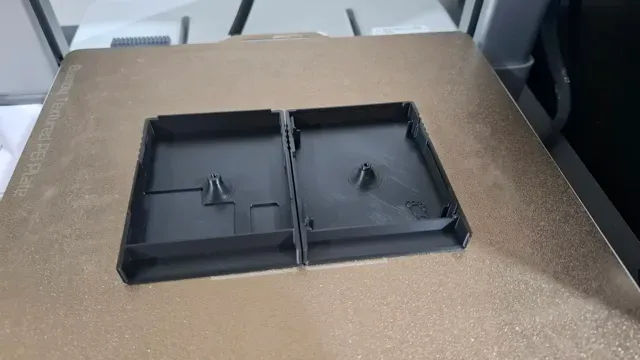

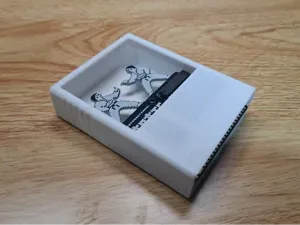

Cut outs exist internally for a number of custom PBC cartridges to cater for the extra chip height if sockets are used.

Given the tight fit snap lock design, I recommend to avoid printing in silk PLA. However, this also means you may be able to get away without using a screw to hold the case together.

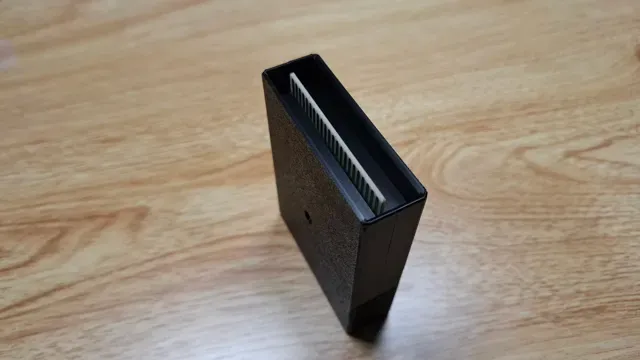

If you want to use a screw the recommended size is M2.6x16.
