N-Works Internal poop bin for the Elegoo CC

Summary

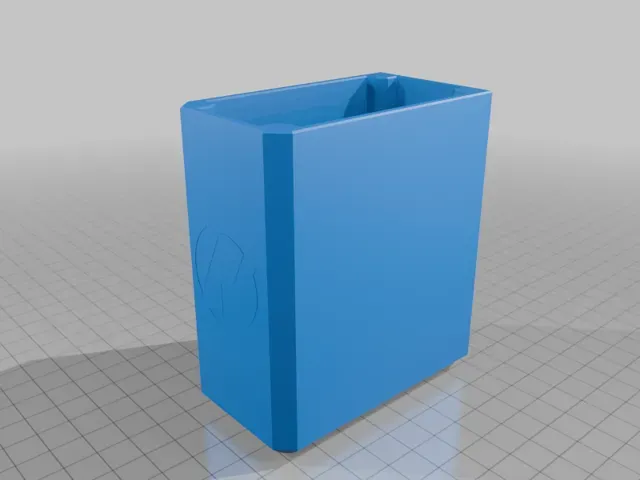

N-Works Internal poop bin

for Elegoo Centauri Carbon

There are 2 versions!

-The first one is the version as seen in the videos and pictures I posted. -The second one has the ending "gap". This version got a 1mm bigger gap between the poop bin and the print bed in case the normal version is to tight for you.

Update:

The "internal poop bin" and "internal poop bin gap" have been updated to fit better alongside the Internal spool holder . If you want to upgrade from the old version you only need to print "internal poop bin" or "internal poop bin gap".

The Instructions where created with the old poop bin design. The installation process stayed the same.

Additional parts needed:

8X Magnets d:5mm h:1,5mm

Print instructions:

-The parts are already rotated correctly. -Both parts need 4 magnets (d:5mm; h:1.5mm) inserted in them while printing. -For the magnets add a pause at the highest layer height before the 4 holes gets closed up again. -Ensure the magnets are rotated correctly! -Fixate the magnets with a little bit of glue to ensure that the tool head wont pull them out again. -Resume the print and wait for the finished part.

Install instructions:

1. Remove the old poop shoot by removing the 4 Crews on the back. While unscrewing the last screw hold the poop shoot so it wont just drop.

2. Remove all parts from the poop shoot. (swing door, swing arm, nozzle wiper)

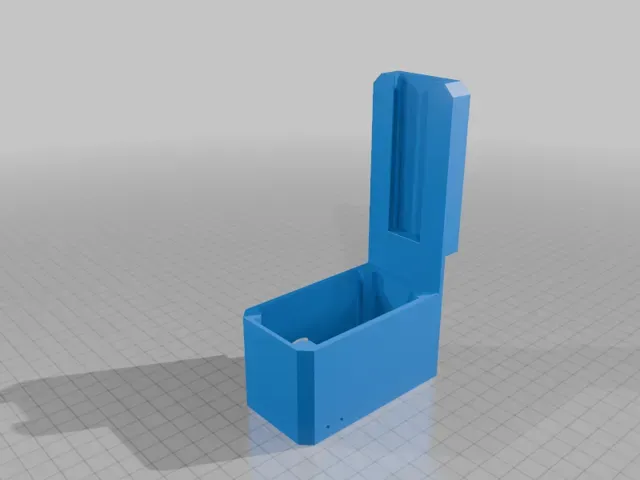

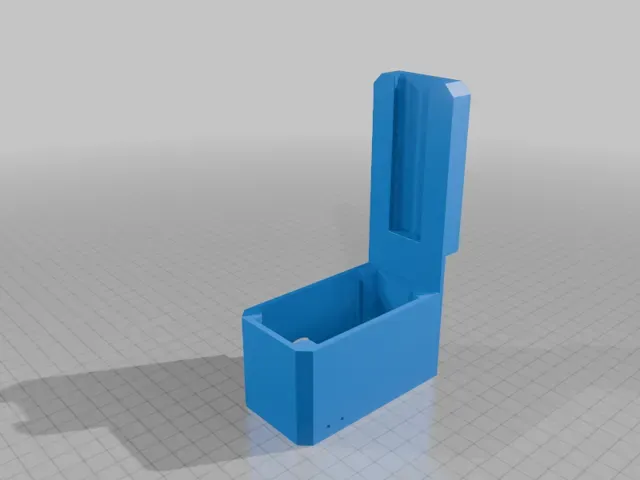

3. Attach the parts to "Internal poop bin holder" the same way as they were on the original poop shoot.

4. Test the swing arm. If it moves easily proceed. If not, unscrew the screw attaching the swig arm to the swing door a little bit.

5. Install the "Internal poop bin holder" in the same place as the original poop shoot. (Long screws go in the top holes and the short ones in the bottom holes.)

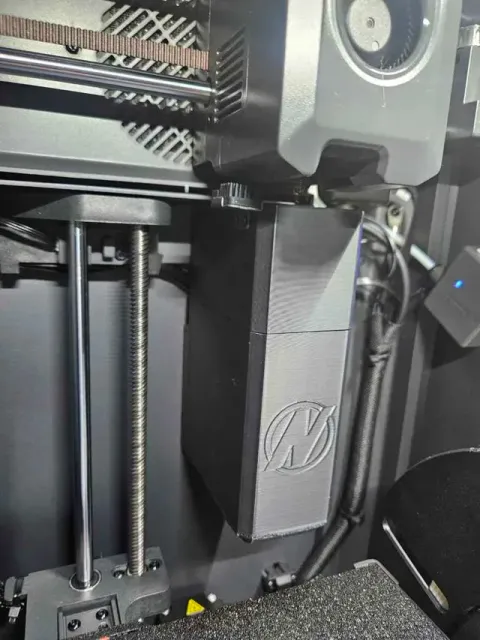

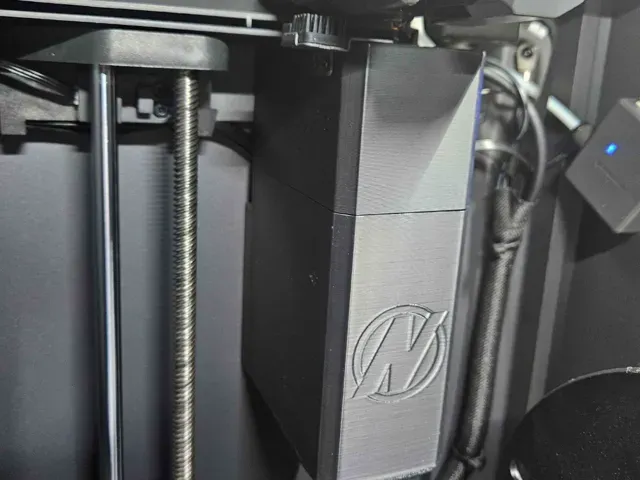

6. Slide in the "Internal poop bin" from below.
