Elegoo Centauri Carbon Filter HEPA + Active Carbon

This is a HEPA filter with activated carbon for the Elegoo Centuari Carbon 3D printer. It attaches to the rear of the printer's cabinet fan outlet. It features a HEPA filter stage followed by an activated carbon stage.

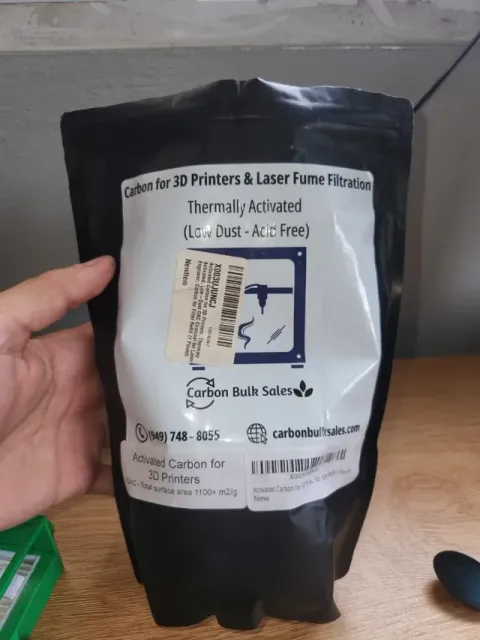

It is recommended to use acid-free activated carbon to avoid damaging the printer.

Materials: - HEPA paper - HEPA filters (Size 80x40x15mm) - Activated carbon - 3D printing filament

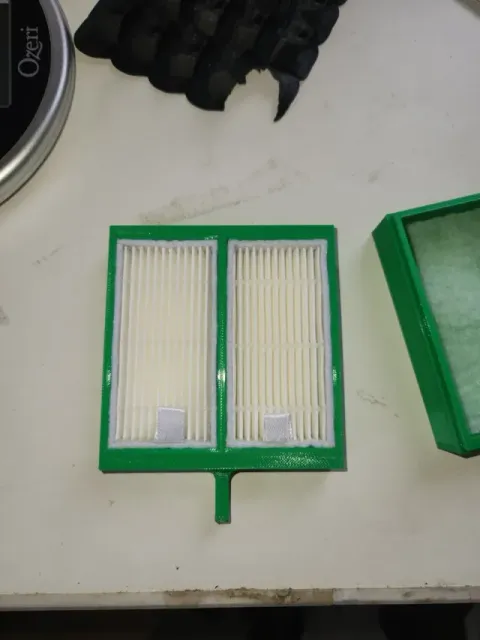

Installation steps: 1. Place the 2 HEPA filters (Size 80x40x15mm)

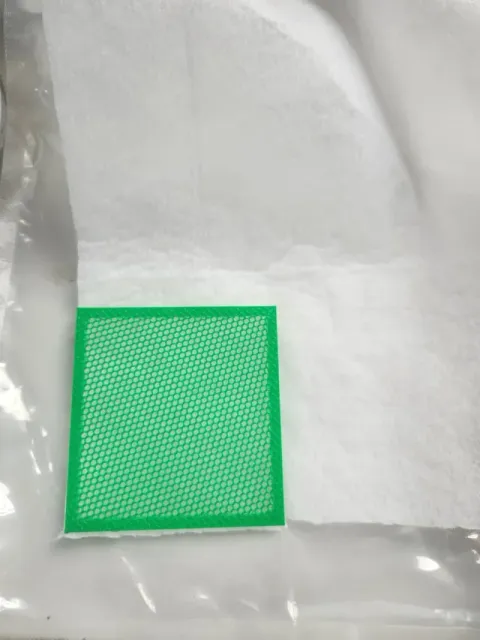

2. Cut out two rectangles from HEPA paper and then place them. You can print the cutting guide.

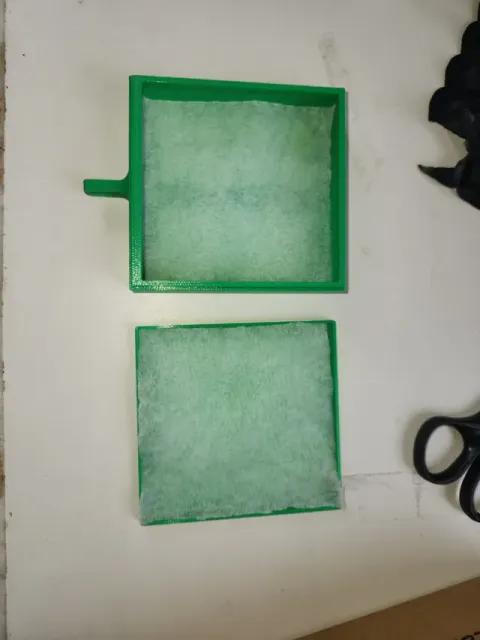

3. Fill the part called "carbon" with activated carbon and then put the lid on.

4. Place all the parts in their correct positions, first the HEPA filters and then the activated carbon.

5. Remove those 2 screws from the back panel.

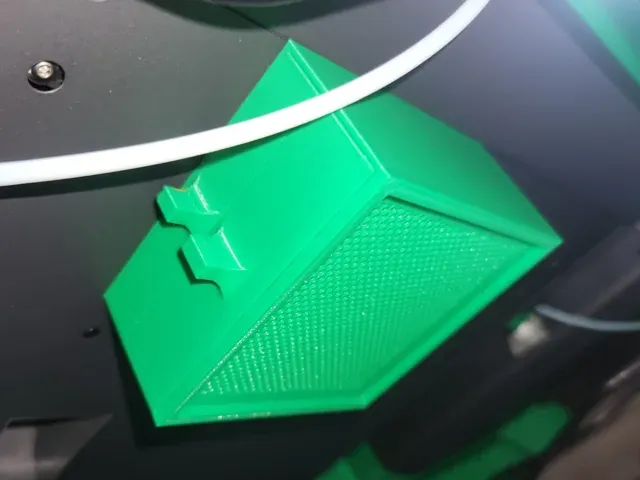

6. Place the fully assembled filter in place and reuse the screws.
