Ball Bearing Assembly

Design Concept

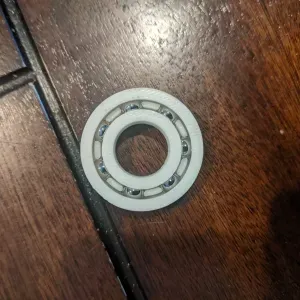

This ball bearing assembly is designed to demonstrate the concept and functionality of a standard ball bearing using 3D printing technology.

Uses

Ideal for educational purposes or as a mechanical demonstration model, this assembly helps in understanding the mechanics of rotational movement and friction reduction.

Printing Recommendations

Print each component separately and ensure high precision to facilitate the smooth movement of the balls within the bearings. High-quality PLA or ABS can be used to ensure durability.

Assembly Instructions

Once all parts are printed, carefully fit the balls into their designated grooves, ensuring they rotate freely. Assemble the inner and outer rings, making sure all parts move smoothly for educational or demonstration use. WD 40 silicone is recommended for smoother rotation. Uses 1/4 inch ball bearings
