Magnetic iPad Pro 12.9" Rotating Wall Mount

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
STL
  • 59 Likes
  • 45 Downloads
  • 11 Makes
  • 291 Collected
  • 0 Boosts
  • 3 Comments
  • 0 Views

Author:tomtechie

Published

Description

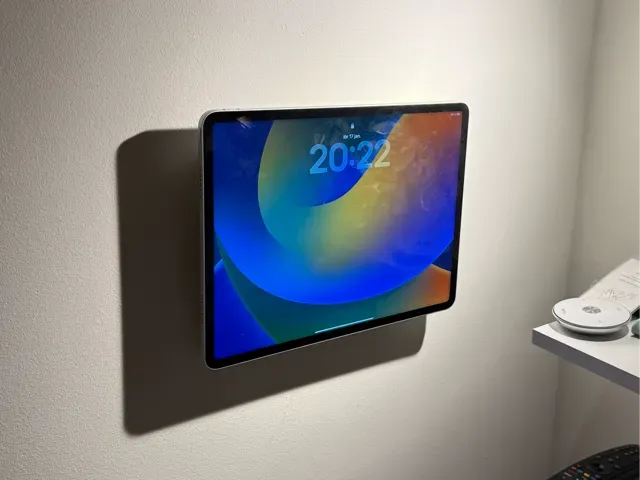

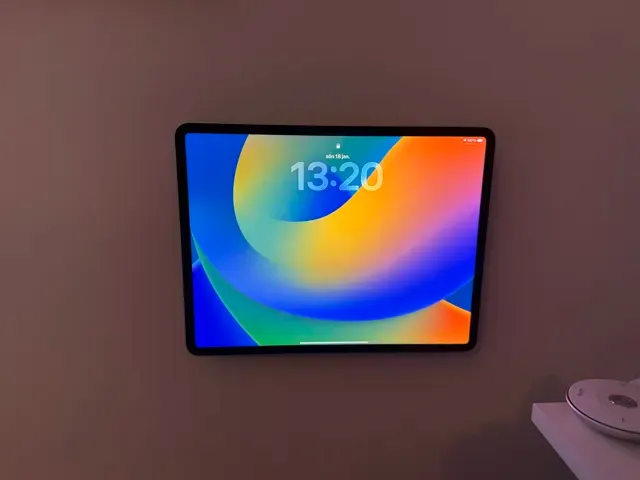

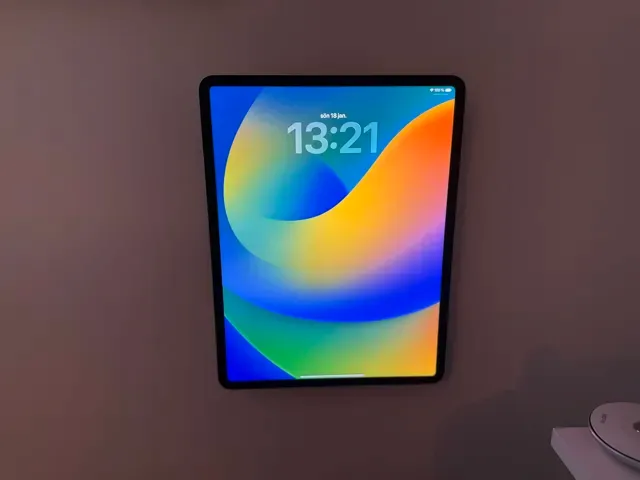

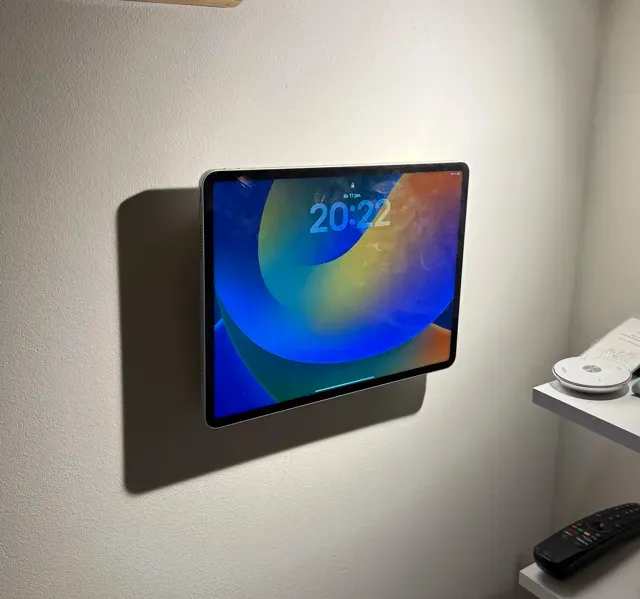

This is a low-profile magnetic wall mount for iPad Pro 12.9" , designed to keep the iPad very close to the wall while still allowing it to rotate freely .

The mount uses a strong magnetic coupling between the wall mount and the rotating plate, combined with smaller magnets attached to the iPad itself. This makes it easy to mount, remove, and rotate the iPad without visible brackets or bulky arms.

Perfect for:

- Smart home dashboards - Kitchen or hallway mounts - Office or workshop displays - Clean, minimal installations How it works

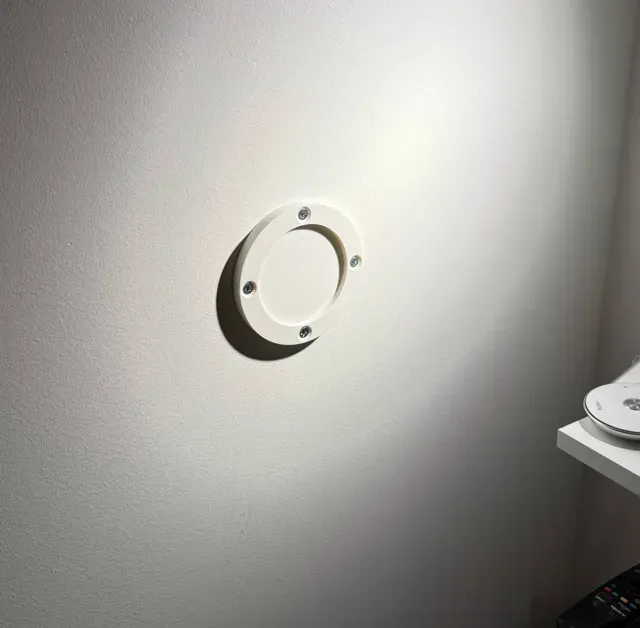

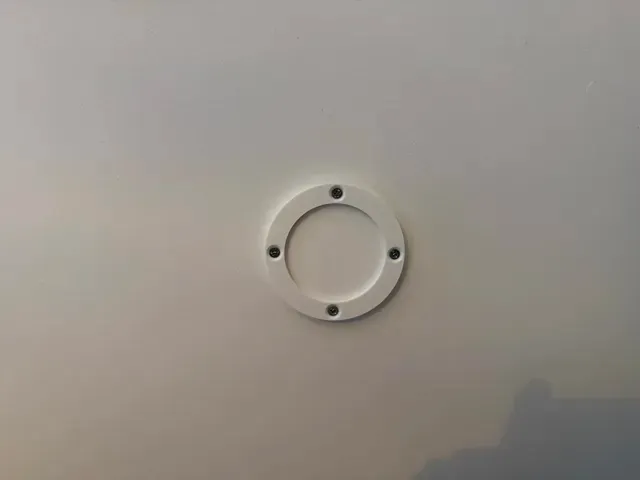

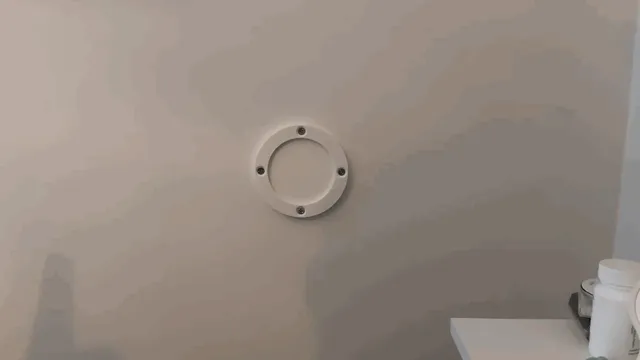

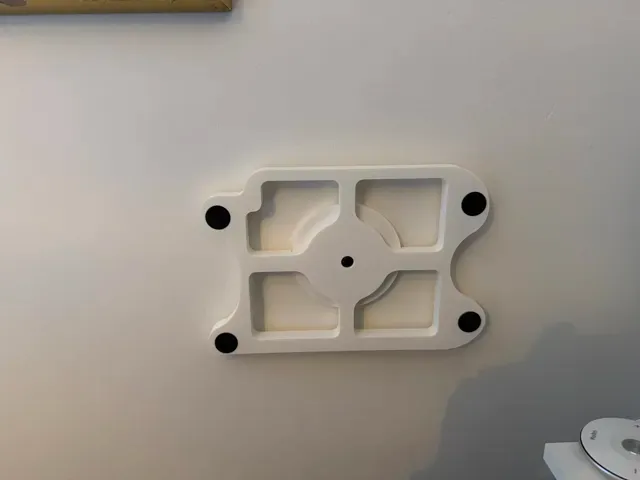

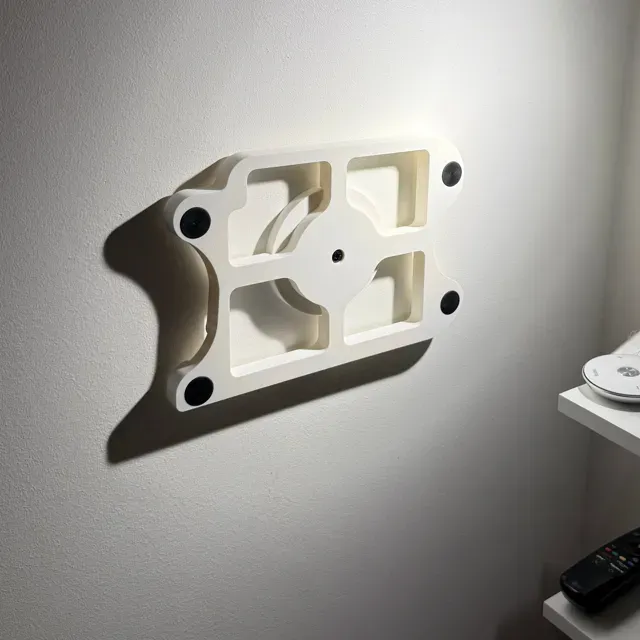

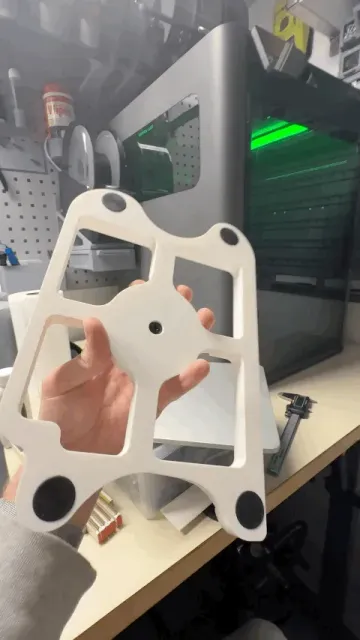

- The wall mount is fixed to the wall using 4 screws . - Inside the wall mount is a 70 mm metal plate , so you only need to screw the mount to the wall once. - A rotating magnetic plate attaches to the wall mount using a large Ø66 mm rubber-coated magnet , allowing smooth rotation. - The iPad attaches to the rotating plate using four Ø22 mm rubber-coated magnets , keeping it secure while still easy to remove. The result is a stable, strong, and freely rotating mount that sits very close to the wall.

Required hardware

- 1 × Smoke detector mounting plate - 1 × Rubber-coated neodymium magnet Ø66 mm - 4 × Rubber-coated neodymium magnets Ø22 mm - 4 × M4 × 10 mm screws - 1 × M6 × 10 mm screw - 4 × Wall screws (type depends on wall material) Notes

- Designed specifically for iPad Pro 12.9" M2 (2022) But should work with most newer iPad Pro 12.9. Please add a comment with the specific model you have tried the model on. - Magnets are strong – handle with care during assembly

Guides and print profiles

Print profiles and steps

iPadPro12.9H2
