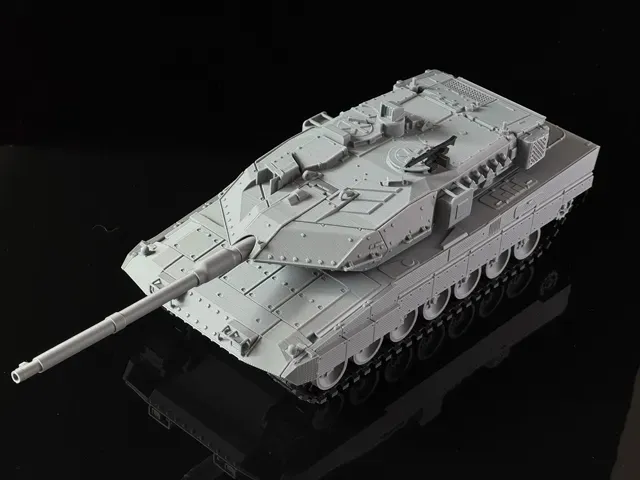

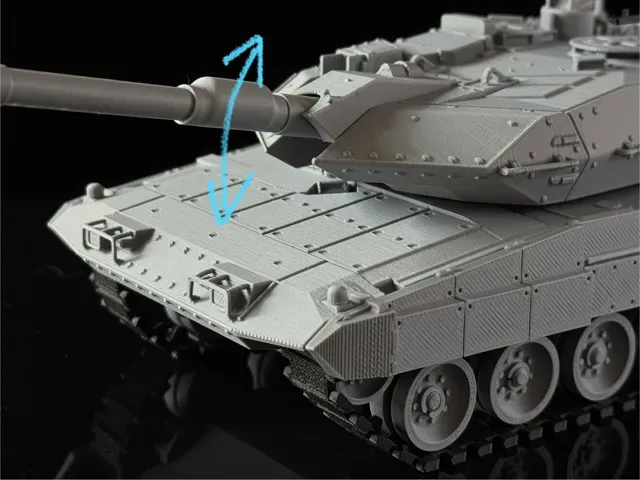

Leopard 2 A7 Main Battle Tank Movable Cannon 1/35

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
3MFSTL
  • 3 993 Likes
  • 8 314 Downloads
  • 2 354 Makes
  • 10 795 Collected
  • 592 Boosts
  • 502 Comments
  • 0 Views

Author:Bavaria_3D Tanks

Published

Description

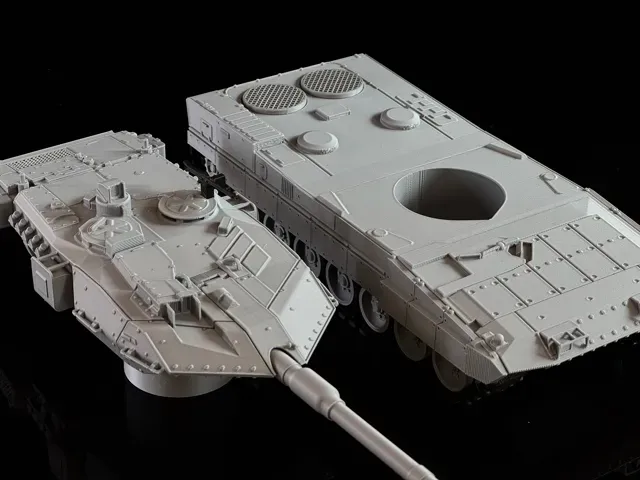

Some of you noted disliking the conical turret base— I used it for support-free printing and smooth rotation. I’ve now updated it to a teardrop-shaped base : still support-free, still spins perfectly, and the turret won’t fall out easily!

================================

📋 Recommended Print Settings (For Best Results)

- Filament: PLA. Different materials have different shrink rates, so using other filaments might cause fitting issues or dimensional errors during assembly. - Slicer: Bambu Studio. I recommend using my default profile — I’ve tuned it specifically for this model. - Ambient Temperature: If you’re using an open-frame printer like the A1 or A1 Mini, keep your room above 20°C (68°F) to prevent warping. - Print Bed Preparation: Wash with soap and water, then dry thoroughly to ensure good adhesion. For small parts, apply a glue stick for better bed adhesion.  🔧 Assembly Diagram Notes

- Blue Lines: Require super glue for assembly. I use Gorilla Super Glue. - Yellow Lines: These are moving parts. Do not apply glue here.

Guides and print profiles

Guide files

Print profiles and steps

0.16mm layer, 2 walls, 7% infill

Rim Holder I designed a snug-fitting rim holder to secure the rims that kept coming loose. There are two versions with different hole diameters; you can use the one that suits your needs.

Magnetic Turret Base To address the issue of the turret constantly coming loose, I designed the connection point between the turret and the body to be magnetic. This way, the turret won't fall off even if you hold it upside down. You will need two 10x3mm neodymium magnets for this.
