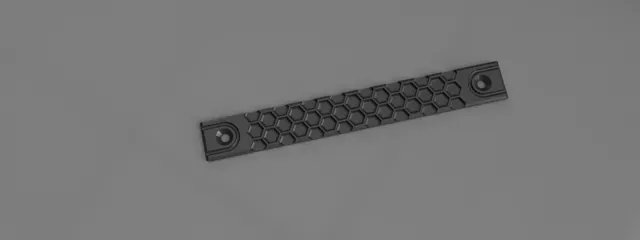

M-LOK Rail Cover - long (flat version)

M-LOK Rail Cover - long (flat version)

I needed M-LOK Rail cover for my airsoft sniper rifle (Silverback TAC-41). Unfortunately, all covers which I have found are only for “rounded” barrels, so I remixed the original version to the flat one.

Installation:

You do not have to buy overpriced M-LOK nuts and screws. I recommend check these:

- M4x12mm (or M4x8mm, depends on your barrel) Flat Head Socket Cap Screws Countersunk Bolts, Alloy Steel Class 10.9 Black Oxide ( M4 x 12mm Flat Head Socket Cap Screws Countersunk Bolts, Alloy Steel Class 10.9 Black Oxide, DIN 7991, 50 PCS: Amazon.com: Industrial & Scientific ) - M4 Sliding T Slot Nut Hammer Head Fastener Nut ( SpzcdZa 2020 Series T Nuts,105pcs M4 Sliding T Slot Nut Hammer Head Fastener Nut Nickel Plated Carbon Steel, M4 Half Round Roll in T-Nut for 2020 Series Aluminum Extrusion Profile: Amazon.com: Industrial & Scientific ) .STL file included - please rescale model to 140 mm length (X axis) in your slicer.

I also uploaded the original .STL file - long “rounded” version of rail.

Printing:

- PETG or better - 100% infill (anyway 25 % triangular would be sufficient) - no support - 0,10 mm layer heigh (Prusa Mini Quality profile) - ironing - not required but it looks much better with ironing ON!
