Double-Wide Mounting Plates (40mm) | Heavy Duty

Model details

Platform
MakerWorld
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
STL
  • 24 Likes
  • 102 Downloads
  • 68 Makes
  • 60 Collected
  • 0 Boosts
  • 3 Comments
  • 0 Views

This model on other platforms

Author:Mateusz Tokarz

Published

Download on MakerWorld

Description

Boost Me When a single row of screws isn't enough, use these double-wide (40mm) plates. Designed for heavy structural connections where preventing rotation is key. Perfect for joining wood, 3D printed frames, or robotics chassis.

Key Features:

- Double Width: 40mm wide profile allows for two rows of screws, providing much better stability and anti-rotation than standard flat bars. - Reinforced Design: 3mm thickness + reinforced perimeters around holes. - M4 Compatibility: Standard holes sized for M4 screws. The Set Includes 7 Versions:

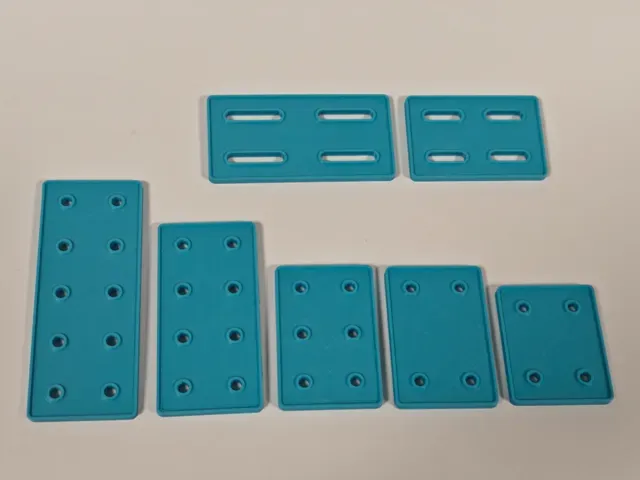

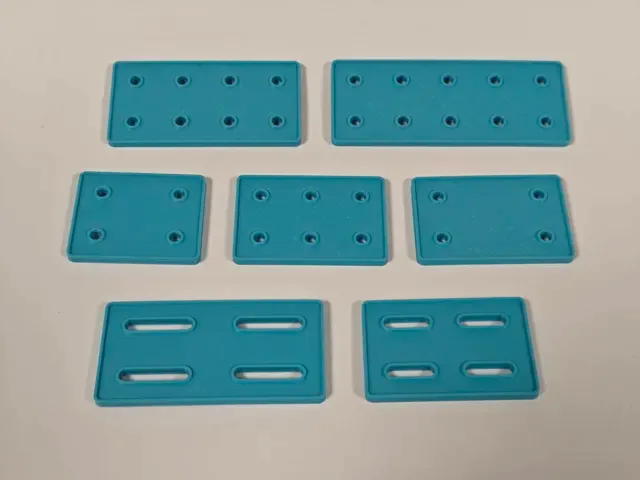

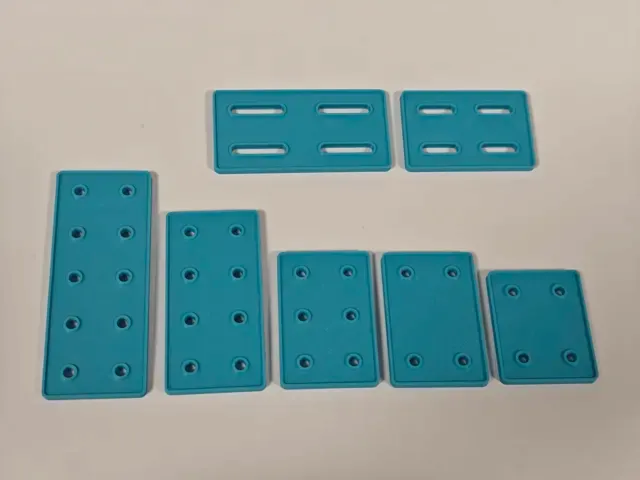

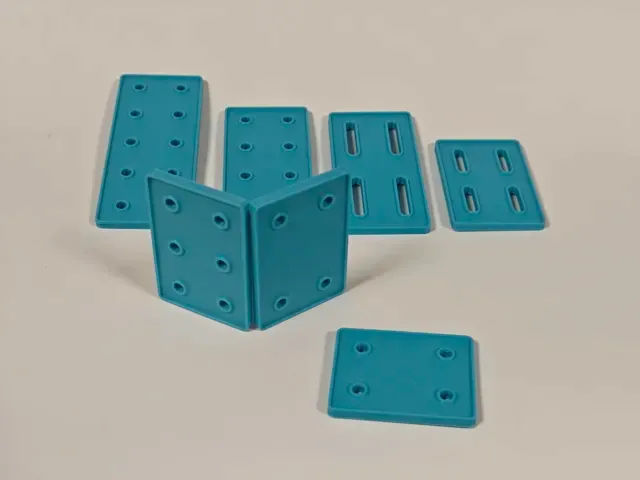

- Standard Holes (Double Row): - 50mm - 60mm - 80mm - 100mm - Adjustable Slotted Holes (Double Row): - 60mm (Slotted for adjustment) - 80mm (Slotted for adjustment) Printing Instructions:

- Orientation: Print flat on the bed. - Material: PETG, ASA, or PLA+ (Standard PLA is fine for prototyping).When a single row of screws isn't enough, use these double-wide (40mm) plates. Designed for heavy structural connections where preventing rotation is key. Perfect for joining wood, 3D printed frames, or robotics chassis. - Key Features: - Double Width: 40mm wide profile allows for two rows of screws, providing much better stability and anti-rotation than standard flat bars. - Reinforced Design: 3mm thickness + reinforced perimeters around holes. - M4 Compatibility: Standard holes sized for M4 screws. - The Set Includes 7 Versions: - Standard Holes (Double Row): - 50mm - 60mm - 80mm - 100mm - Adjustable Slotted Holes (Double Row): - 60mm (Slotted for adjustment) - 80mm (Slotted for adjustment) - Printing Instructions: - Orientation: Print flat on the bed. - Material: PETG, ASA, or PLA+ (Standard PLA is fine for prototyping).
