Filament swatches storage gridfinity AMS Riser v2

Model details

Platform
MakerWorld
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
STEP
  • 11 Likes
  • 10 Downloads
  • 5 Makes
  • 40 Collected
  • 0 Boosts
  • 0 Comments
  • 0 Views

Author:brzaki

Published

Download on MakerWorld

Description

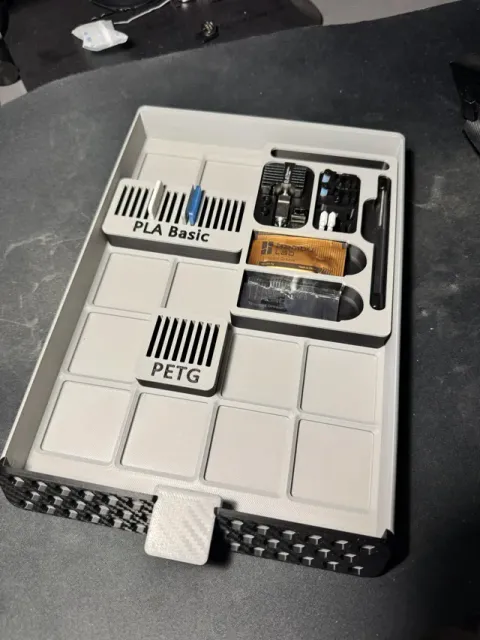

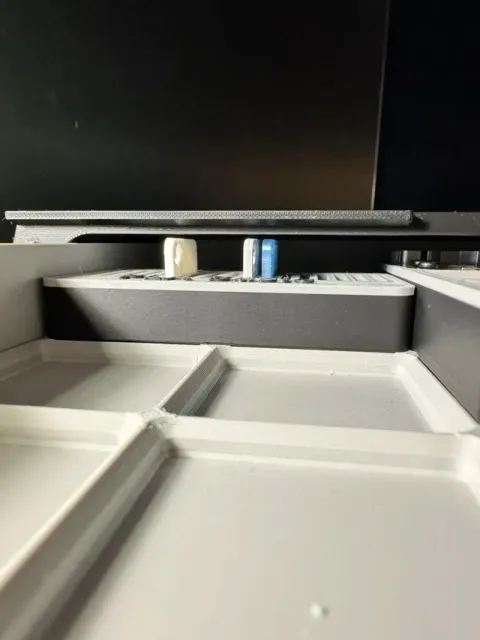

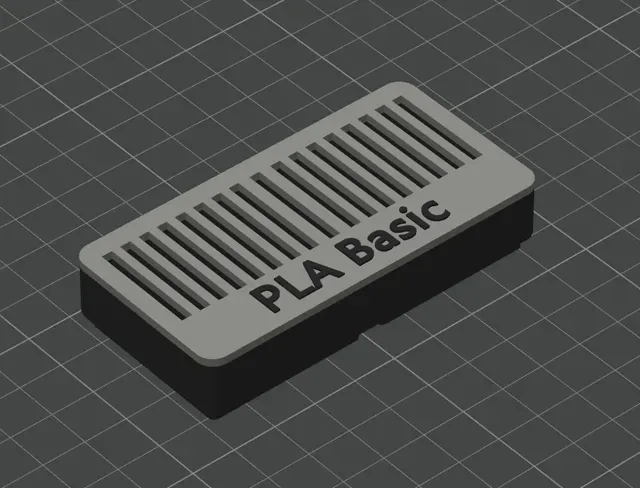

These Gridfinity filament swatch holders are specifically designed for AMS Riser v2 drawers . Standard Gridfinity swatch boxes are too tall and do not fit inside the drawers properly. This design features a reduced overall height as well as lowered swatch slots , allowing the drawer to close smoothly without any issues.

Gridfinity field sizes with different swatch capacities:

1x1: 8 swatches 1x2: 17 swatches 1x3: 26 swatches

⚠️ Note: The 1x2 and 1x3 versions include swatch slots at the connection points between Gridfinity fields. These slots are slightly shallower than the others due to the available height limitations of the model. They fit very tightly within the AMS Riser v2 drawer. If this is an issue, those specific slots can simply be left unused 🙂

Guides and print profiles

Print profiles and steps

0.20mm layer, 2 walls, 7% infill - 0.20mm layer height is enough - print without supports - 7% infill is totally enough, can be less
