Cherry MX Profile Keycap – Flat F1 Logo Design

Boost Me Updated Version Available

A new expanded and optimized version of this design is now available.

The new version includes:

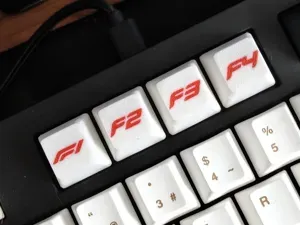

- F1, F2, F3 and F4 keycaps - Reduced color change layers (less material waste) - Improved multi-color print efficiency You can find it here: https://makerworld.com/es/models/2405882-cherry-mx-profile-keycaps-flat-f1-f4-logos#profileId-2637351

Description

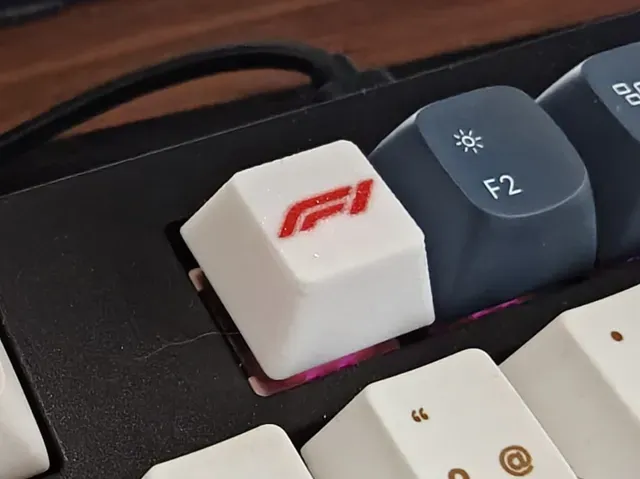

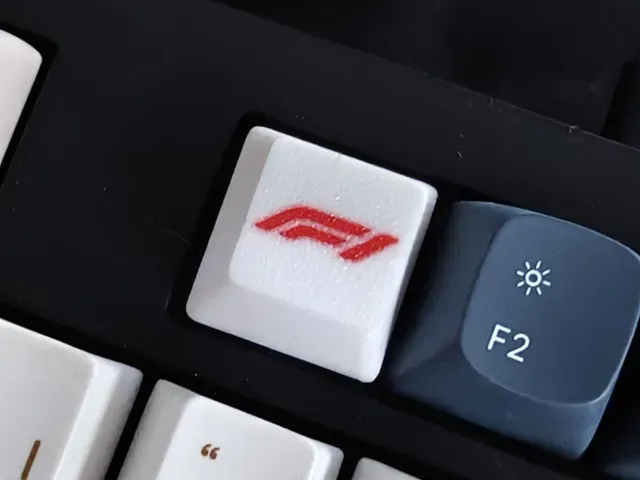

This is a Cherry MX profile keycap featuring a flat Formula 1 inspired logo on the top surface. The logo is integrated into the top layer without embossing or debossing, resulting in a clean and smooth finish.

Designed for standard MX-style mechanical keyboard switches.

Print Settings (Tested)

Printed successfully using the following setup:

- Printer: Bambu Lab A1 Combo - Nozzle: 0.4 mm - Build Plate: Textured PEI plate (creates the visible surface texture) - Multi-material: Bambu Lab AMS Lite Print Profile

- Layer Height: 0.1 mm - Walls: 4 - Top Layers: 7 - Bottom Layers: 5 - Top Surface Density: 100% - Infill: 15% Grid - Supports: Not required Materials:

- White: Elegoo Matte White PLA - Red: Bambu PLA Basic Red Printing Notes:

- Print upside down (top surface on the build plate). - No supports required. - AMS Lite recommended for clean color separation. - Textured plate will affect the visible surface finish. Tips

- Make sure your first layer is well calibrated for best surface finish. - AMS / multi-material recommended for best color result. Disclaimer

This is a fan-made design and is not affiliated with or endorsed by Formula 1.
