Description

The P1P/P1S has no or a weak LED light inside the printers enclosure.

This model is designed for 8mm LED light strips (COB or regular) should work. I've used the COB lights shown on the picture from Aliexpress because they make a great light.

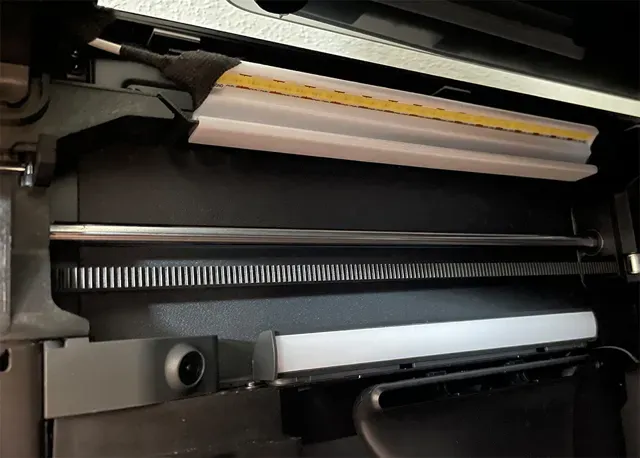

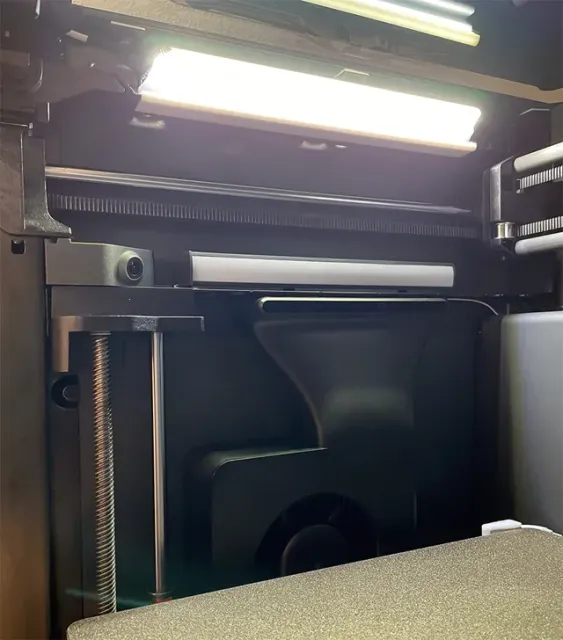

The LED light case can be just cliped on the existing frame of the printer on the top left side (see pics). The wire just needs to be connected to the PCB of the front screen by a connector or by a regular usb connector.

The LED light is always on, if the printer is on aswell… For the P1S you can still activate the stock LED bar if you want even more light :)

Feel free to mod this to add an switch for the LED light if you want to :)

Guides and print profiles

Print profiles and steps

0.2mm layer, 3 walls, 15% infill Printed using PLA+ on P1S.

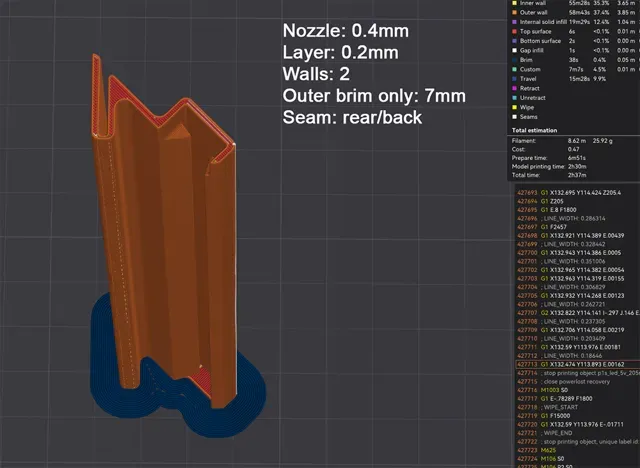

Print in vertical orientation to avoid the support mess I had, seen in the pictures (printed horizontal with supports)

This is a modified version of the creator's design, removed the bottom clip-on feature and made it flat to allow attachment with double sided tape. Also removed the end stop for the LED strip so the strip can extend past the holder and lengthened it to 235mm.

Layer height 0.2, 3walls, 5 top and 5 bottom layers, outer brim 5mm.
