Membership Join My Commercial License Program! Here is my Latest, The Updated AR-15 Multi Caliber Speed Loader / Unloader!

This new version like the v4 allows for loading 223, 556, 762x39, 300 blackout, but also now has a modified Trigger that easily allows you to unload those mags if you need to.

This version uses the Single Trigger design as I find it works best.  This new Trigger has a notch in the top that allows you to run the mag along the top and strip the rounds out smoothly and quickly.

This Loader also uses My Snap Fit Magazine Release.

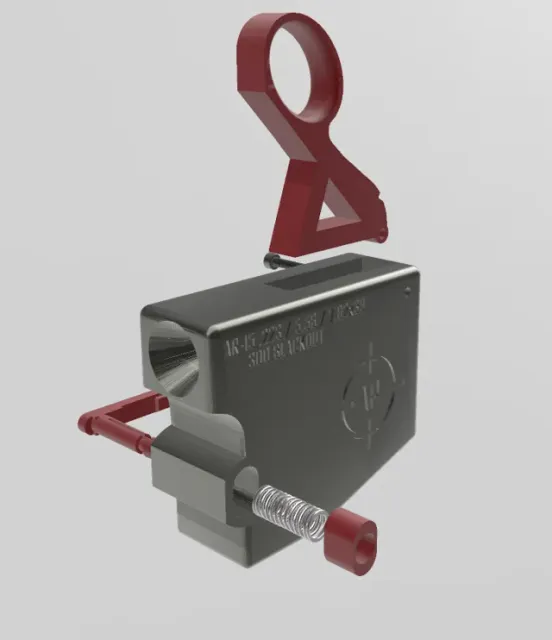

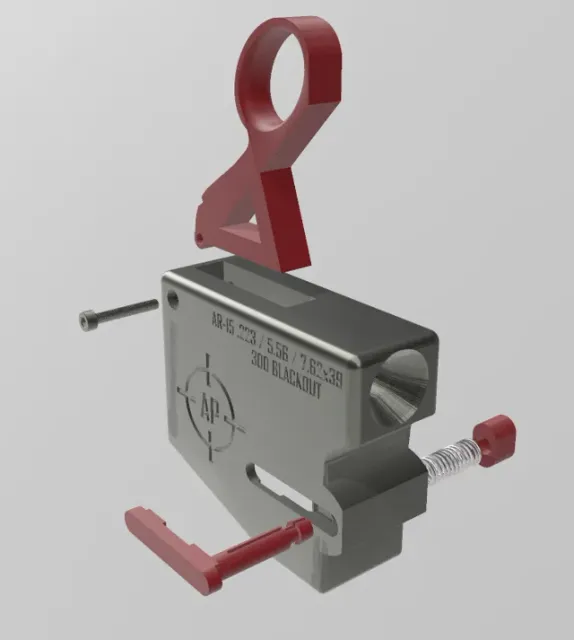

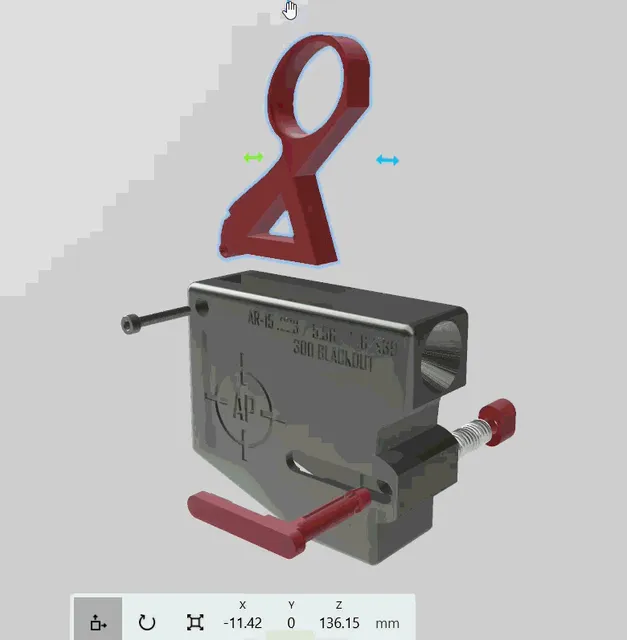

Assembly images can be found above

Hardware needed is the same as the others consisting of

1x m3 x 20/25mm socket head screw for Trigger Hinge Pin

1x 8mm OD 0.8wire x 15-20mm free length spring   https://a.co/d/0hX8dGyD

Function video below

Boost Me Every Boost Helps!  Thank you!

Guides and print profiles

Guide files

Print profiles and steps

0.2mm layer, 2 walls, 100% infill Profile changed from print by object to print by layer to allow for other printer options.

0.2mm layer, 2 walls, 100% infill Standard .2 resolution profile

30% infill for the Body

100% infill for the Magazine Release, Button and Trigger

Material; ESUN PLA

0.2mm layer, 2 walls, 100% infill Optional Mag Catch / Release

Simpler to print, just as reliable.

Hardware Required

1 x m4 x 30mm socket head screw

1 x spring 8mm OD, 15mm Length, 0.8 wire

Assembly

Thread m4 screw completely into release button, install spring over screw threads or place inside loader body hole, hold mag catch bar in loader body cavity, thread m4 into catch until flush.  adjust in or out as necessary.

Print 100% infill pla is more than adequate.
