Under Desk Drawer Modular | Push Lock| Gridfinity

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
STL
  • 7 439 Likes
  • 9 594 Downloads
  • 3 104 Makes
  • 25 268 Collected
  • 275 Boosts
  • 361 Comments
  • 0 Views

Author:Matthew Ghost

Published

Download on MakerWorld

Description

Update (27.2.2026): A Radius has been added to the Pin to prevent demage.

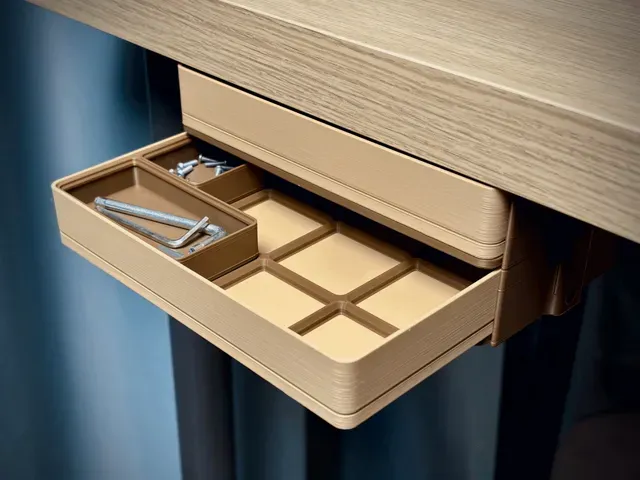

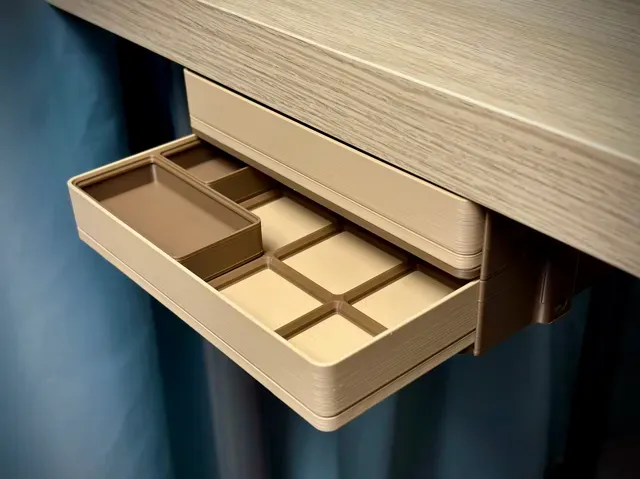

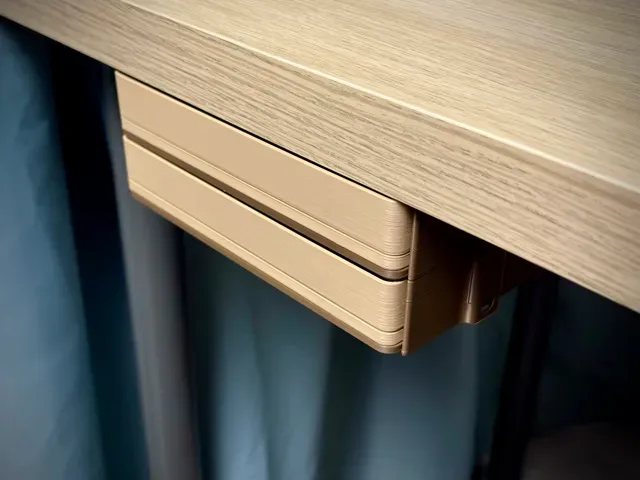

Under Desk Drawer is a drawer system mounted under the desk that helps organize tools and small items without taking up desk space. 🧰 It supports Gridfinity 4x3 layout and uses a push-push mechanism for opening and closing. The design allows stacking multiple drawers vertically as a modular system. 🚀

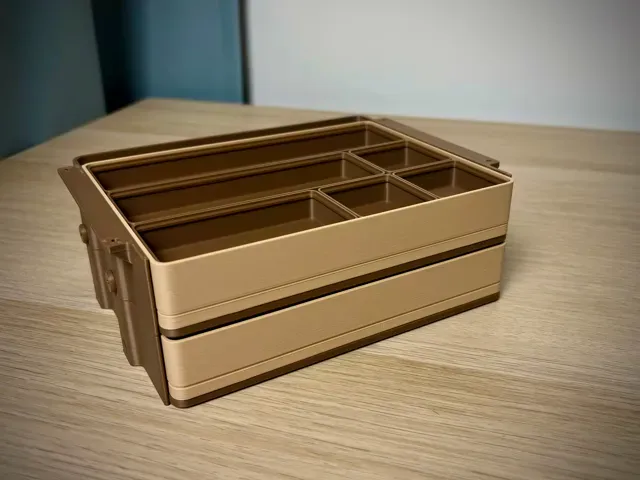

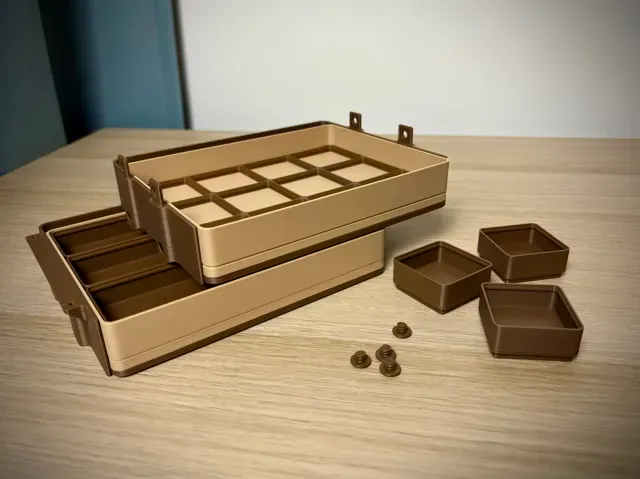

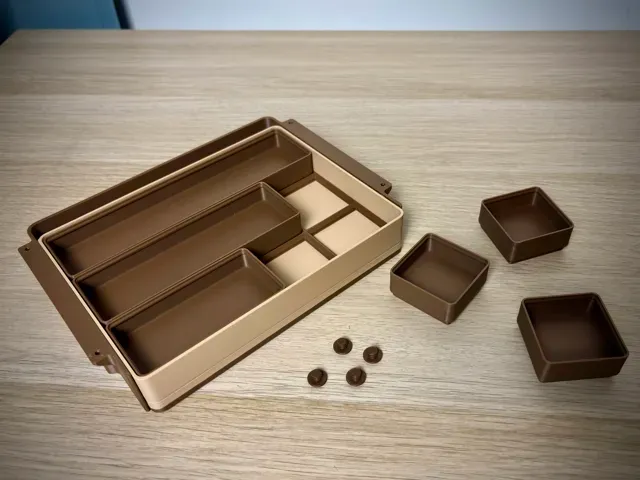

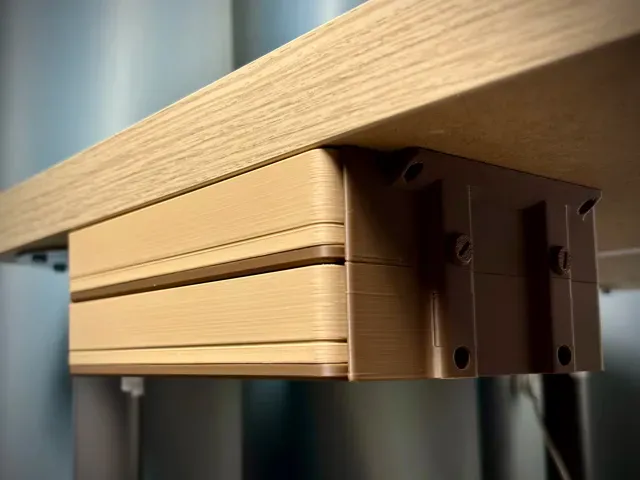

- Push-Push Mechanism - Opening and closing is handled by an elastic band system. No handle required. - Gridfinity 4x3 Compatible - Designed for standard 42×42 mm Gridfinity layout. - Uses 21 mm height boxes – available here: https://makerworld.com/en/models/440625-gridfinity-boxes-for-gridfinity-with-pin#profileId-346311 - Modular Stackable System 📦 - Not recommended to stack more than 4 drawers. - Drawers are connected using 4× 06_Screw – Modular (printed screws). - Dimensions of Drawer 185 × 142 × 32 mm - 🔩 Mounting Options - - 02_Case – Base includes 4 mounting holes Ø 3.2 mm for screws . - Strong double-sided adhesive tape can also be used. - Elastic band required: 1.4 × 35 mm ( 1.4 × 40 mm also works) - Assembly uses only printed screws . - Assembly is the same as the model Modular Desk Drawer | Push-Push Lock | Skadis. - I recommend printing from PETG (PLA works too, but it needs to be dried - This will prevent PLA from becoming brittle) Assembly instruction step by step👉:

Guides and print profiles

Print profiles and steps

Gridfinity Boxes

One Tier (0.2mm layer, 2 walls, 15% infill)

Three Tiers (0.2mm layer, 2 walls, 15% infill)

Two Tiers (0.2mm layer, 2 walls, 15% infill)

Eco-Efficient & Clean Surface | 0.20mm Standard This print profile is meticulously tuned for the best balance between material savings, printing speed, and flawless surface quality. If you want to save filament without compromising the look of your model, this is the profile for you.

Key Optimizations:

- Eco-Friendly: Reduced wall count (2 walls) and optimized infill (8-10%) to save up to 25% of material compared to standard profiles. - Time Saver: Enabled Infill Combination , allowing the printer to bridge internal layers and finish the print significantly faster. - Superior Surface: Uses Arachne Wall Generator for precise geometry and Monotonic Lines for perfectly smooth top and bottom surfaces. - Zero Waste: Fully optimized for support-free printing. No wasted plastic on supports or rafts. - Visual Quality: Outer wall speed is slightly reduced to ensure a premium, matte/glossy finish without ringing or defects. Recommended Settings:

- Printer: Bambu Lab A1 / P1 / X1 series. - Filament: PLA, PETG, or Matte PLA (works best for this organizer style). - Plate: Textured PEI Plate recommended (no brim needed for most materials). Give your printer a break and save some filament while getting a result that looks like a professional product!

1 Plate, best speed, 0.24mm layer, 4 walls, 15% infill
