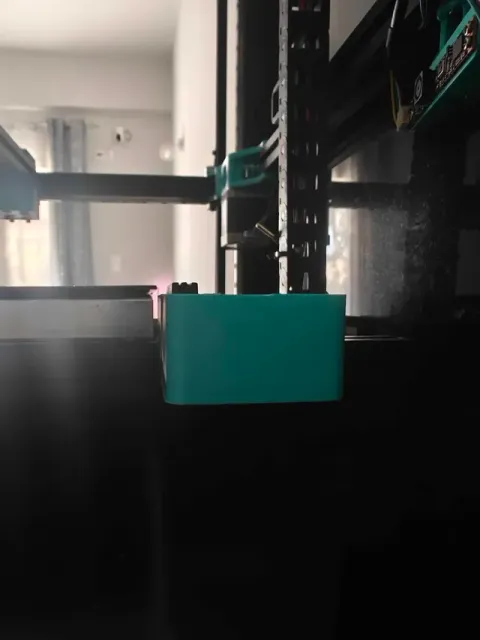

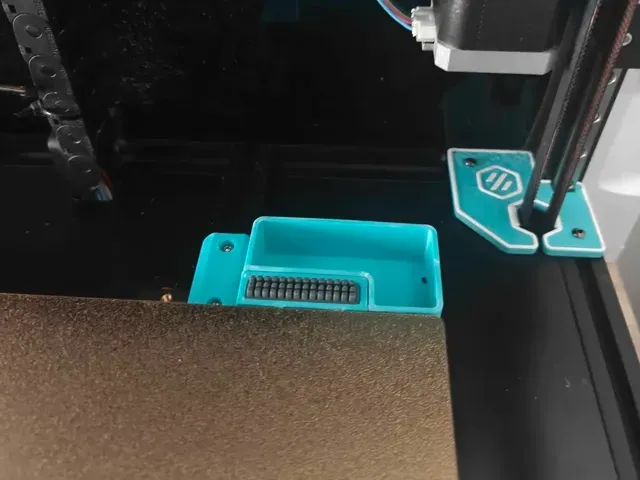

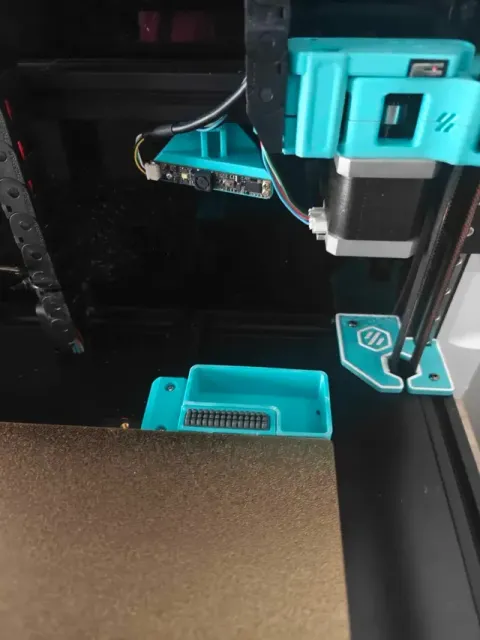

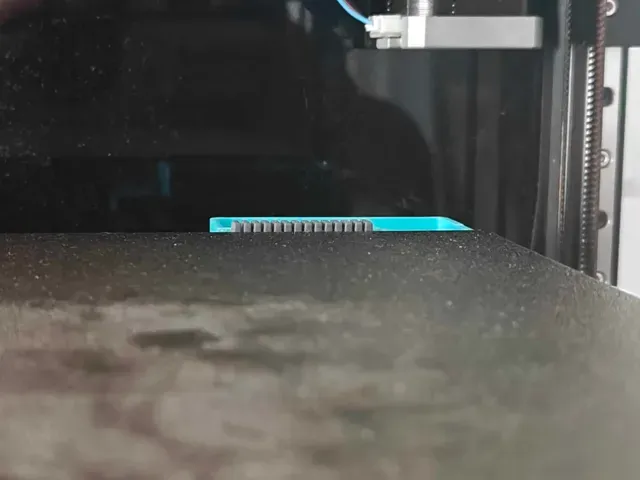

Nozzle Brusher (Supports Cartographer3D)

This innovative model introduces compatibility with a plastic brusher designed specifically for effective nozzle cleaning. Additionally, the model supports Cartographer 3D

Please prefer to use ABS or ASA filaments.

Print Settings:

- 3 perimeters - 4 top/bottom layers - 15% infill - Filament Types: ABS, ASA GCODE SHOULD BE CHANGE BASED ON THE PRINTER SETTINGS

[gcode_macro CLEAN_NOZZLE] variable_start_x: 290 variable_start_y: 300 variable_start_z: 1.000 variable_wipe_dist: -55 variable_wipe_qty: 10 variable_wipe_spd: 200 variable_raise_distance: 30

gcode: {% if "xyz" not in printer.toolhead.homed_axes %} G28 {% endif %}

G90               ; absolute positioning ## Move nozzle to start position G1 X{start_x} Y{start_y} F6000 G1 Z{start_z} F1500

## Wipe nozzle {% for wipes in range(1, (wipe_qty + 1)) %} G1 X{start_x + wipe_dist} F{wipe_spd * 60} G1 X{start_x} F{wipe_spd * 60} {% endfor %}

## Raise nozzle G1 Z{raise_distance}
