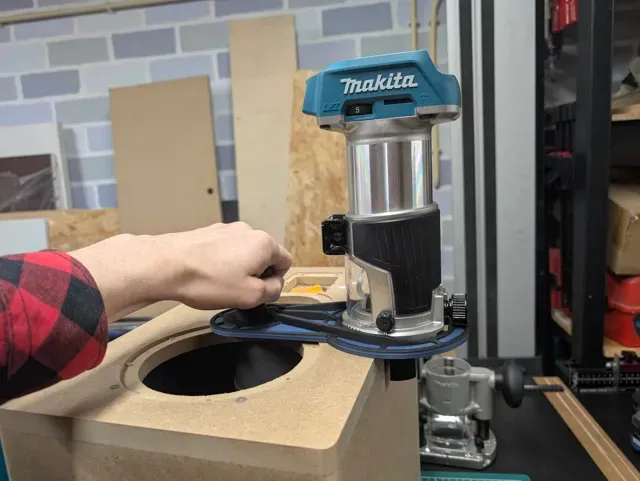

Makita Trimmer Router Stability Base Plate — Image 2 of 9
Makita Trimmer Router Stability Base Plate — Image 3 of 9
Makita Trimmer Router Stability Base Plate — Image 4 of 9
Makita Trimmer Router Stability Base Plate — Image 5 of 9
Makita Trimmer Router Stability Base Plate — Image 6 of 9
Makita Trimmer Router Stability Base Plate — Image 7 of 9
Makita Trimmer Router Stability Base Plate — Image 8 of 9
Makita Trimmer Router Stability Base Plate — Image 9 of 9
3D model · MakerWorld

Makita Trimmer Router Stability Base Plate

Model details

Platform
MakerWorld
Price
Free
License
see the platform page
The author sets the terms — check them on the model page before printing for sale.
Formats
STEP
  • 336 Likes
  • 410 Downloads
  • 220 Makes
  • 1 206 Collected
  • 26 Boosts
  • 53 Comments
  • 0 Views

Author:Zwamdurkel

Published

Download on MakerWorld

Description

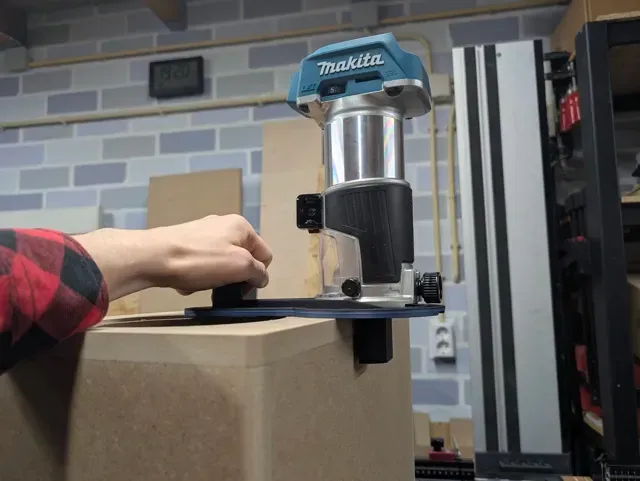

I made this router base plate because I wasn't satisfied by existing models.

Boost Me Boosting supports more high effort models in the future!

My model has the following unique features:

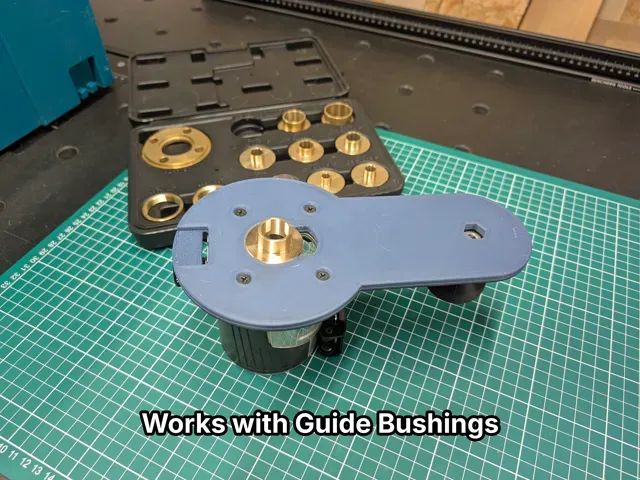

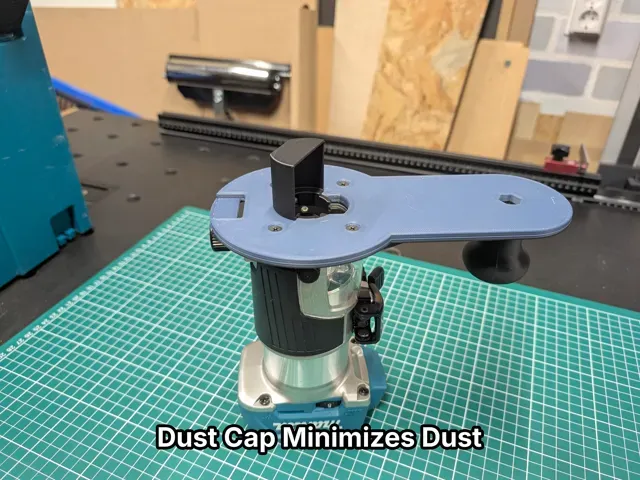

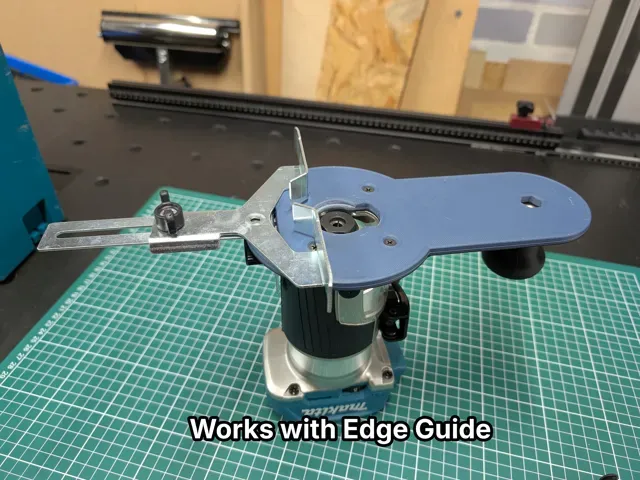

- Works with the edge guide - Works with Guide bushings - Has a dust cap to minimize dust - Makita knob can optionally be used - Can be used as a mini router table (clamp it) This base plate should work with the following routers:

- Makita LXT 18V DRT50 / XTR01 - Makita RT0700 / RT0701 / RT0702 - Makita XGT 40V RT001G / RT002G - Vevor routers that mimic Makita - Katsu routers that mimic Makita There are multiple options for the Handle

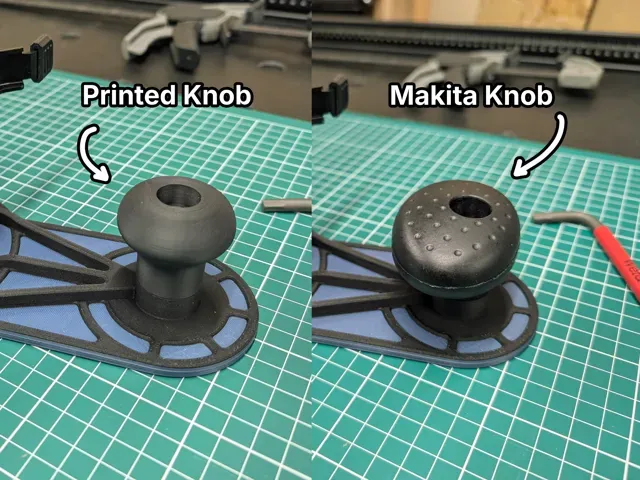

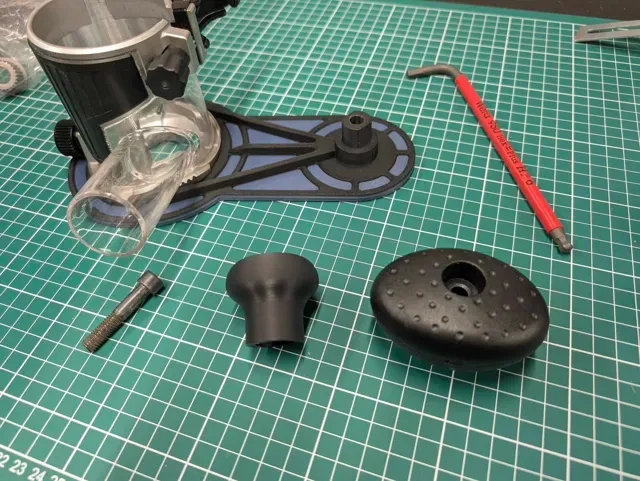

- Print the base plate and the handle as one piece. (No bolt required) - Print the base plate and knob separately and attach them with an M8×40 bolt and M8 nut - Print only the base plate attach a Makita knob (from the offset base) with M8×40 bolt and M8 nut

Guides and print profiles

Print profiles and steps

P- and X-Series printers | 3 Plates (Choose Knob Style) The profile prints per object. No unnecessary color changes.

A-Series printers | 4 Plates (Choose Knob Style) The profile prints per object. No unnecessary color changes.

H-Series printers | 3 Plates (Choose Knob Style) The profile prints per object. No unnecessary color changes.
