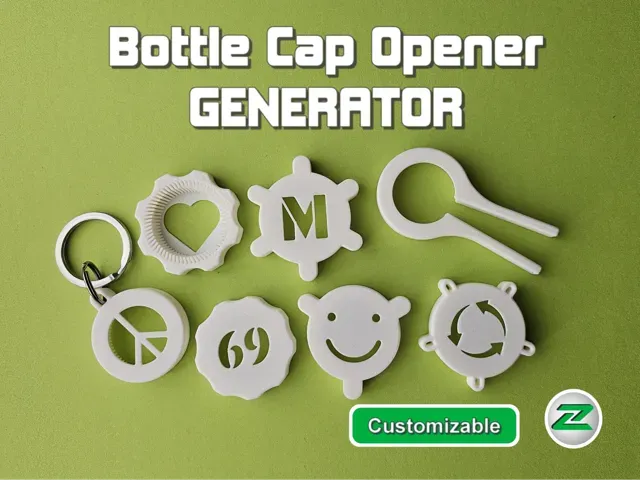

Bottle Cap Opener GENERATOR - customizable openers

With this GENERATOR you could create a Bottle Cap Opener for your individual needs. All predefined models were created so that they can be printed in the most time- and material-efficient way possible.

Four different layouts are available:

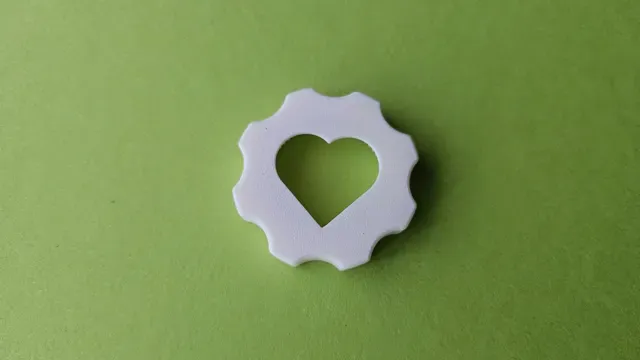

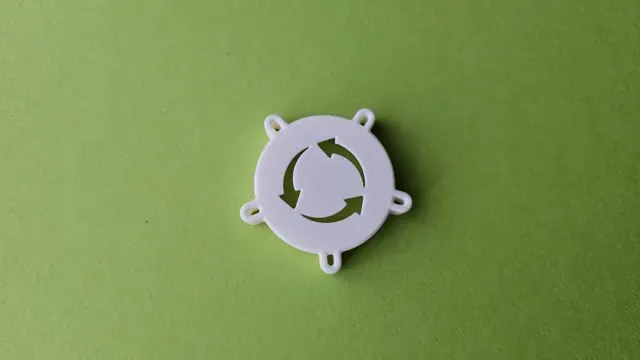

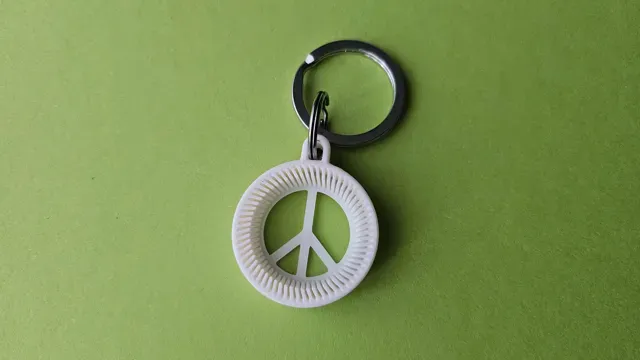

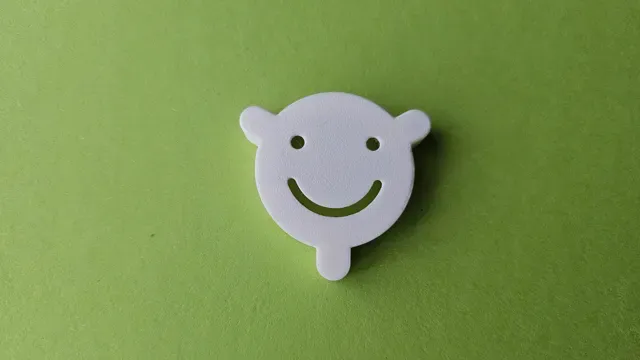

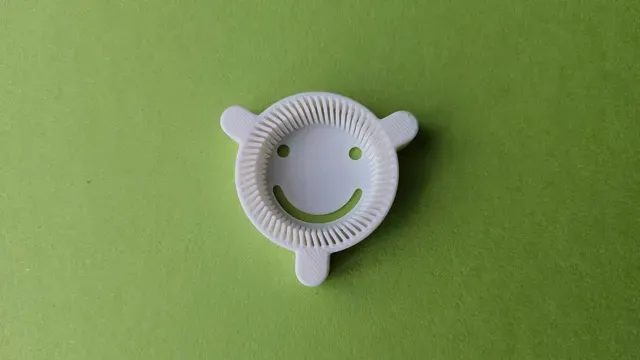

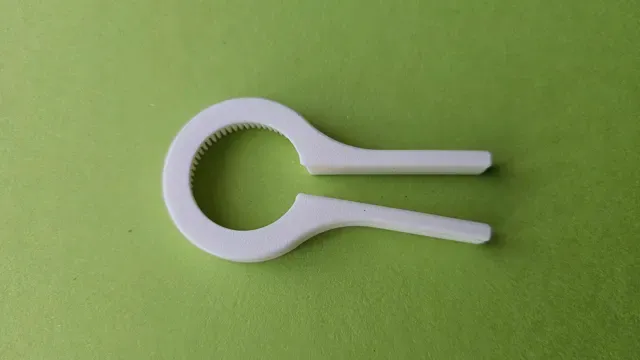

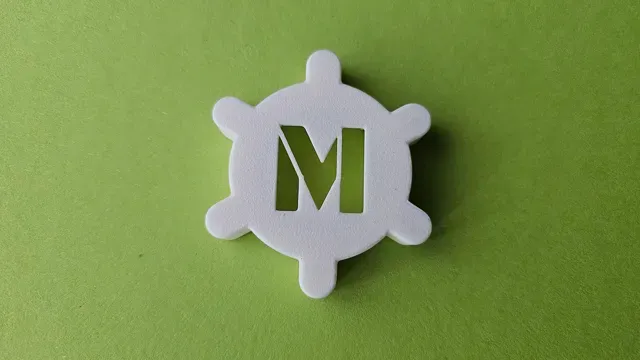

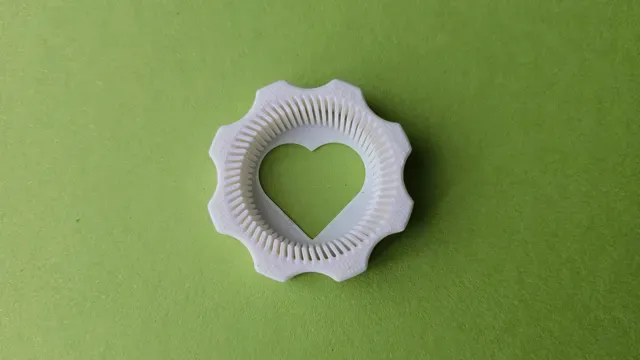

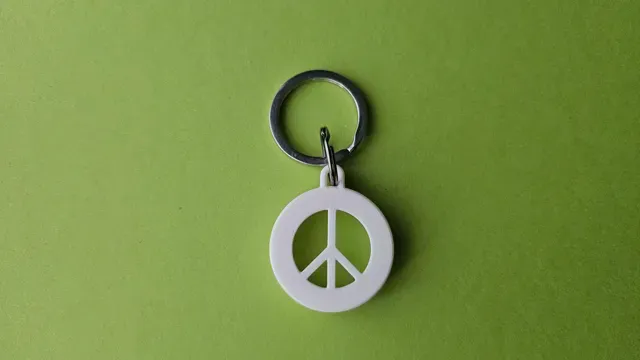

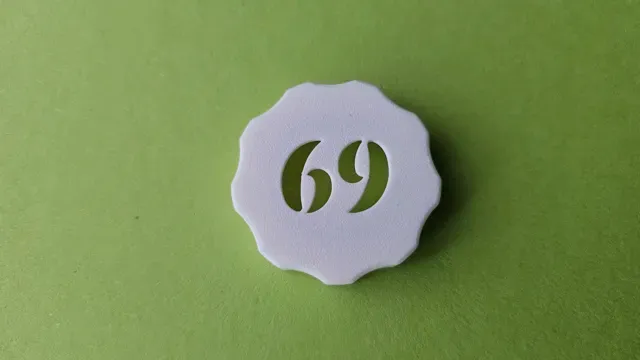

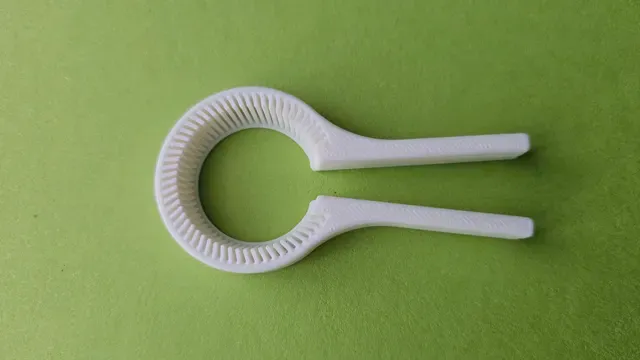

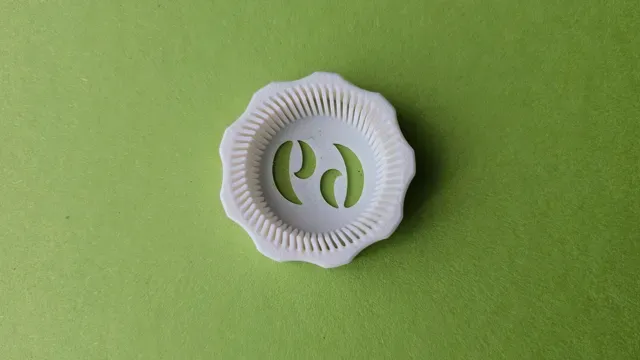

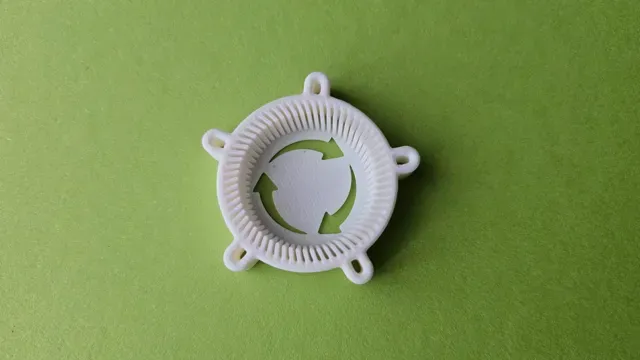

- Opener with a hole in the handles - Opener with closed handles - Opener with inverted holes as handles - Multi Size Opener To give the models a personal touch, there are several icons available that can be cut out on the top of the opener. It is also possible to use a personal text instead of an icon.

In addition to the icon or text, the following parameters are available to help you create the model to suit your requirements. The table contains also the values for the uploaded print profiles of the predefined samples:

Values of samples

Parameter 1 2 3 4 5 6 7 Unit Comment

pLayout 4 1 1 2 2 3 3   Opener layout 1: Hole in the handle 2: Closed handle 3:Inverted holes as handles 4:Multi Size

pOpenerHeight 10 10 10 10 10 10 10 mm Height of the opener

pOuterDiameter 40 40 40 40 40 40 40 mm Outer diameter of the opener (measured without handles)

pInnerDiameter 30.0 29.2 29.4 29.6 29.8 30.0 30.2 mm Inner diameter of the opener (should match the diameter of the cap)

pTolerance 1.2 1.2 1.2 1.2 1.2 1.2 1.2 mm Tolerance of inner diameter to fit caps with minor deviations

pWallThickness 2.0 2.0 2.0 1.6 1.6 2.0 2 mm Thickness of the outer wall

pHandleWidth 4 8 6 8 8 20 30 mm Width of the handles

pHandleLength 40 8 6 8 8 2 1 mm Length of the handles

pNumberOfHandles 2 1 5 3 6 8 9   Number of handles

pNumberOfSlats 56 64 64 64 64 64 64   Number of slats

If you have any requirements that cannot be met with the existing parameters, please send me a message.
