Suzuki Samurai SJ413 Offset 1DIN Radio with screen

Note: The 3D preview on MakerWorld may display the model incorrectly. This is only a viewer issue and does not affect the STL file. The model prints correctly when the flat back side is placed on the build plate.

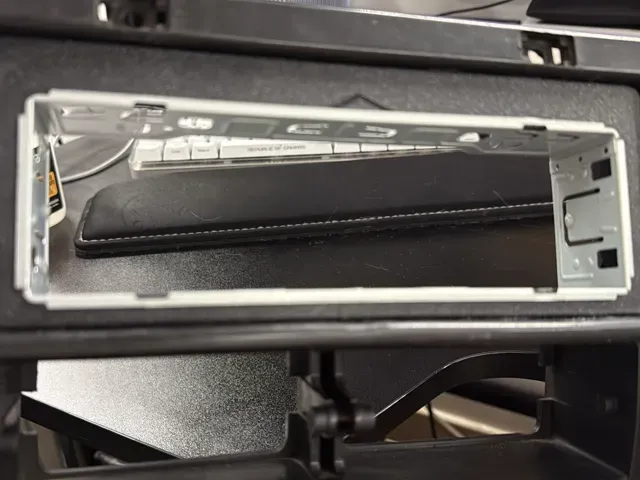

This 3D model is an offset radio mounting frame designed for the upper dashboard of the Suzuki Samurai SJ413.

It replaces the original clock location on the top center of the dashboard and allows installation of a 1DIN radio with a screen.

The mount is intentionally offset to provide extra clearance for radios with folding or protruding displays, preventing interference with the dashboard.

This solution is ideal for Suzuki Samurai owners who want to relocate their radio to the upper dash while using modern 1DIN screen units.

Features: • Designed for Suzuki Samurai SJ413 dashboard • Replaces the factory clock location • Offset design for 1DIN radios with screens • Provides clearance for flip-out displays • Clean and functional dashboard integration • Easy to print • No supports required

Material:  PETG

Print with the flat back side on the build plate.

This model is for this type of radio with a screen → https://es.aliexpress.com/item/1005008771532284.html?spm=a2g0o.order_list.order_list_main.64.66c3194dmsgQfk

Compatible with Bambu Lab printers and any FDM 3D printer.

If you print it, feel free to share your make!
