Flexible filament runout sensor

Model details

Platform
MakerWorld
Price
Free
License
CC-BY-SA
Print, modify and sell with credit; share remixes under the same license.
Formats
STL
  • 10 Likes
  • 15 Downloads
  • 0 Makes
  • 14 Collected
  • 0 Boosts
  • 0 Comments
  • 0 Views

Author:Clayton Merkle

Published

Download on MakerWorld

Description

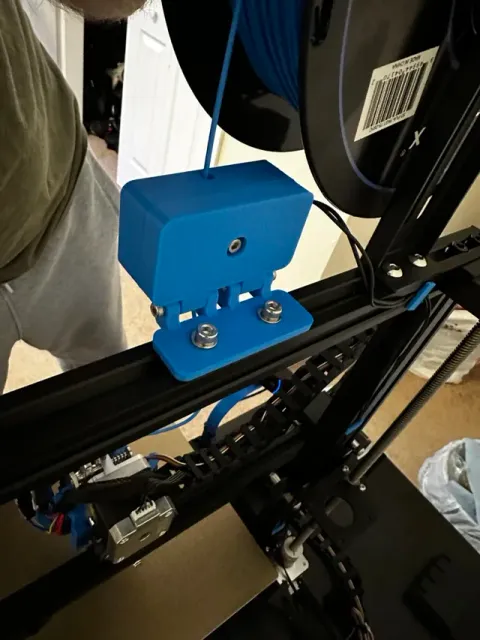

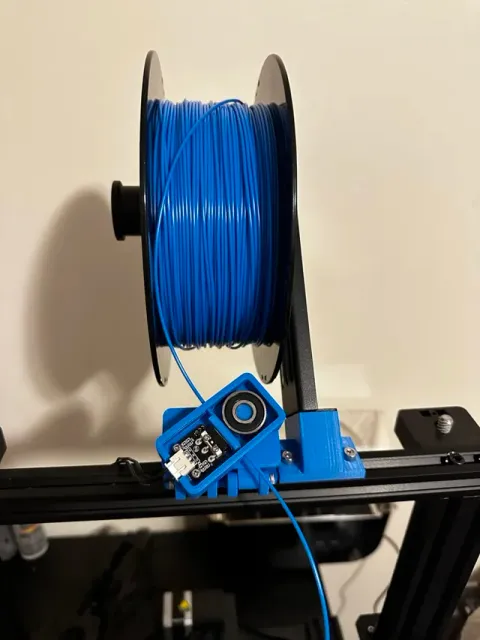

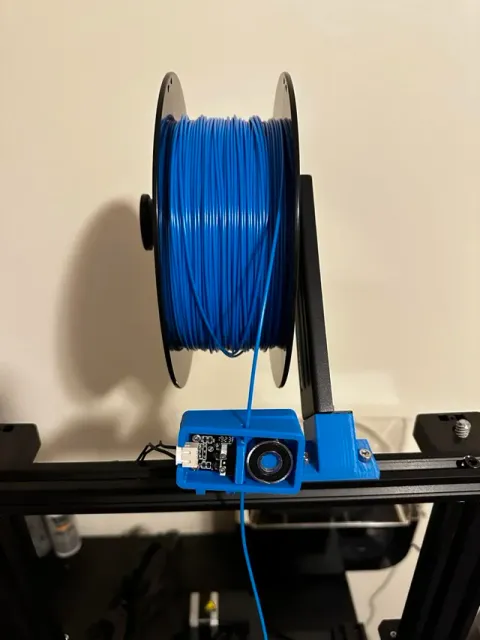

Remix of 3djpco's filament runout senso which uses a creality limit switch. I removed the original mounting tabs and added pivots to allow the sensor to rotate about the Y and Z axes so that the filament does not bind when the printhead travels to high values of X and Z.

I used M3 screws loosely threaded into the printed parts to act as the hinges and pivot, and M4 screws and T nuts to mount it to the top of the frame.

Print Settings

Printer Brand:

Creality

Printer:

Ender-3 v2

Rafts:

No

Supports:

No

Resolution:

.16

Infill:

30

Filament: Hatcbox PLA Blue

Category: 3D Printer Accessories

Tags

crealityfilamentrunoutsensender3thingiversecrealityender3runoutsensor
