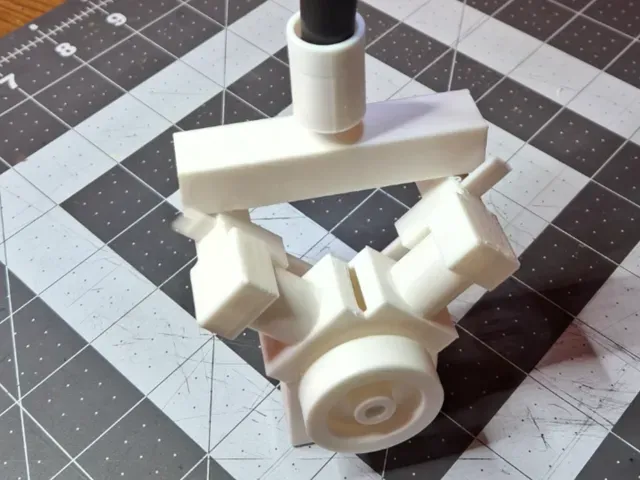

Bring smooth, watchable motion to your desk with this pneumatic V-twin air engine, designed for 3D printing and powered by compressed air. MK5 refines the running character of the design with a balanced crankshaft so the assembly turns more evenly and feels more satisfying to run and to show off.

It powers easily for demos: a balloon or an electric air duster is plenty for many tabletop runs; you can also use regulated low-pressure compressed air.

Whether you are building a display model, teaching how sliders and valves work, or expanding toward a larger multi-bank layout, this release is tuned for reliable assembly and a clear mechanical story.

What you get

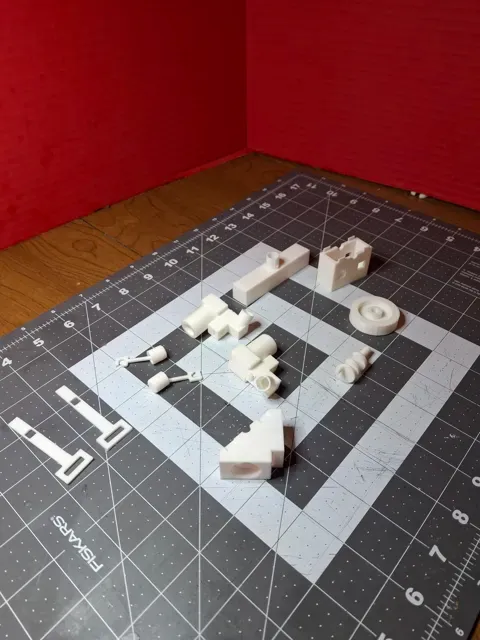

* A complete V-twin air engine package sized for typical FDM printers (e.g. compact beds like the Bambu A1 mini).

* MK5 updates include a balanced crankshaft for smoother rotation under air pressure.

* Modular options: the connecting wheel and base frame are optional—omit or swap them if you are planning a different layout (for example a future V4 build).

* Tuned proportions: piston rod geometry uses a controlled Z-scale (45.5%) so motion and clearance stay coherent in the printed mechanism.

* Lineage: evolved from earlier versions; MK4 used 15 mm bore cylinders at 70% scale—MK5 carries the lessons forward into this configuration.

Printing and assembly notes

* Use the supplied 3MF/plate layouts where provided; orient parts for strength along load directions (pins, rods, crank).

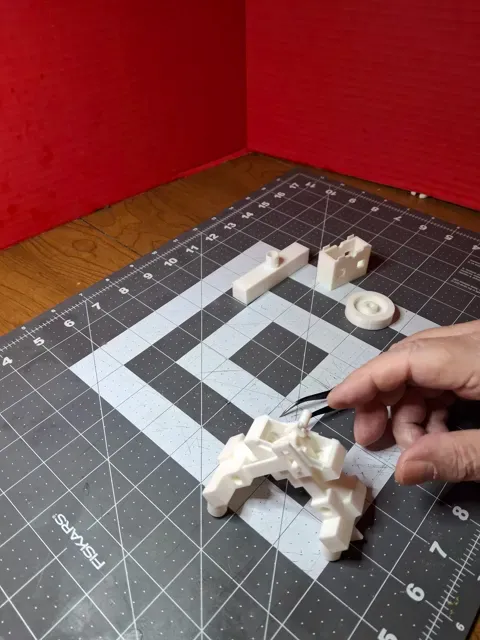

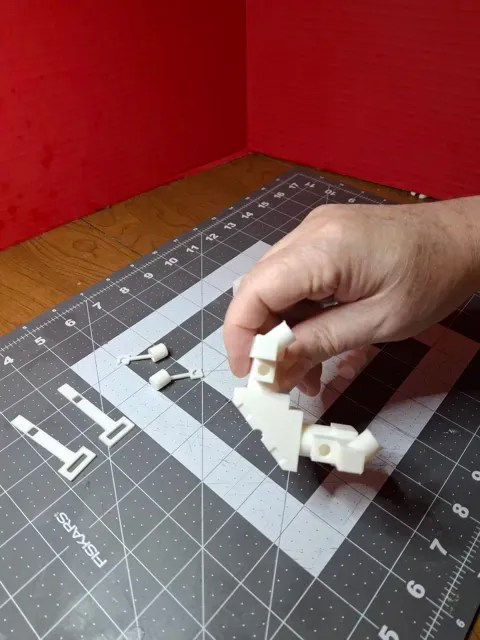

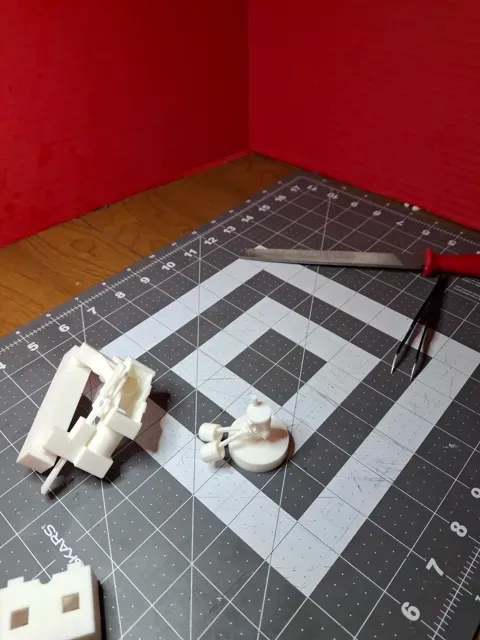

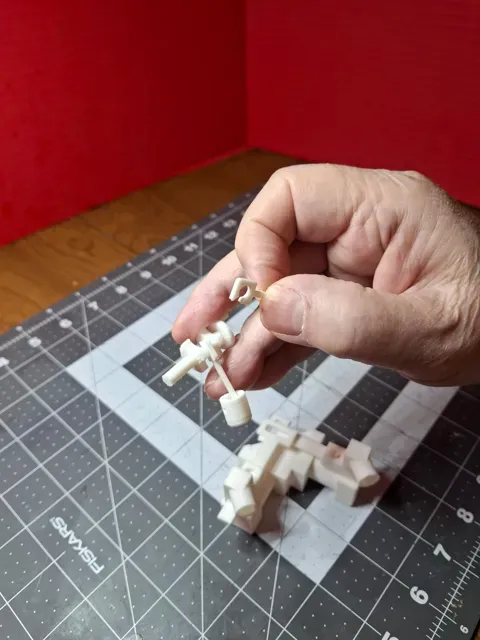

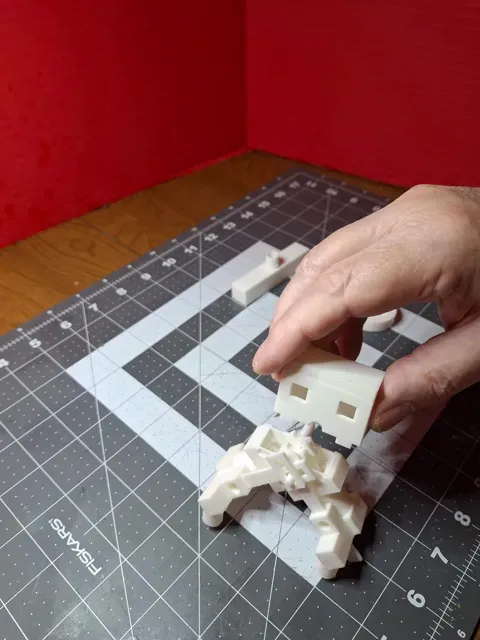

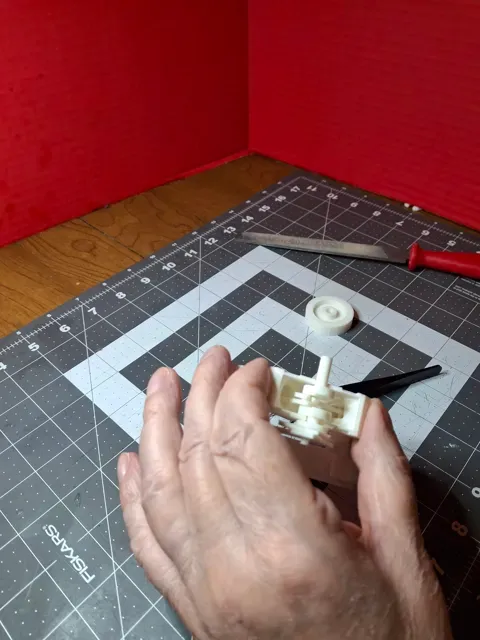

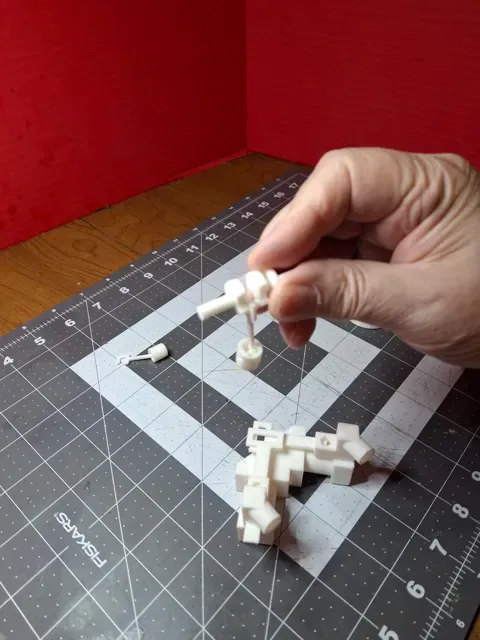

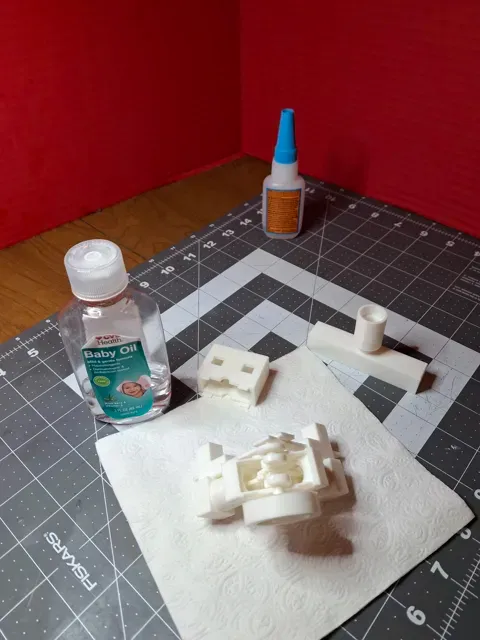

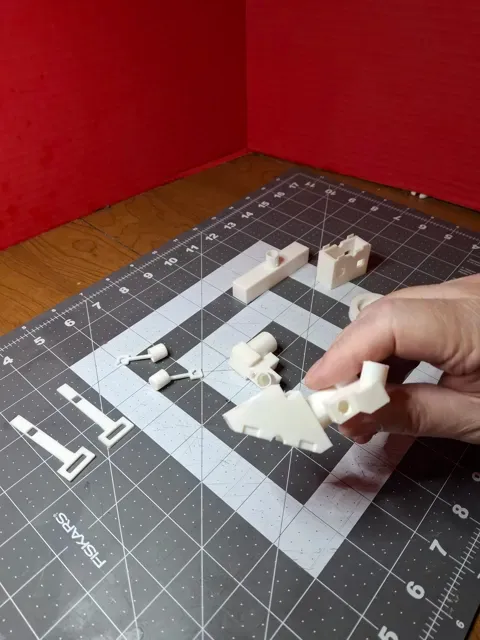

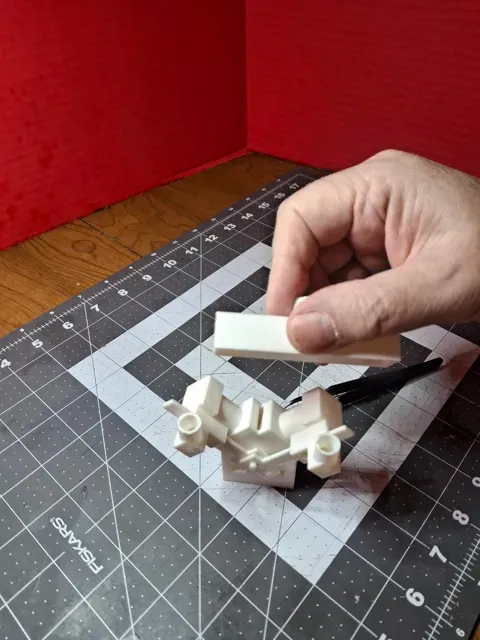

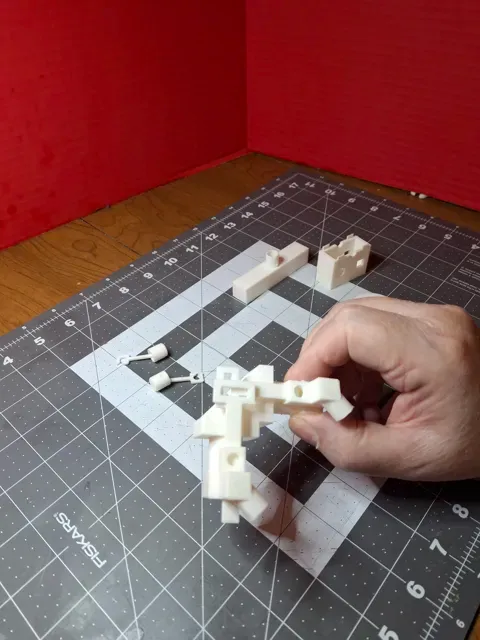

* Dry-fit before final assembly; light sanding or reaming may be needed depending on filament and slicer settings.

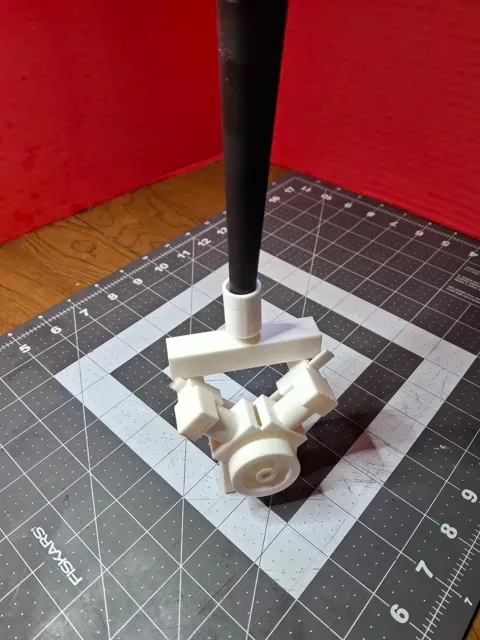

* For air source, a balloon or electric air duster is an easy fit; regulated compressed air works too. Start at modest pressure and increase only if motion is smooth and nothing binds.

Perfect for

* Makers who want a kinetic desk piece driven by air, not batteries.

* Anyone teaching or demonstrating valves, pistons, and crank timing in a compact V-twin layout.

* Builders thinking ahead to multi-bank engines thanks to optional frame and wheel parts.

Thank you for downloading. If you print and run it, ratings and make photos on MakerWorld help others find the model and know what to expect.
