Mini-Z Setup Board – Precision Alignment Plate
Mini-Z Setup Board – Precision Alignment Plate — Image 2 of 2
3D model · MakerWorld

Mini-Z Setup Board – Precision Alignment Plate

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
3MFSTL
  • 14 Likes
  • 26 Downloads
  • 9 Makes
  • 26 Collected
  • 0 Boosts
  • 1 Comments
  • 0 Views

Author:iolibe

Published

Download on MakerWorld

Description

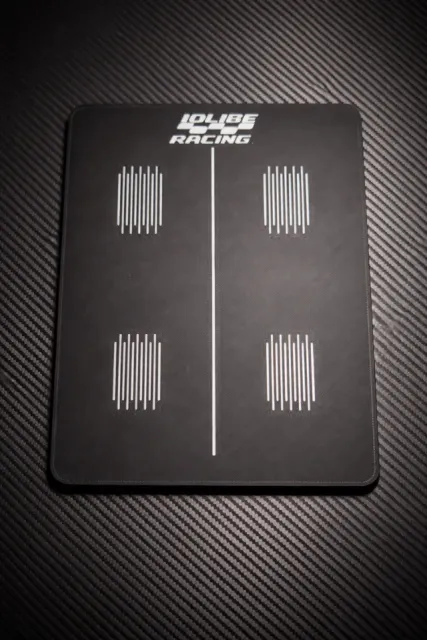

Setup board designed specifically for Mini-Z models (1/28 scale), ideal for achieving precise and repeatable setup adjustments.

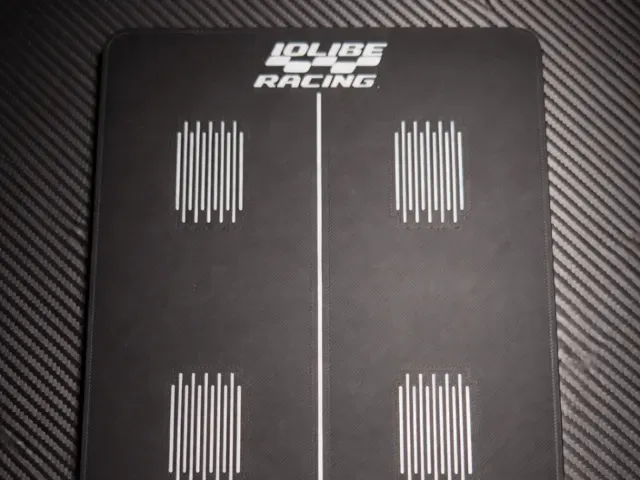

The surface features alignment guides that help you quickly check wheel symmetry, toe, and overall chassis alignment with consistency and accuracy.

Compact and lightweight, it’s perfect to bring to the track, while maintaining enough rigidity for reliable measurements.

Branded AIOLIBE Racing version.

⚙️ Features

- Compatible with all 1/28 Models MINI Z - Precision alignment guides - Compact and portable design - Smooth surface for accurate setup checks - Easy to print in PLA 🖨️ Recommended Print Settings

- Material: PLA (recommended) / PETG - Layer height: 0.2 mm - Infill: 20–40% - Walls: 3 perimeters - Top/Bottom layers: 4–5 - Supports: NOT required - Orientation: flat on the bed 👉 For extra rigidity: increase infill or use PLA+

🏁 Usage

Place the car on the board and use the guides to:

- check wheel alignment - verify toe settings - maintain consistent setup between runs

Guides and print profiles

Print profiles and steps

0.16mm layer, 2 walls, 15% infill
