Parametric Universal Pipe Adapter / Reducer
MakerWorld
3D model · MakerWorld

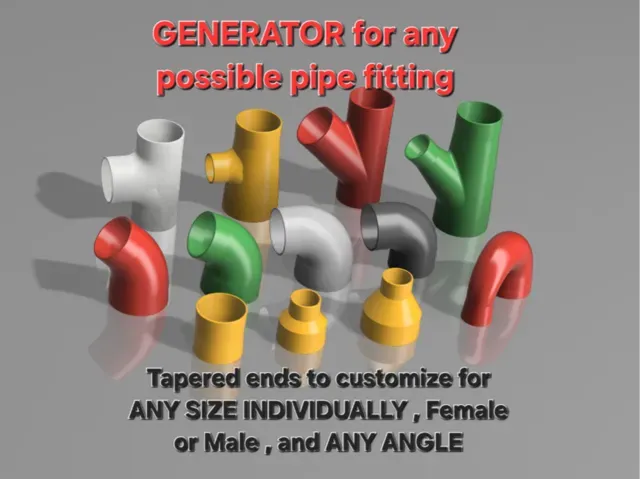

GENERATOR for Pipe, tube, hose fitting ( tapered )
Model details
- Platform
MakerWorld
- Price
- Free
- License
- CC-BY-NC-SA
- Non-commercial use only, with credit; share remixes under the same license.
- Formats
- STEPF3D
- 1 211 Likes
- 2 099 Downloads
- 952 Makes
- 5 618 Collected
- 37 Boosts
- 39 Comments
- 0 Views
Description
Tired of all the milion fixed models online for pipe and hose fittings, that either fit too loose or too tight, or my pipe is not exact same exact diameter pipe like the designer used, or my filament shrinks different…. In Europe at least, there are many pipe manufacturers, some make them 0.2 to 0.3mm smaller, others make them inconsistent….so, i decided to make everything parametric, to be able to customize anything, SO THEY FIT EVERY TIME FROM FIRST TRY !!! Just measure your actual pipe ID and OD and start customizing and tapering.

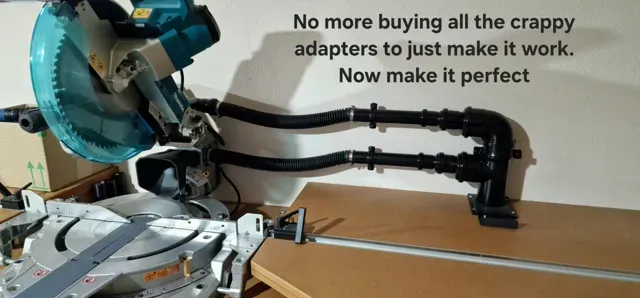

The most important part of this generator, is not what you can allready buy from hardware store, but what you will never find to buy or you pay way too much for them (for example we have in Europe the Axminster company and many more others, that sells fittings for vacuum pipes to equip for dust collection in workshops, and they charge an arm and a leg, because you will not find elsewhere for ex 63mm fittings for dust pipes).
The 63mm pipes can be found in 2.5 meter length in hardware stores (for water roof drainage, grey, brown) cheap enough and great quality, but the accesories are too expensive and they produce only 90degree elbows and 67 deg, and some straight conectors. Also same thing with DN75 or DN110 drain pipe that can be used instead in a workshop for dust collection, why waste all that time to strugle with rubber sealings, and connections hard to undo, when you can have all the part you need printed how you need, and only buy the pipes and cut the sealing part and make all your adaptors with female ends. No headache.
I designed everything here to be fully customizable in Maker World panel, and all the help you might need, you'll find it when you change parameters, and also in pictures. Don't hesitate to ask me anything if you struggle.
Related to theese fittings, check my other post with brace pipe clamps in case you also need a way to fix them to a wall or furniture : https://makerworld.com/en/models/1781504-brace-pvc-pipe-clamps-with-hinge-dn50-63mm-etc#profileId-1897779
or
https://makerworld.com/en/models/2653377-tapered-caps-for-pipes-screw-lid-customizable#profileId-2933706
or my new customizable swivelling/antitangle hose adapters here:
https://makerworld.com/en/models/2699007-custom-vacuum-hose-adapter-antitangle-swivelling#profileId-2991788
Guides and print profiles
Print profiles and steps

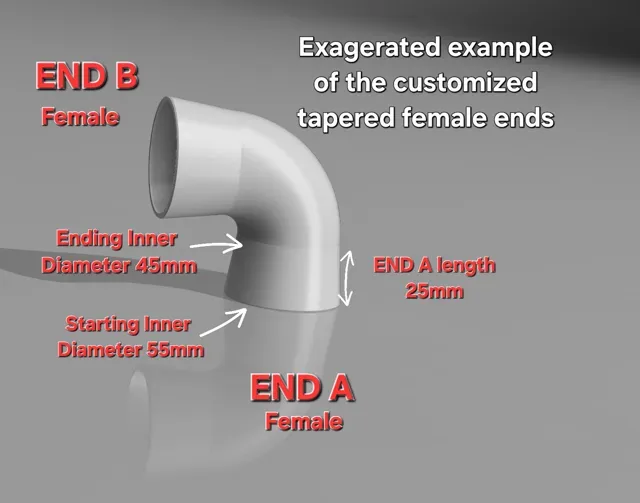

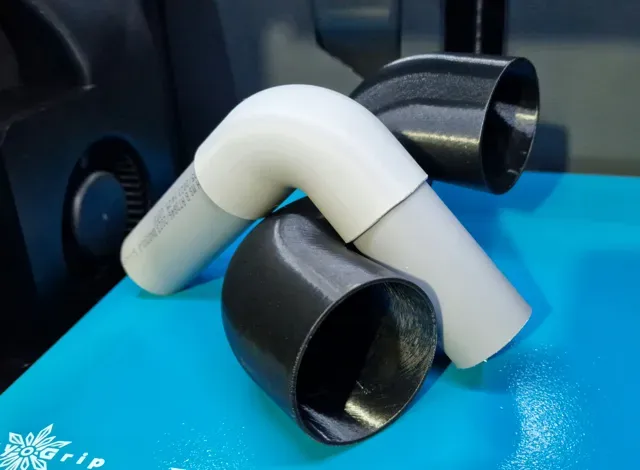

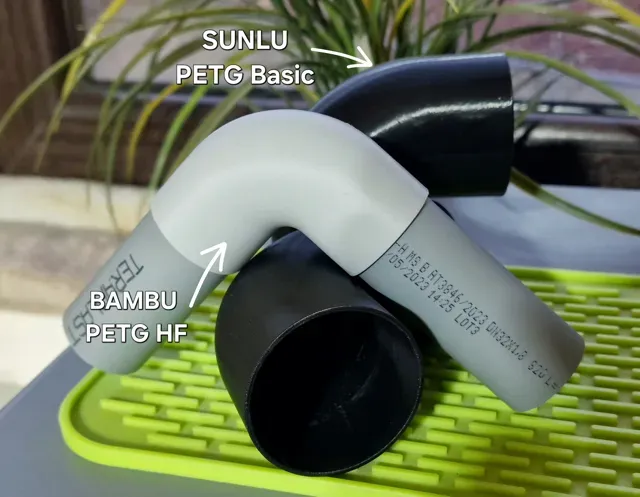

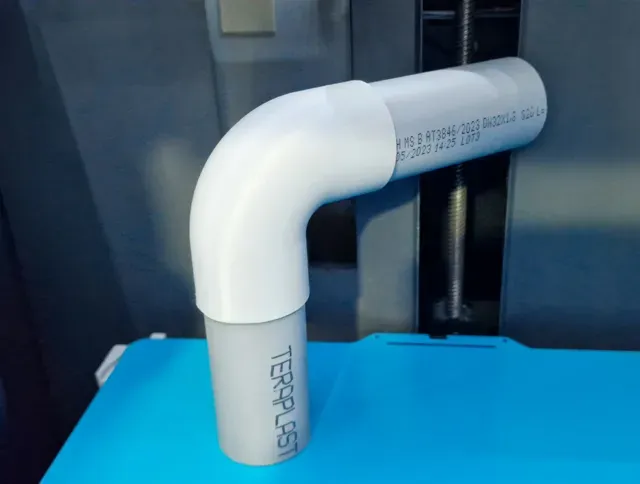

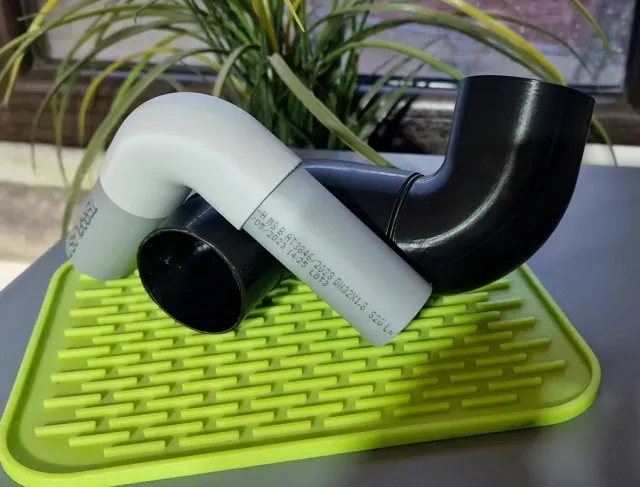

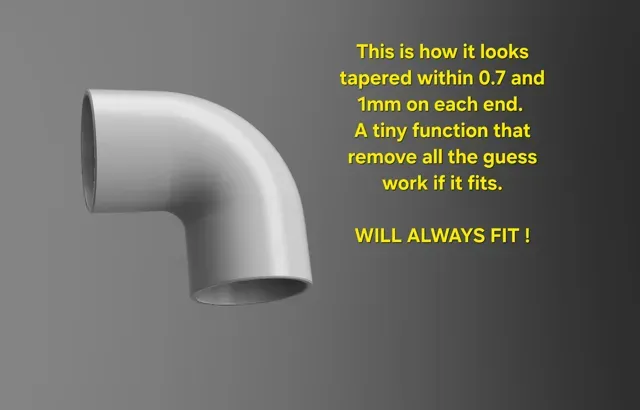

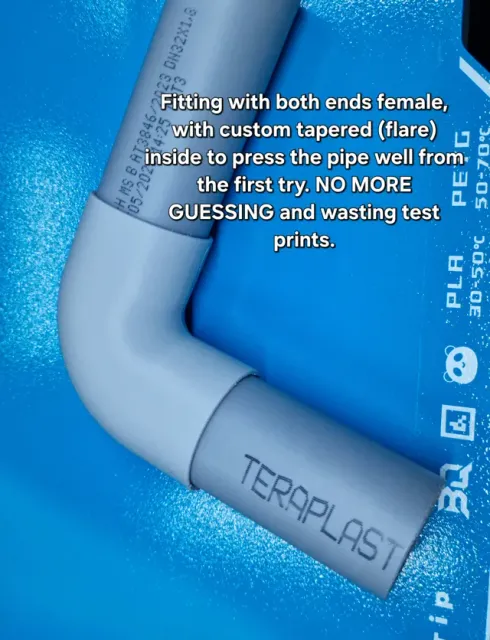

DN32 Example for 90 degree elbow and coupler (test prints) This adapters here are Female to Female 90 deg elbow and 0 deg (coupler). My pipe outer diameter was 31.8 - 31.9mm so i customized from 32.20 down to 31.20 for a length of 25 mm. The walls are 2mm and the adapter fits perfect when is tapered. I can force push it in place.
DO YOUR OWN CUSTOMIZATION in the panel here for any adapter. More details ( maybe too many ) you'll find when you customize each individual hole end.

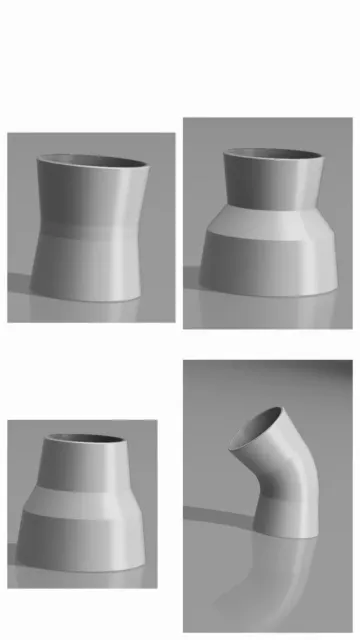

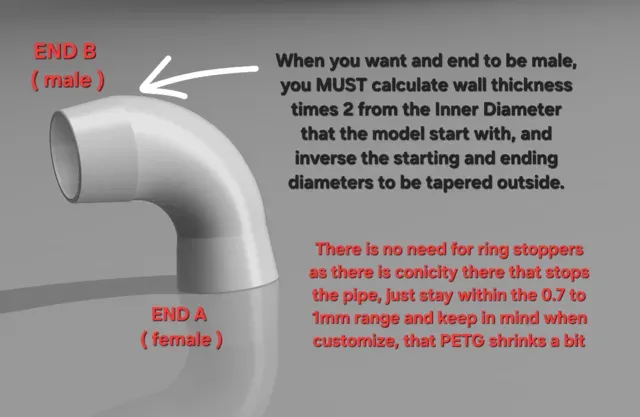

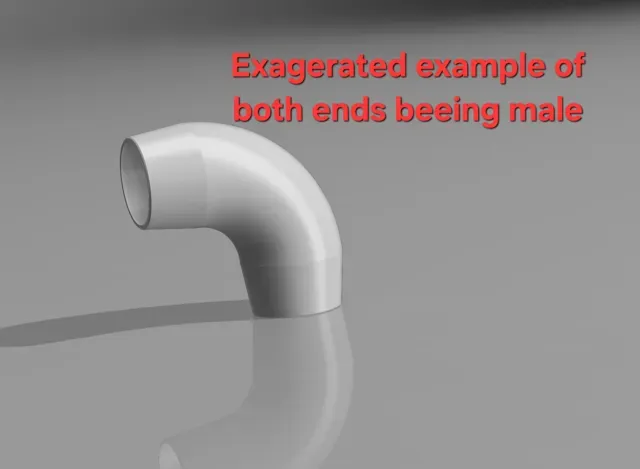

Make it for yourself any degree, male or female combined or all the same, straight coupling for pipes and hoses adapter, reducer, U shape …anything…you name it !
Print as i did it in that position for the best look and layer adhesion. PETG is recommended but PLA will be fine for small work as the tapered will make it easy fit and no need for force.

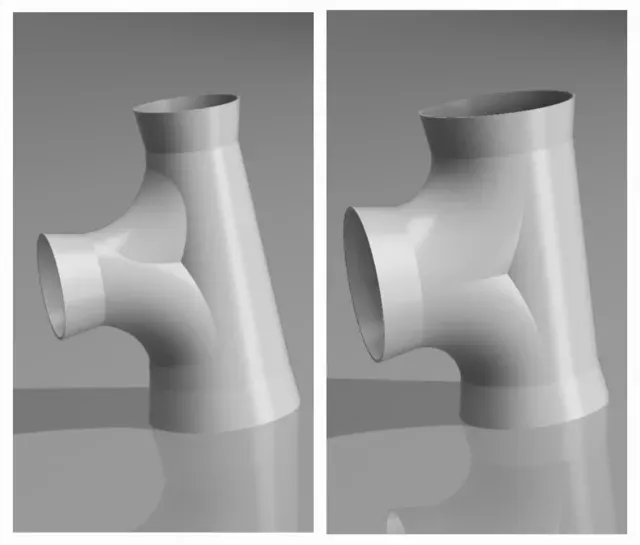

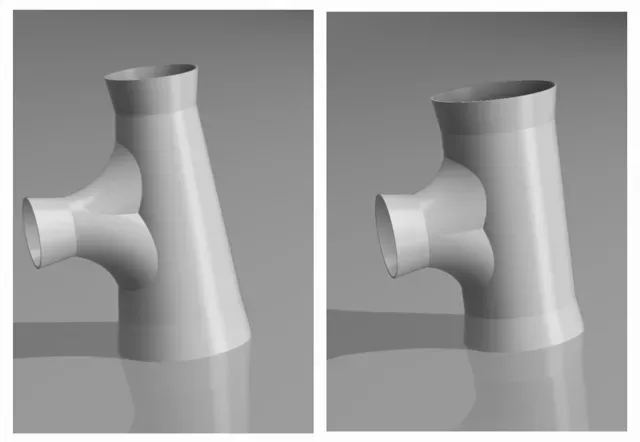

DN32 Example for T fitting ( test print ) This adapter is Female to all 3 ends. My pipe outer diameter was 31.8 - 31.9 so i customized from 32.20 down to 31.20 for a length of 25 mm. The walls are 2mm and the adapter fits perfect when is tapered. I can force push it in place.
DO YOUR OWN CUSTOMIZATION in the panel here for any adapter. More details ( maybe too many ) you'll find when you customize each individual hole end.
Make it for yourself any diameter, male or female combined, or all the same, longer, shorter…you name it !
Print as i did it in that position for the best look and layer adhesion. PETG is recommended but PLA will be fine for small work as the tapered will make it easy fit and no need for force.

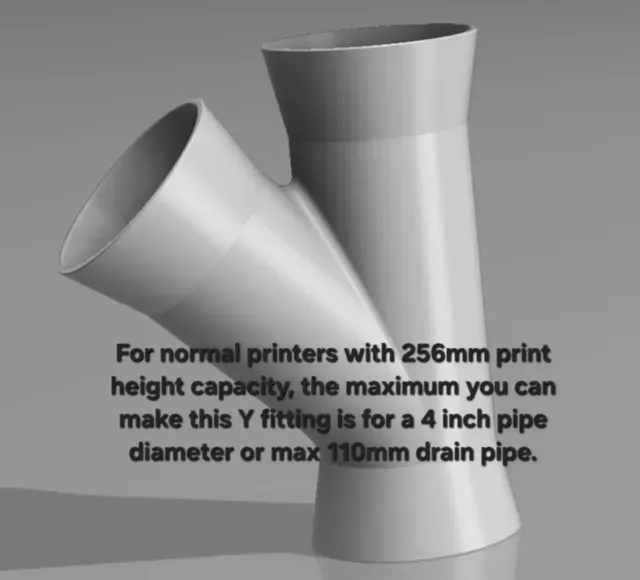

DN32 Example for Y fitting (test print) This adapter is Female to all 3 ends. My pipe outer diameter was 31.8 - 31.9 so i customized from 32.20 down to 31.20 for a length of 25 mm. The walls are 2mm and the adapter fits perfect when is tapered.
DO YOUR OWN CUSTOMIZATION in the panel here for any adapter. More details ( maybe too many ) you'll find when you customize each individual hole end.
Make it for yourself any diameter, male or female combined, or all the same, longer, shorter…you name it !

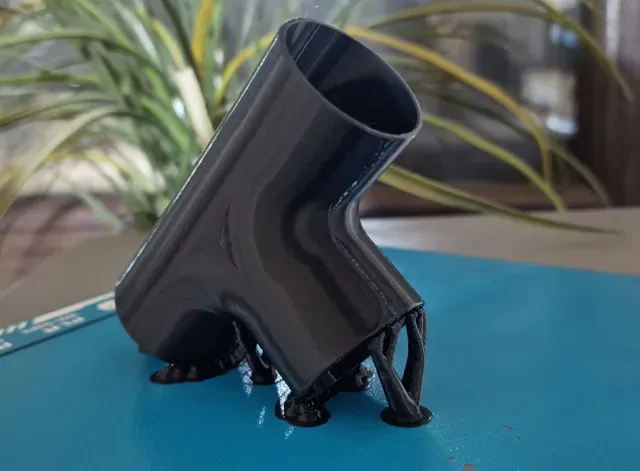

Print normal with no supports, just some brim or mouse ears. PETG is recommended but PLA will be fine for small work as the tapered will make it easy fit and no need for force. I didn't print it yet so i added a real picture with a T one. Imagine it the same look.

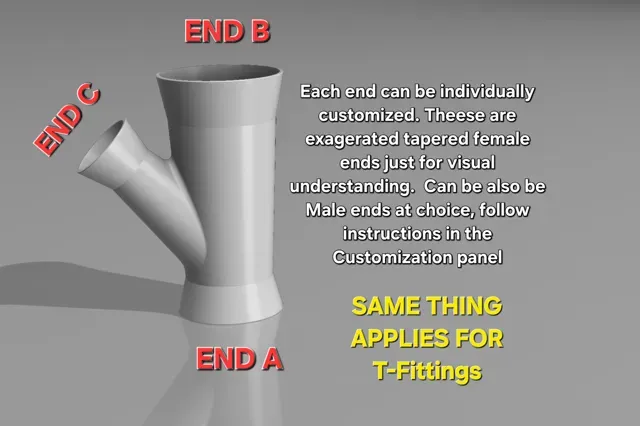

DN32 Example for Y SPECIAL fitting (test print) It's a special unique type of fitting that allows you to have 2 pipes exiting very close to eachother, even like 2mm apart if you pay attention in the customization panel (works for almost any pipe diameter as well with some specific transition lengths you customize).
This adapter posted is Female to all 3 ends. My pipe outer diameter was 31.8 - 31.9 so i customized from 32.20 down to 31.20 for a length of 25 mm. The walls are 2mm and the adapter fits perfect when is tapered. Transition length is 43mm and spacing between ends is 5mm. Between pipes will be 9mm ( this 5 + the wall thicknesses 4mm )).
DO YOUR OWN CUSTOMIZATION in the panel here for any adapter. More details ( maybe too many ) you'll find when you customize each individual hole end.
Make it for yourself any diameter, male or female combined, or all the same, longer, shorter…you name it !
Print normal with no supports, just some brim or mouse ears. PETG is recommended but PLA will be fine for small work as the tapered will make it easy fit and no need for force. I didn't print it yet so i added a real picture with a T one. Imagine it the same look.
