Description

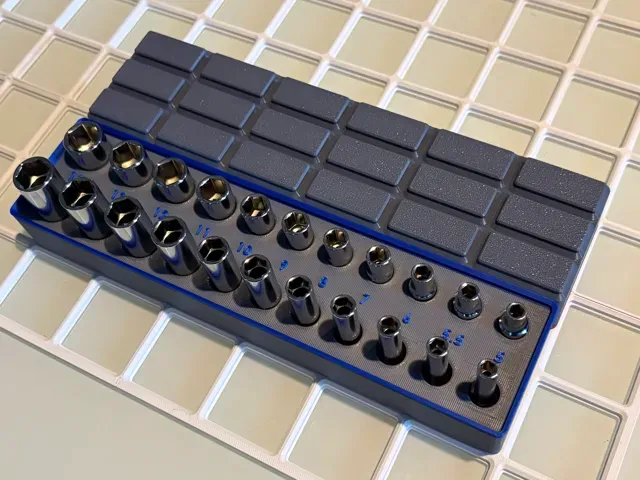

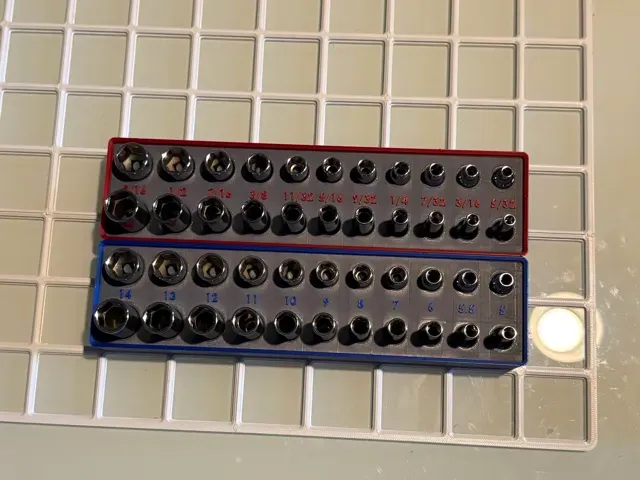

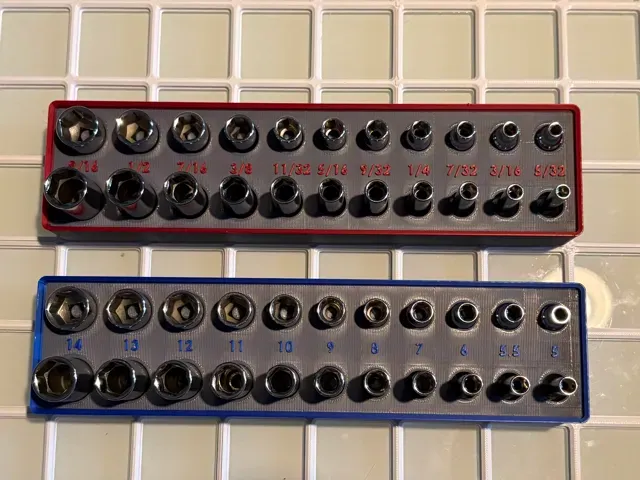

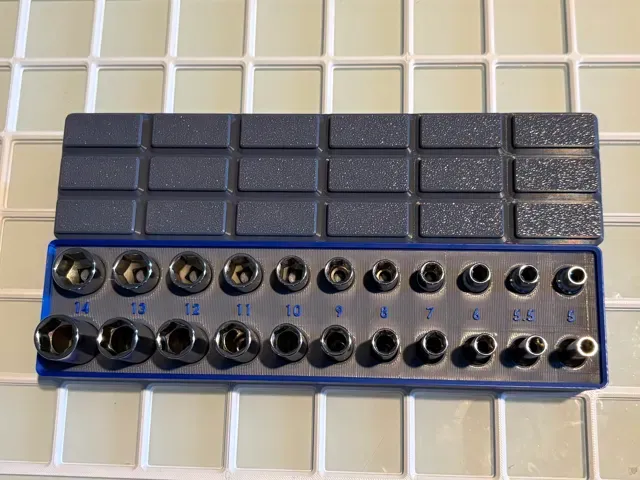

Here is the second version of the Icon ¼" Socket Gridfinity bins.  I tried something new and made the bins half-width but full length so both bins together can fit into 3X6 grids, or separately they will take up 1.5X6.  These are both SAE and Metric in one file, two plates for both shallow and deep sockets.

Here are the other versions if anyone prefers:

Single Bin (3X6):

https://makerworld.com/en/models/2643641-icon-1-4-drive-sae-metric-socket-gridfinity-bin#profileId-2921377

Full Width Bins (2X6):

https://makerworld.com/en/models/2651182-icon-1-4-sae-metric-socket-2x6-gridfinity-bins#profileId-2931048

Foam Insert Kit:

https://makerworld.com/en/models/2066437-icon-1-4-ratchet-service-kit-gridfinity-bin#profileId-2231555

I will link the 2X6 versions when they finish printing.

Sockets they fit:

https://www.harborfreight.com/14-in-drive-sae-professional-shallow-socket-set-11-piece-57957.html

https://www.harborfreight.com/14-in-drive-metric-professional-shallow-socket-set-11-piece-58100.html

https://www.harborfreight.com/14-in-drive-sae-professional-deep-socket-set-11-piece-58101.html

https://www.harborfreight.com/14-in-drive-metric-professional-deep-socket-set-11-piece-58102.html

https://www.harborfreight.com/14-in-drive-sae-and-metric-modular-general-service-socket-set-48-piece-70311.html

Guides and print profiles

Print profiles and steps

0.2mm layer, 2 walls, 15% infill
