SV08 Max Enclosure Lid Holder + Accessory Mount

Sovol SV08 Max Lid Holder + Optional Accessory Bin Mount

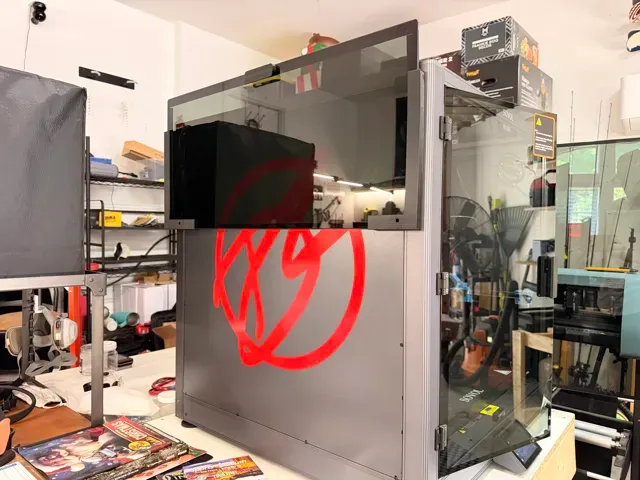

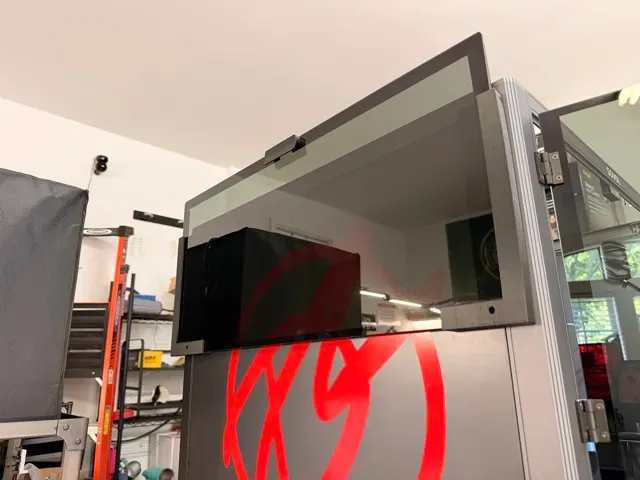

All the models I could find to hold the top lid for the SV08 Max were integrated into tophat extensions—something I personally didn't want to install. I just wanted a simple, low-profile spot to store my glass lid when printing filaments like PETG and PLA+.

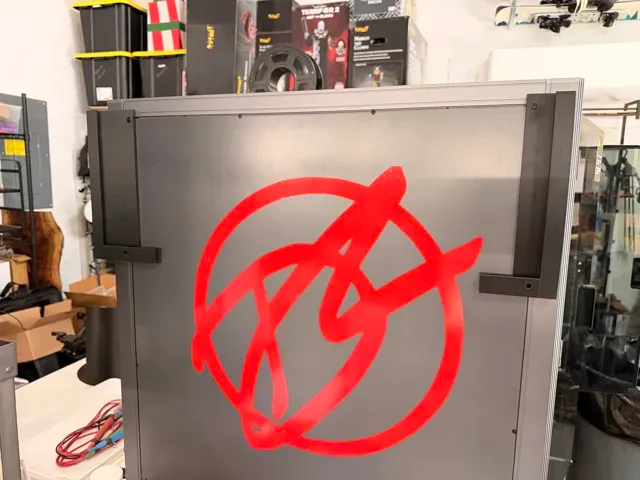

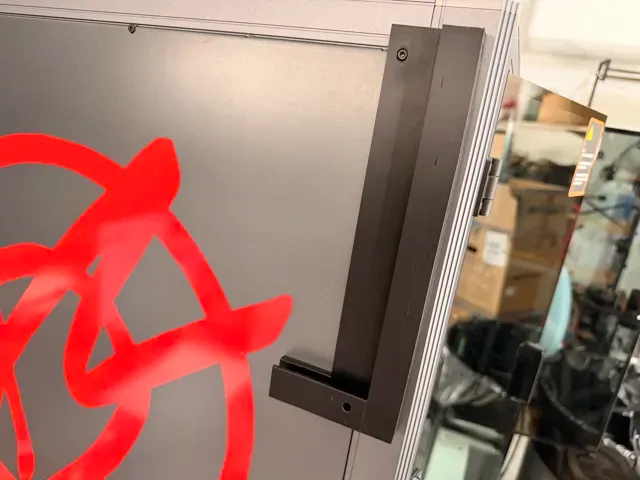

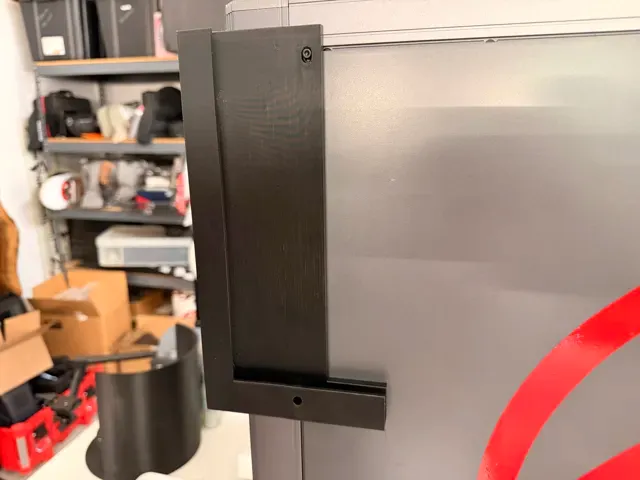

This design uses two existing factory screw holes on the front and back of the machine (left side). It’s simple, effective, and does exactly what it needs to do.

🛠 Hardware Required

While this uses existing factory mounting points, the thickness of the brackets means you cannot reuse the stock screws.

- Screws: You will need (4) M3 x 10mm screws to replace the factory ones, 2 in each mount. 🖨 Recommended Print Settings

IMPORTANT: I highly recommend using the provided print profiles .

- I have manually added internal modifiers to specific areas of each model to increase strength where it's needed most without wasting filament on 100% infill for the entire part. - If you choose to slice it yourself, please ensure you add extra walls or modifiers around the mounting points and the lid-rest area. 🚀 Key Features

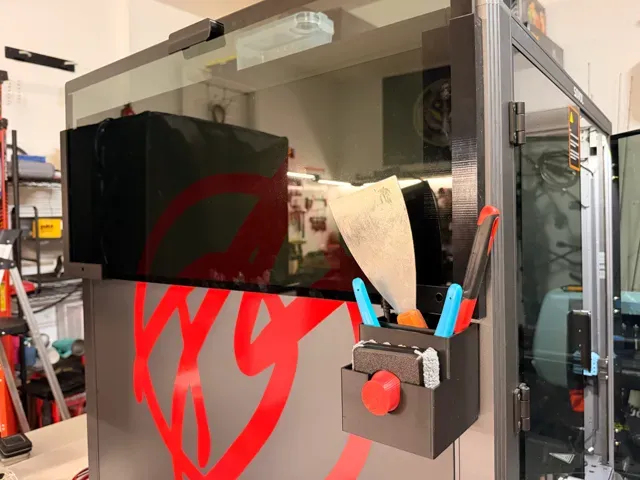

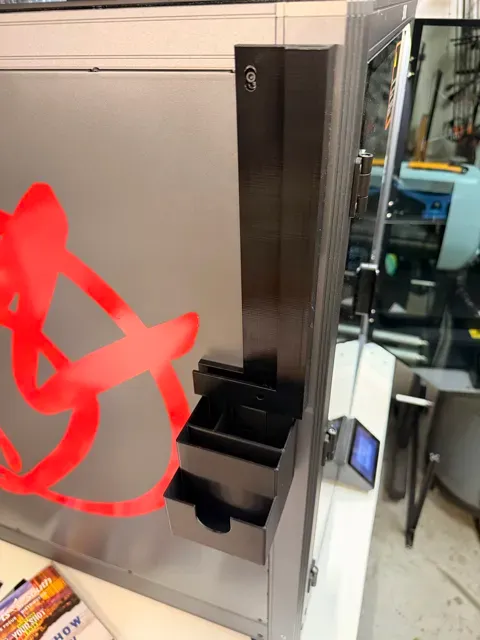

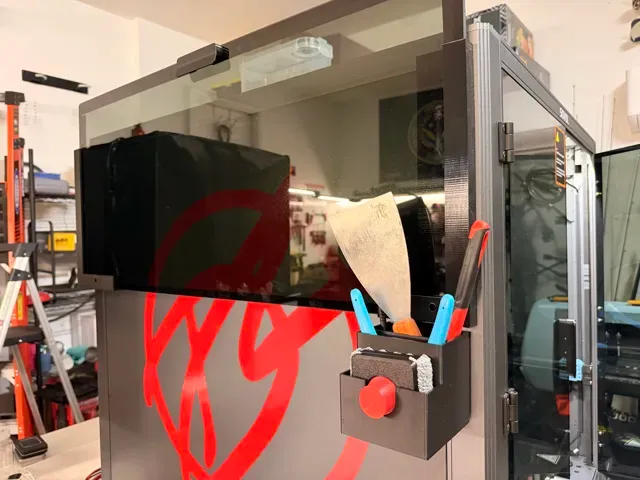

- Tophat-Free: No enclosure extensions required. - Mirrored Mounting: Designed for the left side of the SV08 Max. If you prefer it on the right, simply mirror the models in your slicer. - Modular Bin Mount: Includes an optional mount for the front bracket to attach a tool bin. - Build Plate Cleaner: Model I used in my Bin design. >HERE< - Open for Customization: I’ve included my personal tool bin, but feel free to use the mounting interface to design your own accessories! ⚖ Copyright & Remixing

This model is protected by copyright.

- Remixes: I love seeing improvements! Feel free to remix this model to better suit your needs. - Restriction: Per the license, any remixes must be posted on MakerWorld .
