Description

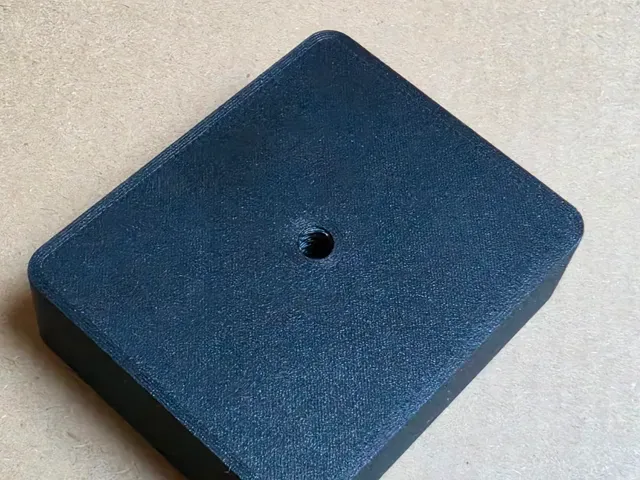

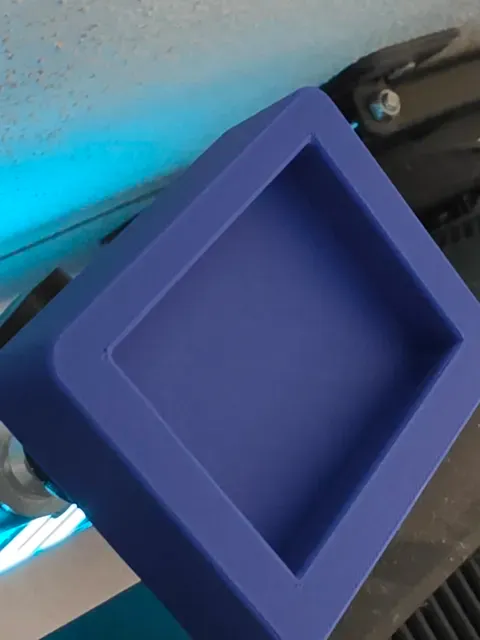

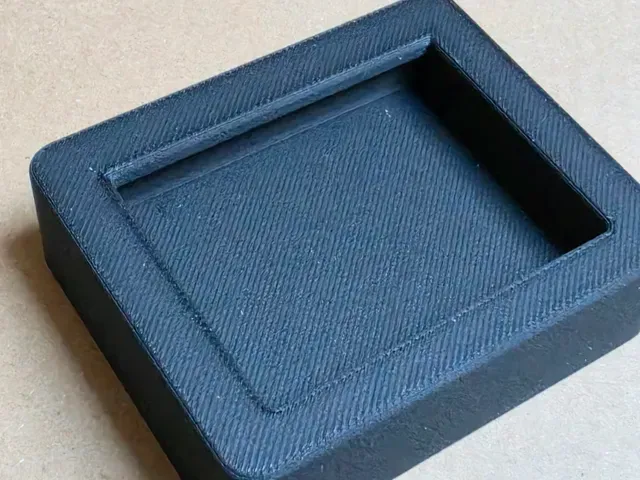

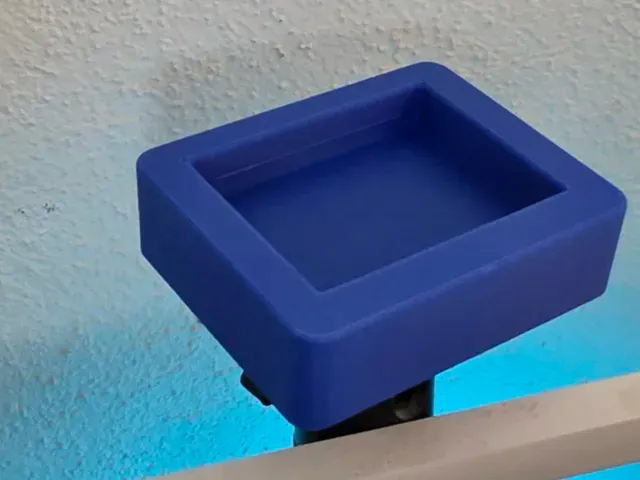

Manfrotto 200PL to 1/4" Thread Adapter Mount

This is a simple, robust mount designed to adapt a Manfrotto 200PL Quick Release Plate to any standard 1/4"-20 bolt . It is perfect for DIY camera rigs, custom tripods, or mounting your camera gear to non-standard surfaces.

Features

- Perfect Fit: Designed specifically for the geometry of the Manfrotto 200PL system. - Integrated Thread: Features a central hole sized for a 1/4" bolt... providing a secure connection for your photography or video gear. - Low Profile: Compact design to keep your center of gravity low and stable. Recommended Print Settings

To ensure the mount is strong enough for camera equipment, I recommend the following:

- Material: PETG or ASA (for better strength and UV resistance if used outdoors). PLA works for light setups but may be brittle under high tension. - Wall Loops: 4–6 loops for maximum structural integrity around the thread. - Infill: 40% or higher (Gyroid or Cubic recommended). - Top/Bottom Layers: 4–5 layers to ensure a flat, solid mounting surface.

Guides and print profiles

Print profiles and steps

0.2mm layer, 4 walls, 15% infill
