Modular Wrench Organizers (Magnetic)

Model details

Platform
MakerWorld
Price
Free
License
see the platform page
The author sets the terms — check them on the model page before printing for sale.
Formats
3MFSTL
  • 47 Likes
  • 67 Downloads
  • 32 Makes
  • 255 Collected
  • 2 Boosts
  • 2 Comments
  • 0 Views

Author:Crazyben13

Published

Download on MakerWorld

Description

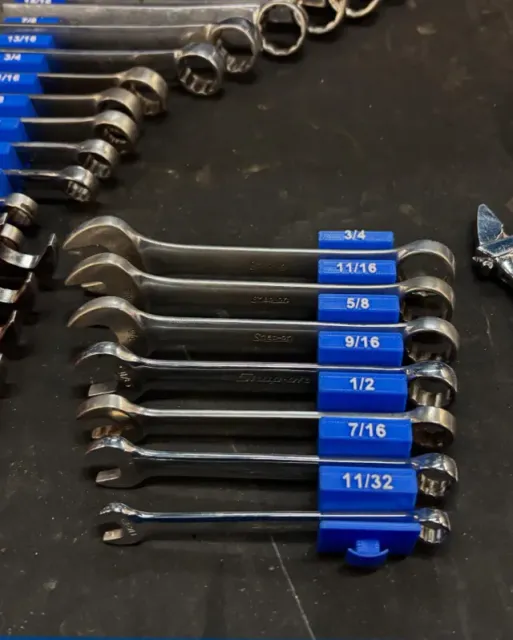

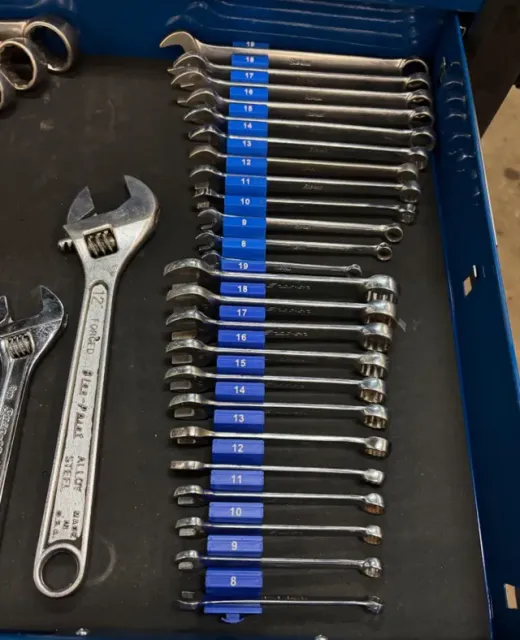

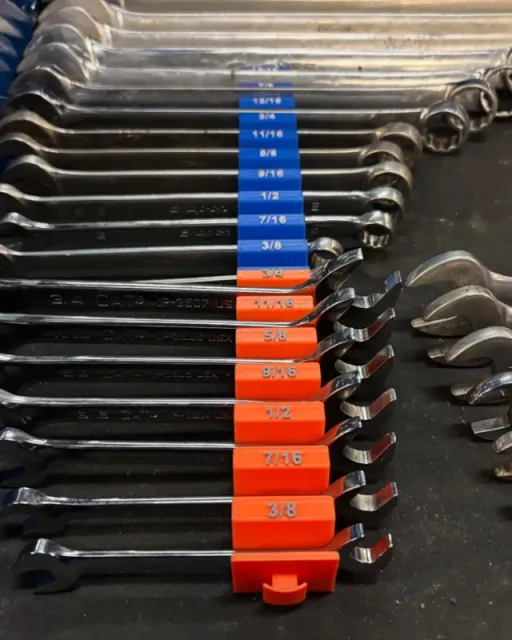

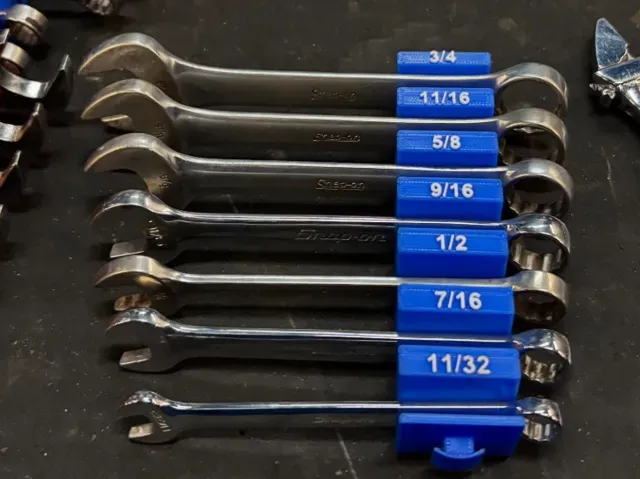

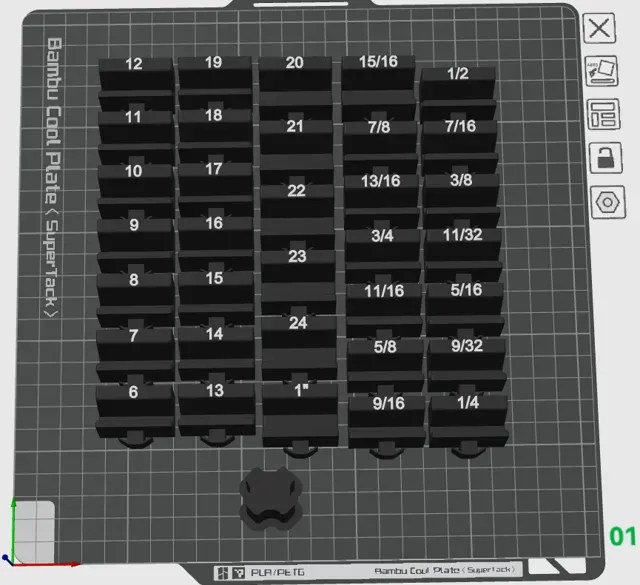

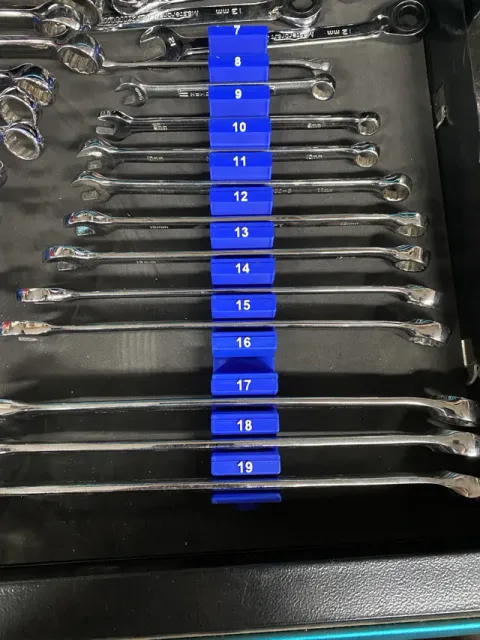

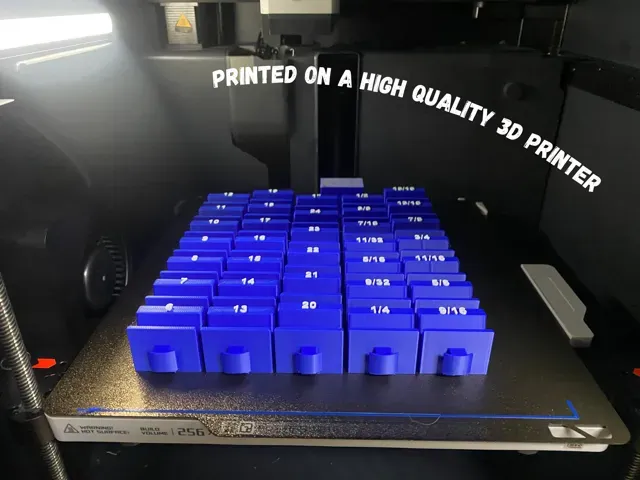

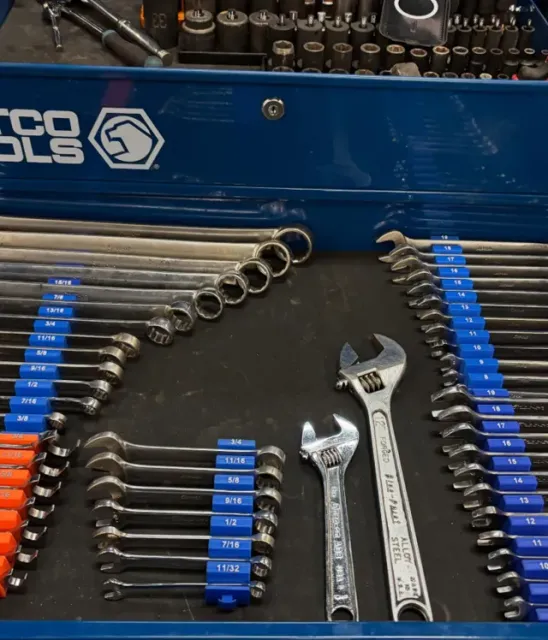

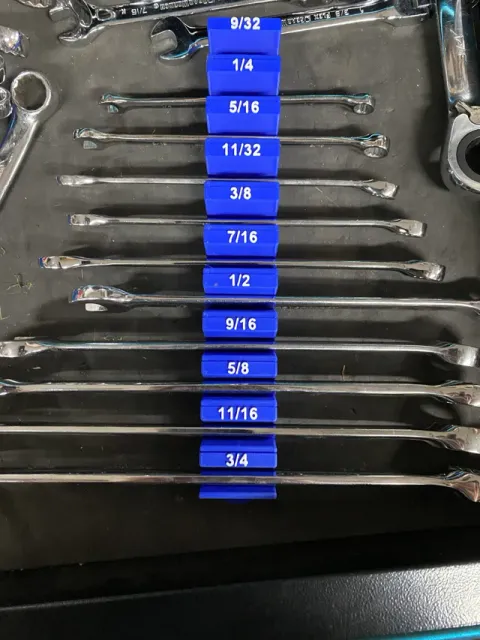

I designed these 3D printed wrench organizers to keep my toolbox organized and tidy. The organizers clip into each other while their magnets hold the organizers to the toolbox. The print has a pause at layer 17 (3.4mm) to add the magnets. That way, the magnets are imbedded inside the print so no glue is needed. The magnets used are 1/4 (W) by 1/8 (h) n52 magnets. The set includes sizes from 6mm to 24mm and 1/4" to 1". Here is a link to the magnets : https://www.amazon.ca/AplysiaTech-N52-1-Neodymium-Scientific-0-25x0-125/dp/B0DGFYDDFJ?pd_rd_w=4Udy2&content-id=amzn1.sym.e23fb67d-047d-4fb5-9ea3-fb66431ac3e7&pf_rd_p=e23fb67d-047d-4fb5-9ea3-fb66431ac3e7&pf_rd_r=SRXG2SXB0SZZHGM8HYT8&pd_rd_wg=H4Lu7&pd_rd_r=f31b7ba5-65b5-4df8-978a-1f88aef8b651&pd_rd_i=B0DGFYDDFJ&psc=1&ref_=pd_bap_d_grid_rp_hxwhrp_sspa_dk_bia_0_4_t

Guides and print profiles

Print profiles and steps

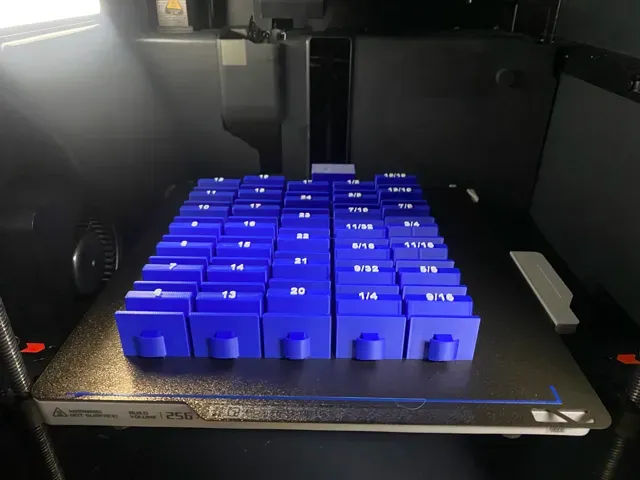

0.2mm layer, 2 walls, 15% infill 0.2mm height, 15% infill, 2 walls. Print pause at layer 17 (3.4mm) for magnets

Tags

wrench organizerwrench holderspanner organizerspanner holdercombination wrench holderopen end wrench organizerbox end wrench holdermetric wrench organizersae wrench organizerwrench rackwrench storagewrench traymagnetic organizermagnetic tool holdermagnetic mountmagnet baseneodymium magnetmodular organizermodular tool systemmodular storagestackableexpandableexpandable systeminterlockingsnap togetherclick fittile systemtoolbox organizertool drawer organizergarage organizationworkshop organizermechanic setupautomotive toolsshop storagewall mounted organizersize labeledengraved sizesquick accessanti slipsecure holdcompact storagespace savingscalable systembambu labdiy tools3d printno supportsfunctional printparametrictool organization
